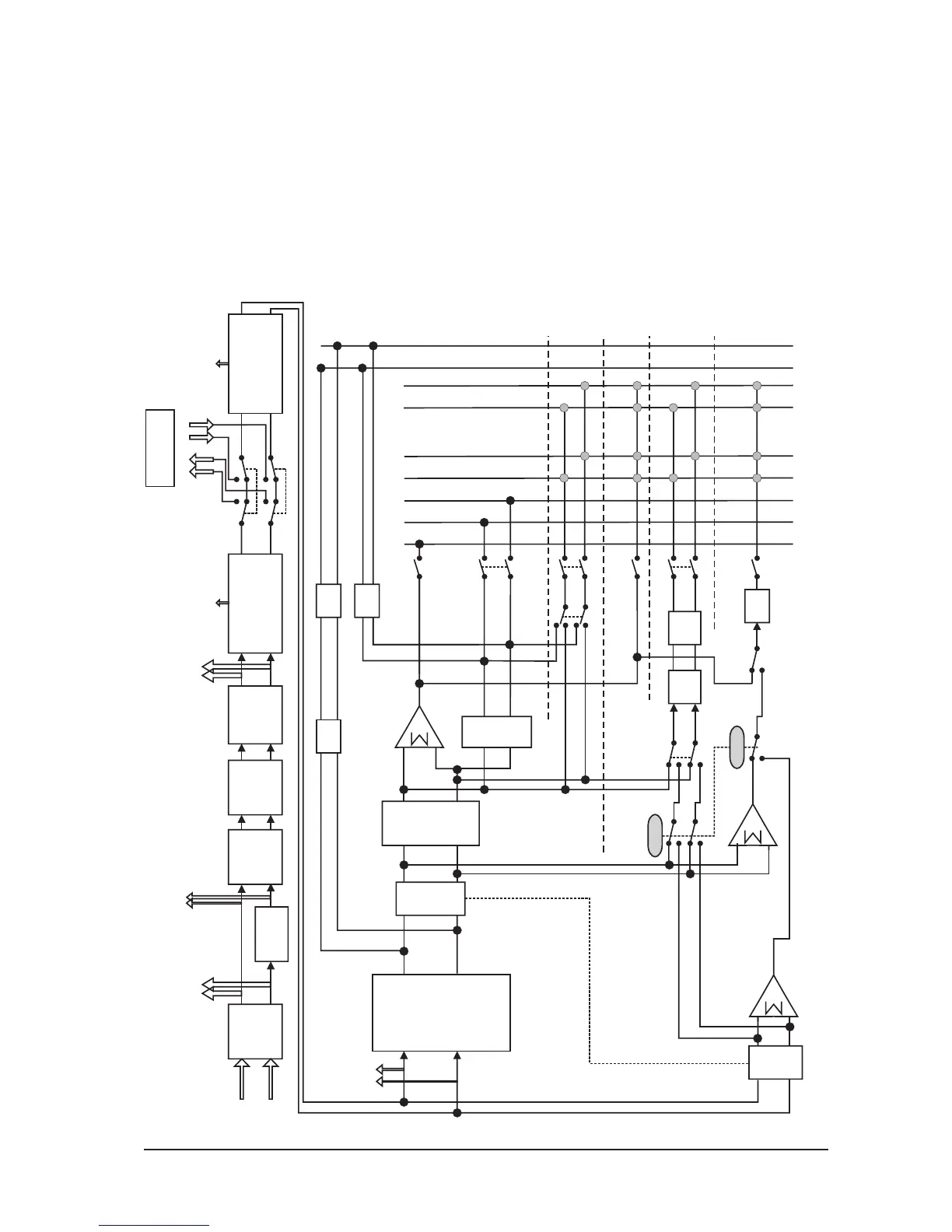

STEREO LINE INPUTS
There are 4 Stereo Line inputs. The inputs are via 4 pairs of TRS jacks which are located on the master rear
connector panel. By default these channels are mapped to faders 25 to 28 on bank D.
The controls and routing available are similar to those of the Mono Input Channels.
-3dB
-3dB
-3dB
Left balance is routed to odd-numbered bus
Right balance is routed to even-numbered bus
PRE Source
Note: thePre Source is controlled
by the Output Bus setting
BTG
12 24.......23
Stereo Group Mode
Left balance is routed to odd-numbered bus
Right balance is routed to even-numbered bus
Mono Group Mode
Solo RSolo L
From ADC L Channel
Metering (Pre)
Direct O/P
Source 1
Gain
Phase
Invert
In/Out
Delay
High-pass
Filter
Low-pass
Filter
Gate
Threshold
Attack
Hold
Release
Depth
To Assignable
InsertPatching
To DACs From ADCs
Comp
Threshold
Ratio
Attack
Release
Gain
Gain Reduction
Indicator
Gate Metering
PFL
Solo
AFL
Solo
LCR
Main Mix Group/Aux
BAL
FADERMUTE
EQ
LF Freq
LF Gain
LF Q/Slope
LF Shape
LM Freq
LM Gain
LM Q
HM Freq
HM Gain
HM Q
HF Freq
HF Gain
HF Q/Slope
HF Shape
Metering
(Post)
Mix
C
ON ON
Mono Aux Mode
&
Mono Lexicon Mode
Stereo Aux Mode
&
Stereo Lexicon Mode
ON
Aux
Level
Aux
Level
Aux
Bal
PRE
PRE
MUTE
From ADC R Channel
ON
Direct O/P
Source 2
PFL
Trim
PRE Source

SoundCraft Si Series Specifications

General

Model Variants	Si Expression, Si Performer, Si Compact, Si Impact
Built-in Effects	Lexicon effects engine
Type	Digital mixer
EQ Bands	4-band EQ per channel
Subgroups	4 subgroups
Effects Engines	Lexicon effects engine
Faders	Motorized faders
Display	Varies by model
Dimensions	Varies by model
Weight	Varies by model
