SoundCraft Ui16 User Manual

2.2: HARDWARE I/O & CONTROL
GETTING STARTED > HARDWARE

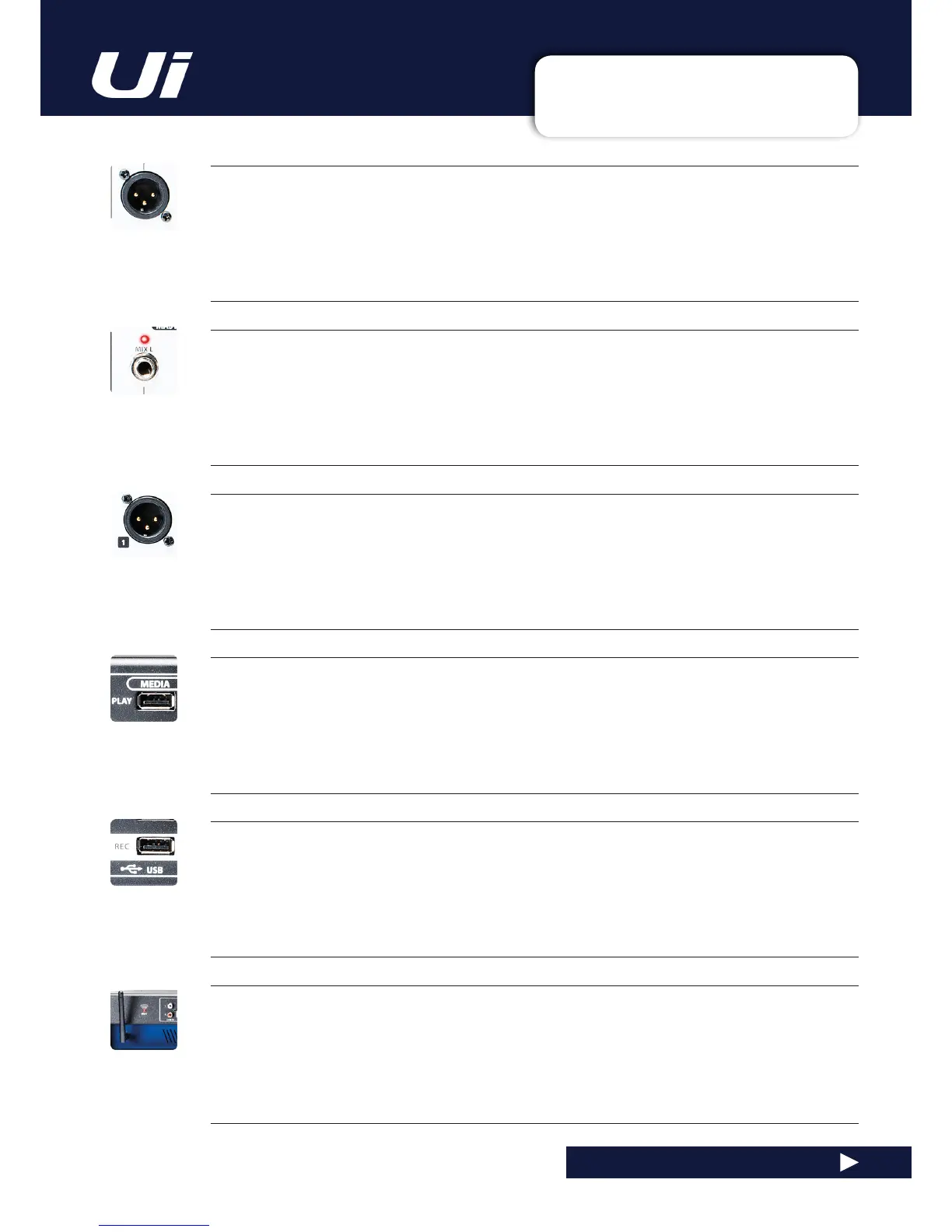

2.2: Hardware I/O And Control
MIX L/R OUTPUT - JACK
Master Channel Jack outputs
The Master Channel XLR and jack outputs are parallel connections (identical).
AUX OUTPUTS
Physical outputs for the Aux Master outputs
The Ui12 has two Aux Master outputs and the Ui16 has four.
MEDIA - PLAY
USBSocketforUSBFlashDrivewithaudioplaybackles
Audio files must be saved to the USB stick as either MP3, AAC, .WAV, .OGG, .AIFF, or .FLAC files. See section 9.0.
This USB socket can also be used for Show File and Snaphot import/export, and software updates. There are two
additional USB sockets on the side of the unit.
Ui12, Ui16 User Manual
MIX L/R OUTPUT - XLR
Master Channel XLR outputs
The Master Channel XLR and jack outputs are parallel connections (identical).
MEDIA - REC (Ui16, Ui12 with latest Firmware)
USB Socket for USB Flash Drive - for recording audio
The Soundcraft Ui 16mixer will record the Master Channel stereo output as a stereo file onto the storage device.
See guide for playback and recording instructions - section 9.0.
Wi-Fi Antenna
Necessary for wireless network connection - Hotspot or WiFi
Make sure the Antenna is firmly screwed into it’s socket and normally orientated vertically. For more information
on wireless network settings, see section 10.1.

SoundCraft Ui16 Specifications

General

Channels	16
Mic Preamps	8
USB Playback	Yes
Built-in Wi-Fi	Yes
XLR Inputs	8
Aux Sends	4
Phantom Power	Yes
Sampling Rate	48 kHz
Bit Depth	24-bit
Ethernet Port	1
Remote Control	Remote control via HTML5-compatible browser
RCA Inputs	2
Control	Control via any device with a web browser
Wi-Fi	Built-in Wi-Fi
Microphone Preamps	8
USB Audio Interface	2-channel recording/playback
Monitor Outputs	2
Aux Outputs	4
Power Supply	Internal
USB	USB playback and recording
Dimensions	177 x 482 x 89 mm
Weight	3.9kg (8.6 lbs)
