2.3: INPUT CHANNEL ROUTING
GETTING STARTED > INPUT CHANNEL ROUTING
2.3: INPUT CHANNEL ROUTING

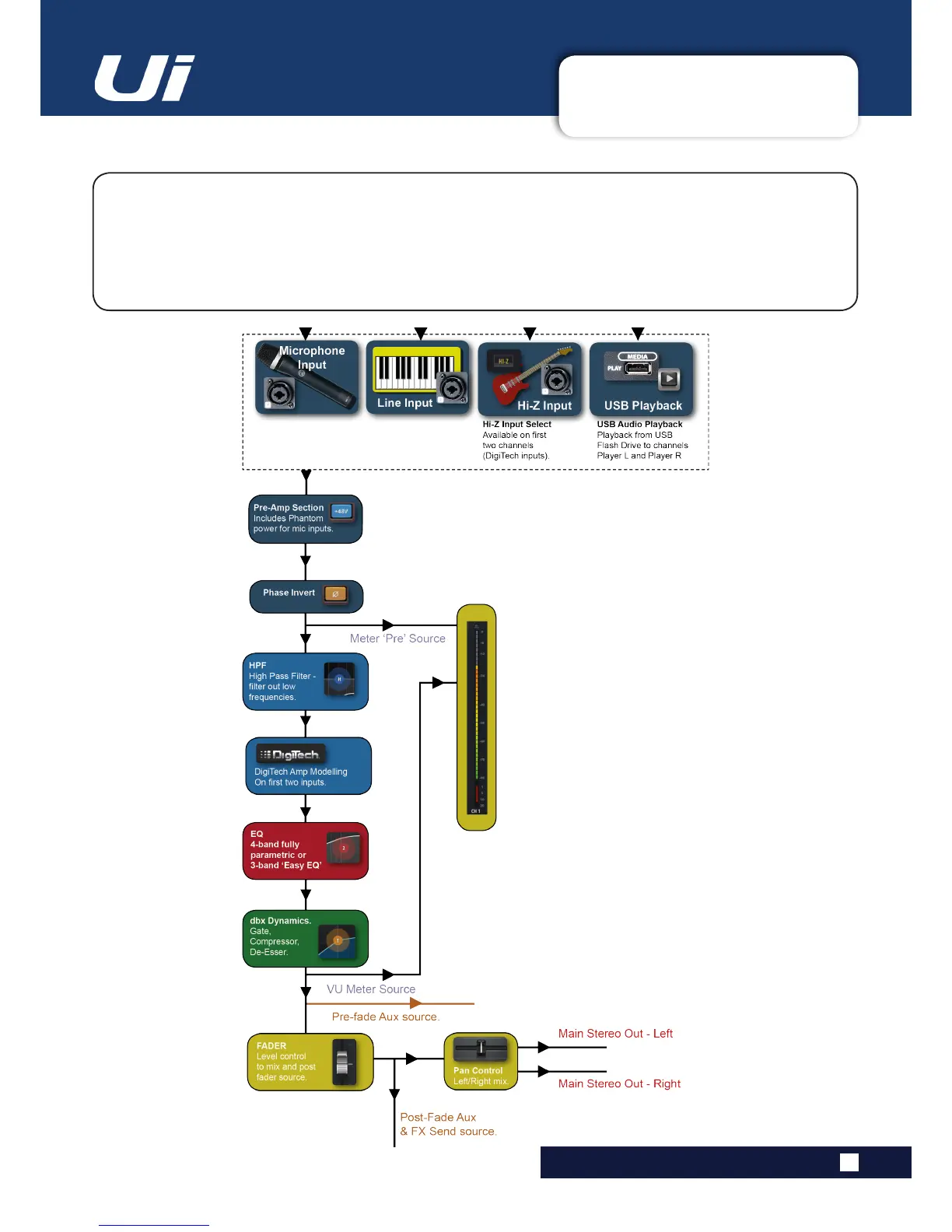

The diagram shows the audio signal path through an input channel - from physical input to bus sends
(Aux, FX, Mix, and so on).
Pleasenote:Theentiresignalpath(exceptforthehardwarepreandoutputDACs)isclip-freewithinnite
headroom. It means that internal clipping is not introduced even by driving the EQ/Dyn to the max.
SufcientlyreducingthelevelontheMasterChannelstripwillgetridofanyclippingontheoutput.
Ui12, Ui16 User Manual

SoundCraft Ui16 Specifications

General

Channels	16
Mic Preamps	8
USB Playback	Yes
Built-in Wi-Fi	Yes
XLR Inputs	8
Aux Sends	4
Phantom Power	Yes
Sampling Rate	48 kHz
Bit Depth	24-bit
Ethernet Port	1
Remote Control	Remote control via HTML5-compatible browser
RCA Inputs	2
Control	Control via any device with a web browser
Wi-Fi	Built-in Wi-Fi
Microphone Preamps	8
USB Audio Interface	2-channel recording/playback
Monitor Outputs	2
Aux Outputs	4
Power Supply	Internal
USB	USB playback and recording
Dimensions	177 x 482 x 89 mm
Weight	3.9kg (8.6 lbs)
