3.3: TABLET SCREENS
SOFTWARE > TABLET SOFTWARE SCREENS

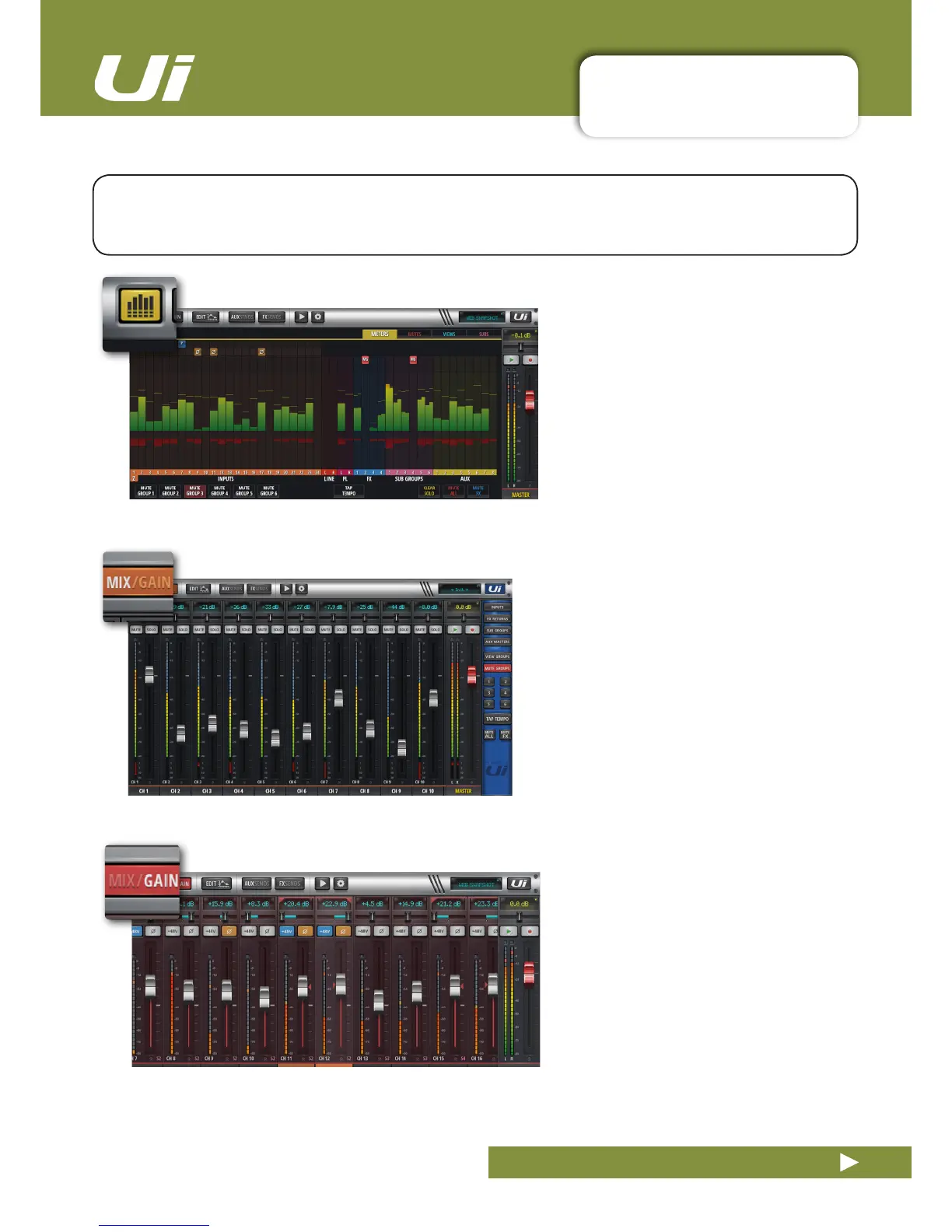

3.3: TABLET SOFTWARE SCREENS
The main tablet software screens are accessed from the level 1 Navigation Buttons along the top of the
screen area, or via fast-access routes, such as double-tapping on a fader to access the EQ screen (see
section 3.1).
Ui12, Ui16 User Manual
MIX
MIX is the most used screen and includes
a scrollable display of every channel
fader. The channel order from left to right
is: input channel faders, line in faders,
media player faders, FX return faders,
Sub Group faders, and AUX Master
faders. The Ui hardware you own will
determine how many channels you see in
the control software.
METERS
The Tabs are METERS (for all channels),
MUTES (Mute group Assignment), VIEWS
(View Group assignment), and SUBS
(sub-group assignment).
The Meters page features VU meters
and gain reduction meters for all chan-
nels, and also provides fast access to the
CLEAR SOLOS, MUTE FX, and MUTE
ALL buttons, plus all Mute Groups.
GAIN
All Ui mixer models include remote gain
control and remote phantom power.
TheGAINscreen-easilyidentiedbyits
red fader level lines - features Gain
Faders, and the phantom power and
phase invert buttons.

SoundCraft Ui16 Specifications

General

Channels	16
Mic Preamps	8
USB Playback	Yes
Built-in Wi-Fi	Yes
XLR Inputs	8
Aux Sends	4
Phantom Power	Yes
Sampling Rate	48 kHz
Bit Depth	24-bit
Ethernet Port	1
Remote Control	Remote control via HTML5-compatible browser
RCA Inputs	2
Control	Control via any device with a web browser
Wi-Fi	Built-in Wi-Fi
Microphone Preamps	8
USB Audio Interface	2-channel recording/playback
Monitor Outputs	2
Aux Outputs	4
Power Supply	Internal
USB	USB playback and recording
Dimensions	177 x 482 x 89 mm
Weight	3.9kg (8.6 lbs)
