SoundCraft Ui16 User Manual

3.5: PHONE SCREENS
SOFTWARE > PHONE SOFTWARE SCREENS

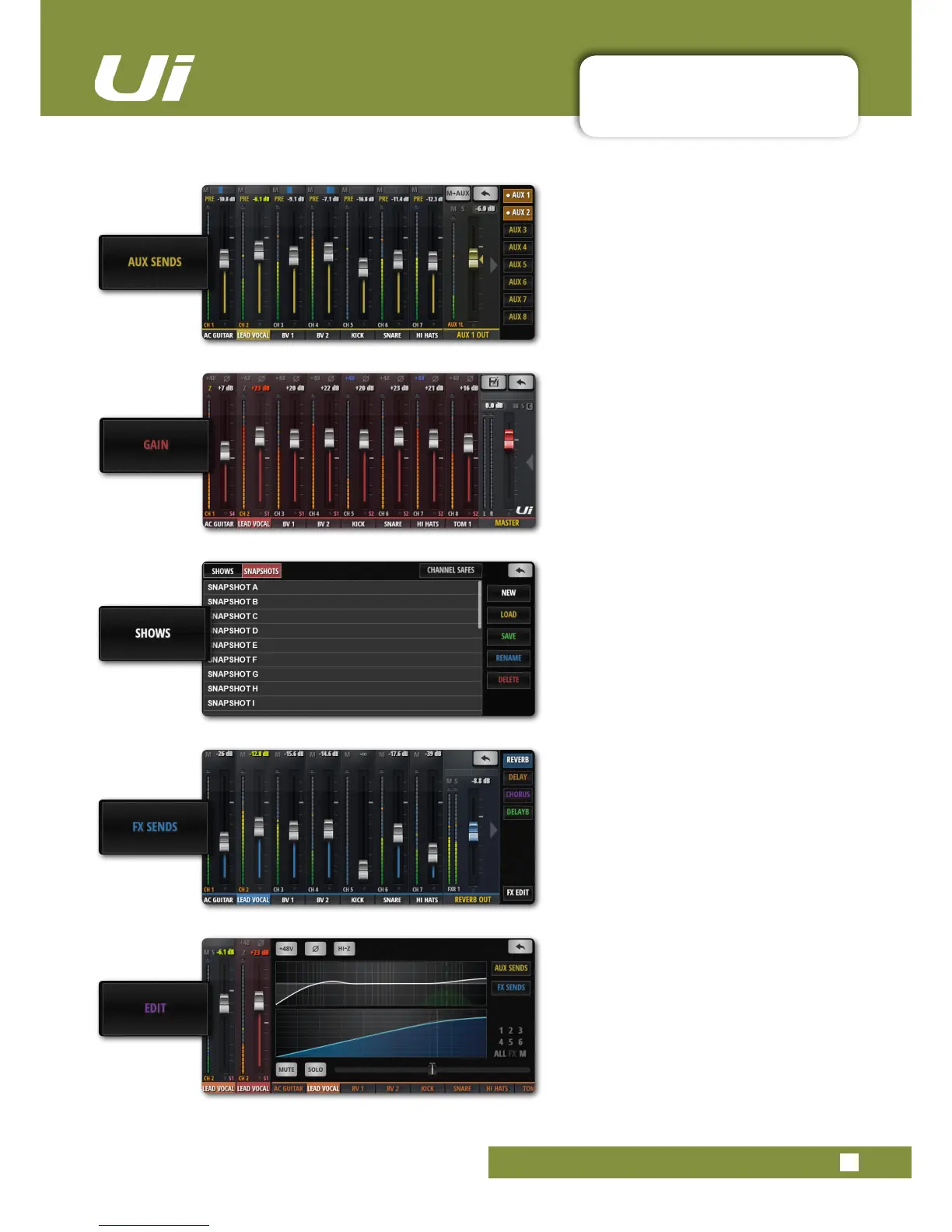

3.5: PHONE SOFTWARE SCREENS
Ui12, Ui16 User Manual
AUX SENDS
AUX SENDS is where the AUX mix is
created. The AUX input channel faders
determine the signal level sent to that
aux bus. Select an aux mix on the right to
adjust the mix from all channels.
GAIN
All Ui mixer models include remote gain
control and remote phantom power.
TheGAINscreen-easilyidentiedbyits
red fader level lines - features Gain
Faders, and the 48V phantom power and
PHASE buttons.
SHOWS
Shows and Snapshots management,
saving, and recall etc. A Show is a
collection of Snapshots. A Snapshot is a
stored set of full mixer settings.
FX SENDS
FX Send faders determine the mix that is
sent to the selected FX processor.
First, select which effect you wish to
adjust using the tabs, then adjust the
faders to increase or decrease the
amount of reverb you would like added
to each input channel. Select FX EDIT to
edit the selected FX algorithm.
EDIT
Double-Tap a channel name or select
EDIT screen to open the channel
Dashboard. This screen allows editing of
EQ, dynamics, FX and aux sends. Simply
click on the display you want and it will
open that feature in full screen.
Double-Tap the Master Channel name for
the Master EDIT page.

SoundCraft Ui16 Specifications

General

Channels	16
Mic Preamps	8
USB Playback	Yes
Built-in Wi-Fi	Yes
XLR Inputs	8
Aux Sends	4
Phantom Power	Yes
Sampling Rate	48 kHz
Bit Depth	24-bit
Ethernet Port	1
Remote Control	Remote control via HTML5-compatible browser
RCA Inputs	2
Control	Control via any device with a web browser
Wi-Fi	Built-in Wi-Fi
Microphone Preamps	8
USB Audio Interface	2-channel recording/playback
Monitor Outputs	2
Aux Outputs	4
Power Supply	Internal
USB	USB playback and recording
Dimensions	177 x 482 x 89 mm
Weight	3.9kg (8.6 lbs)
