lnstallation/Un-lnstallation
Note
Before starting
installation
of
the unit, make sure the wiring
is
connected properly.
Use
only the parts provided with the unit to ensure proper
installation.
The use
of
unauthorized parts may cause malfunction.
Install
the unit where it does not get
in
the driver's way and
will
not injure the passenger
in
case
there is a sudden stop,
like
an emergency stop.
+

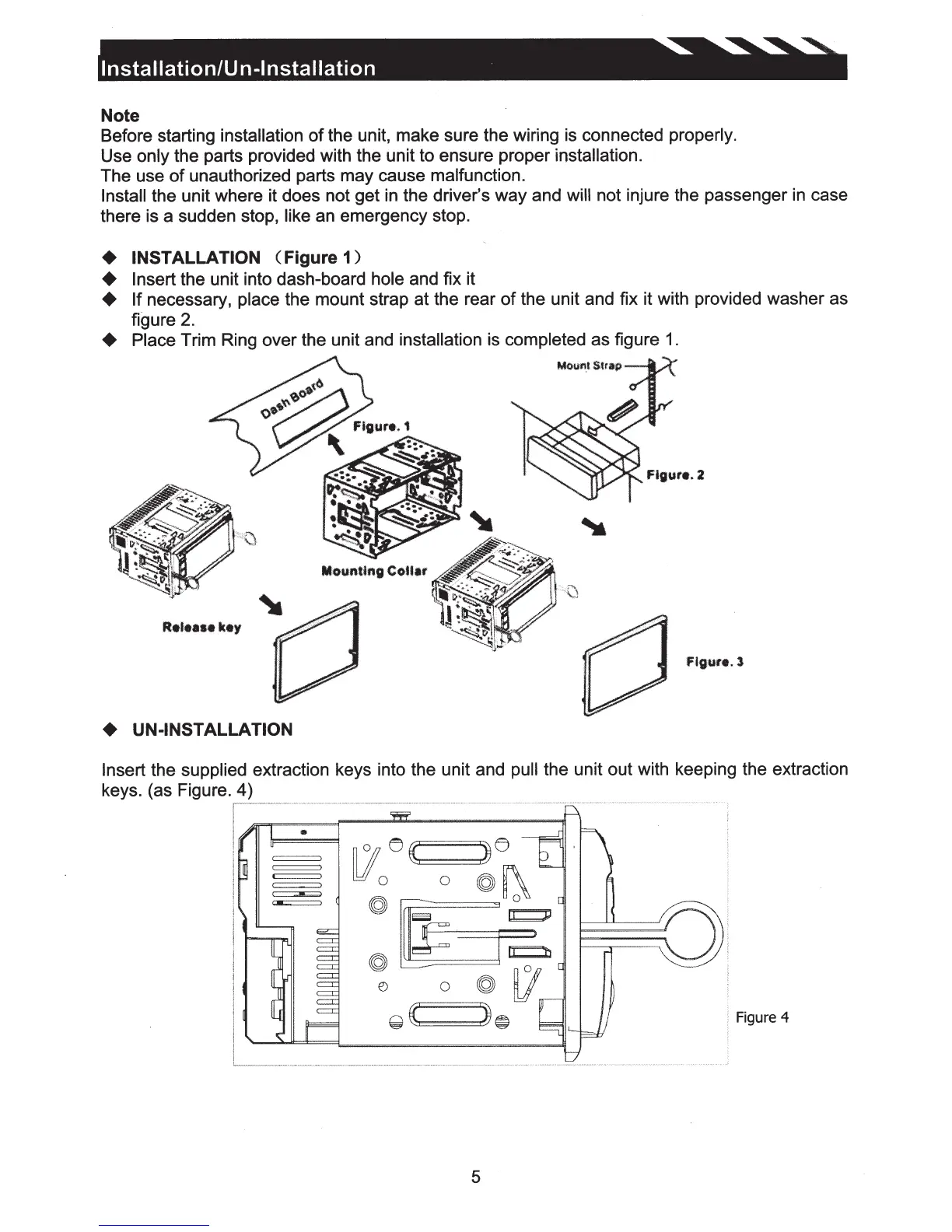

INSTALLATION
(Figure
1)
+ Insert
the unit into dash-board
hole
and fix it
+
If
necessary,
place
the mount strap at the rear
of
the unit and fix it with provided washer as
figure
2.
+
Place Trim Ring over the unit and installation
is
completed as figure
1.
+
UN-INSTALLATION
Insert
the supplied extraction keys into the unit and
pull
the unit out with keeping the extraction
keys. (as Figure. 4)
r~~~·-···
~
·-···· ······
··-····~··········-···
············
············
······--··
-·········
·
~oil
e~~:
~
lLfo
o
~
((9)
€)
0
~
K
Figure
4
