3. INTERCONNECTION WITH THE TRANSCEIVER

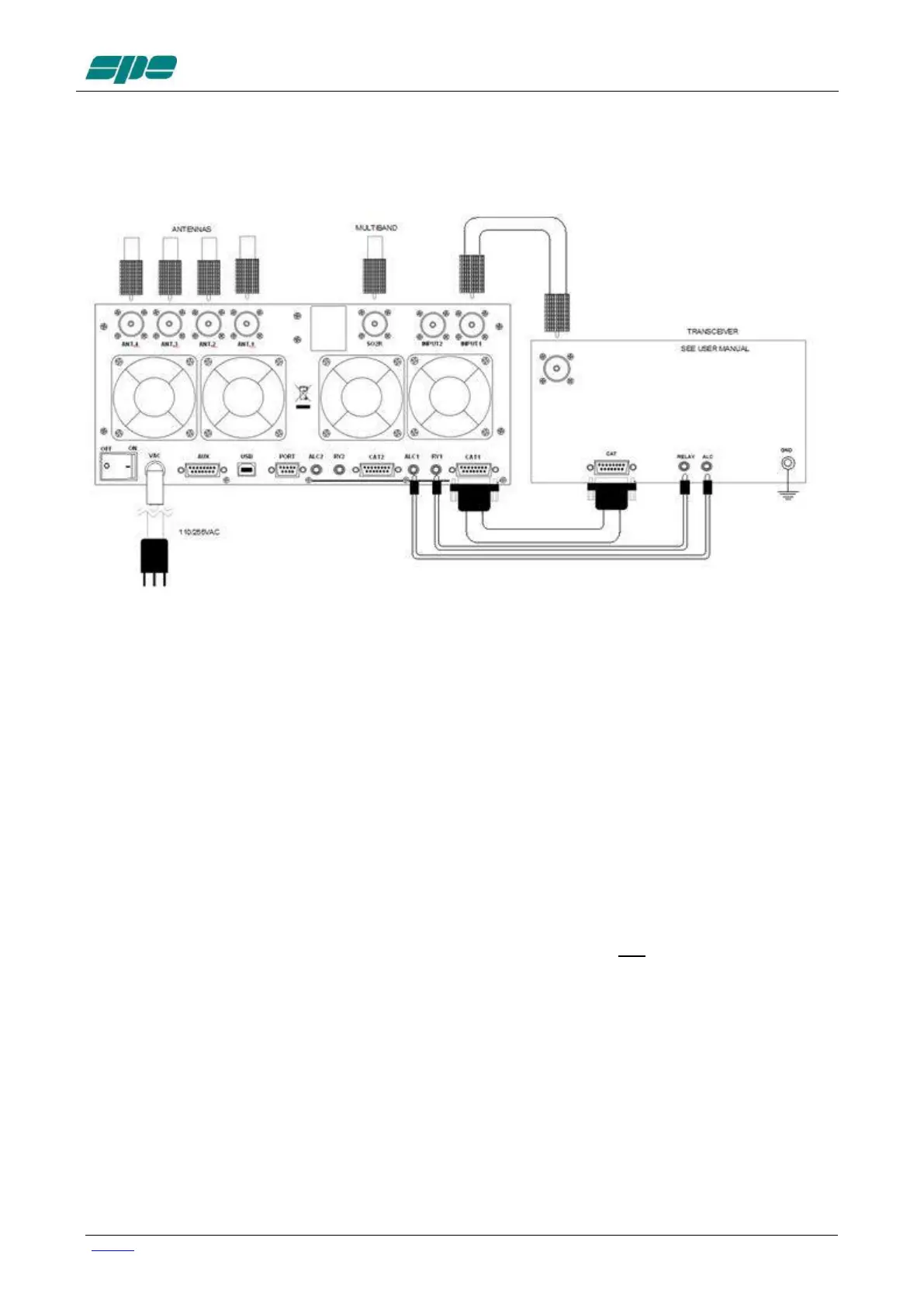

The diagram shows the connections with one transceiver only. To connect the second
transceiver, repeat the same connections used for “IN 1”, now using the port “IN 2“
connections.
For ALC and RELAY connections, use a shielded cable (supplied) with RCA phono
connectors.
For CAT connection, this cable needs to be made by the owner, or purchased, for the
many different transceivers available for use with the amplifier.
This cable may also include ALC, RELAY ON / OFF (read the “CAT CONNECTIONS“
chapter of this manual).
For all other information about connecting a transceiver, please refer to the transceiver’s
manual.
Note: If the DB15 “CAT” connector is used for RELAY and ALC, do not also use the RELAY
and ALC RCA phono connectors.
