SPE EXPERT 1.5K-FA TAURUS - Yaesu; CAT RS232 Interface; CAT 5 V TTL Interface

User manual
Expert 1.5K-FA
TAURUS
INDEX Page. 43 of 92
12.4 Yaesu

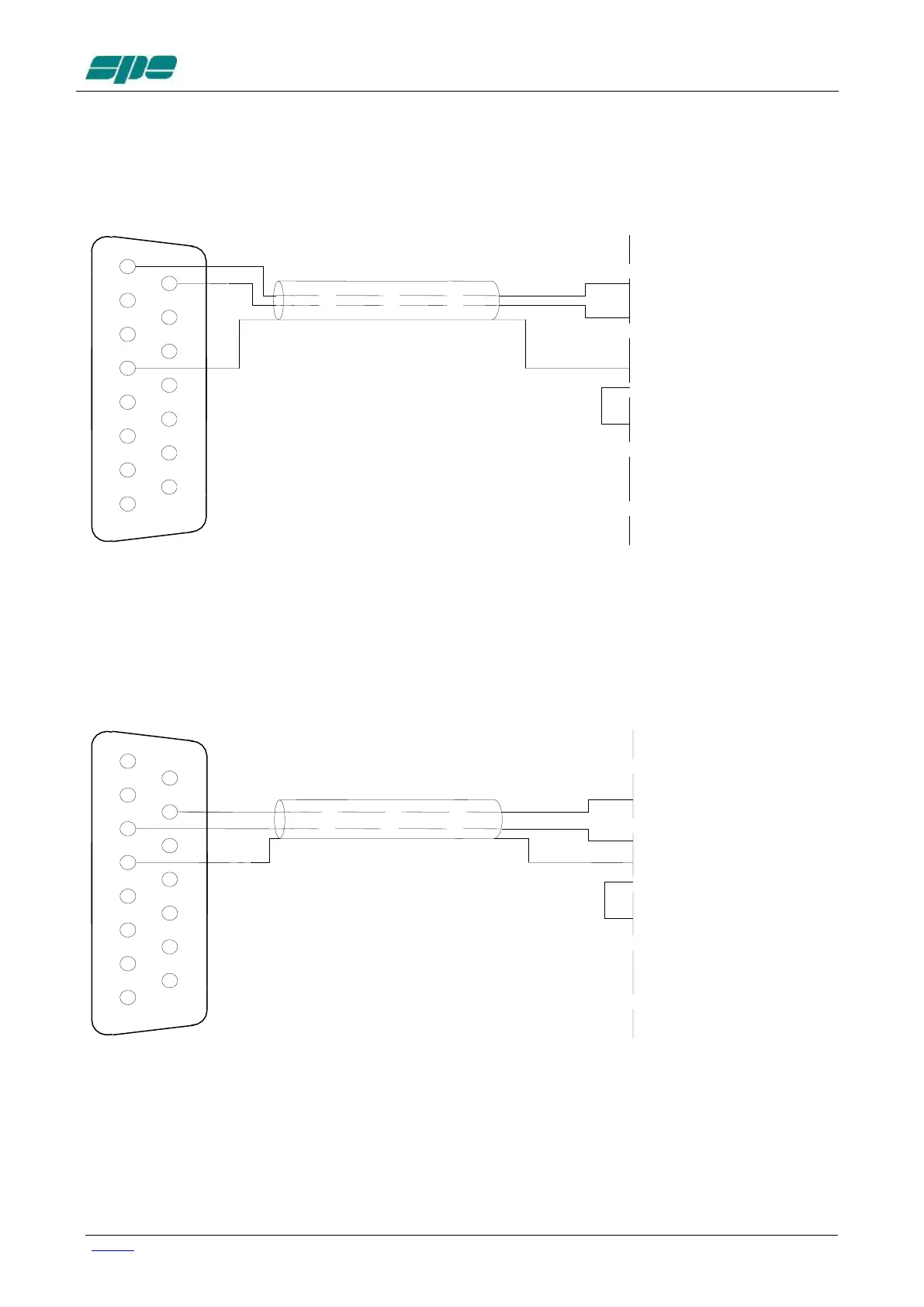

CAT RS232 Interface
The radio connector may be a DB-9 or DB-25 male connector or female connector (read
the specific manual). Verify from the manual if the RTS–CTS link is required.
CAT 5V TTL Interface
The connector is described in the transceiver’s manual.
Verify if the RTS–CTS link is required by the transceiver.
4
3
2
1
5
6
7
8
9
12
13
14
11
10
15
GND
GND
RADIO
CONNECTOR
RX
TX
DB15 M
RX TTL
TX TTL
RTS
CTS
.
4
3
2
1
5
6
7
8
9
12
13
14
11
10
15
GND
GND
RADIO
CONNECTOR
DB15 M
RX 232
TX 232
TX 232
RX 232
RTS
CTS
(RXD)
(TXD)
.
