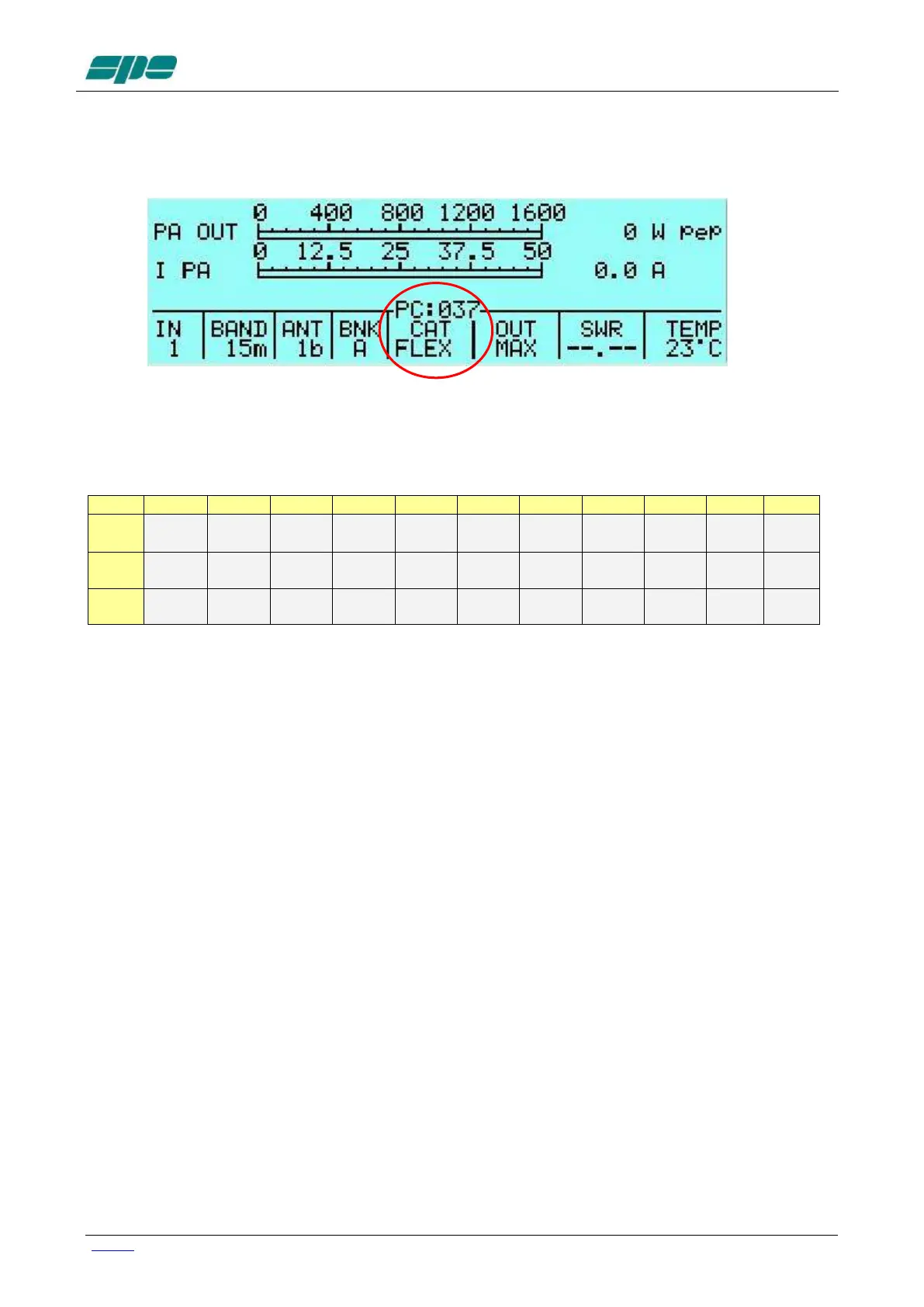

The following picture shows (as an example) the Power Control of the 15 m band in MAX
power mode:
The following empty table is suggested as a template for the Flex Radio user’s Power
Control adjustments.
N.B. This procedure has been studied and verified for FLEX transceivers, it should also be
valid for all SDRs with Kenwood protocol (check).
Even if the Elecraft transceivers have an ALC input this is not compatible, as they use a
Kenwood protocol, to control the Pout of the amplifier it is possible to use the procedure
described for the FLEX setting the CAT FLEX-RADIO.
Attention: it is recommended not to exceed the Pout setting, respecting the following
levels: LOW (500 W), MID (1000W), MAX (1500W).
The settings must be redone if you change transceiver.
The procedure is valid for both memory banks.
12.8 Transceivers without CAT
Select CAT "NONE":
A special link is not necessary as the internal amplifier frequency counter will measure the
input frequency and will control the amplifier (not recommended if a CAT connection is
possible, see page 11)..
Note: WARNING, SPE is not responsible for any failure resulting from misuse of hardware
interfacing.
