The construction of the connection cable between this connector and the
transceiver is described below according to its brand and type of interfacing (see
page 11).
The linear side connector is supplied, while the opposite side one is normally supplied with
the transceiver (called Radio in the following figures).
For connections, consult the specific operating manuals.
12.2 Icom

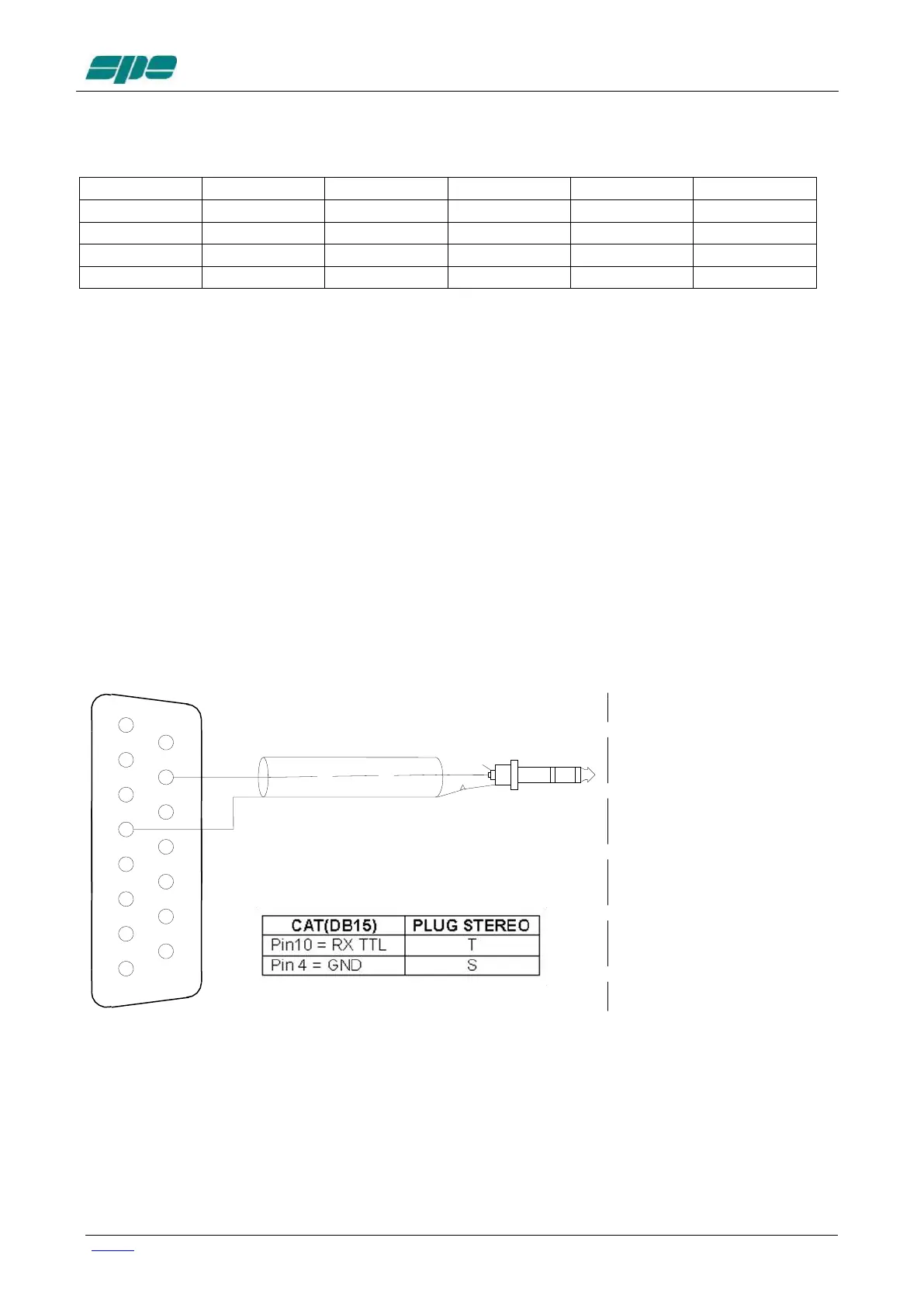

CAT CI–V Interface
This interface is standard for all the Icom models equipped with CAT.
The cable always terminates into a 3.5 mm. mono plug.
It is possible to use a stereo plug according to the above diagram.
The plug is inserted into the "Remote" connector of the transceiver.
