User’s manual EXPERT 1K-FA
Pag. 10 of 76

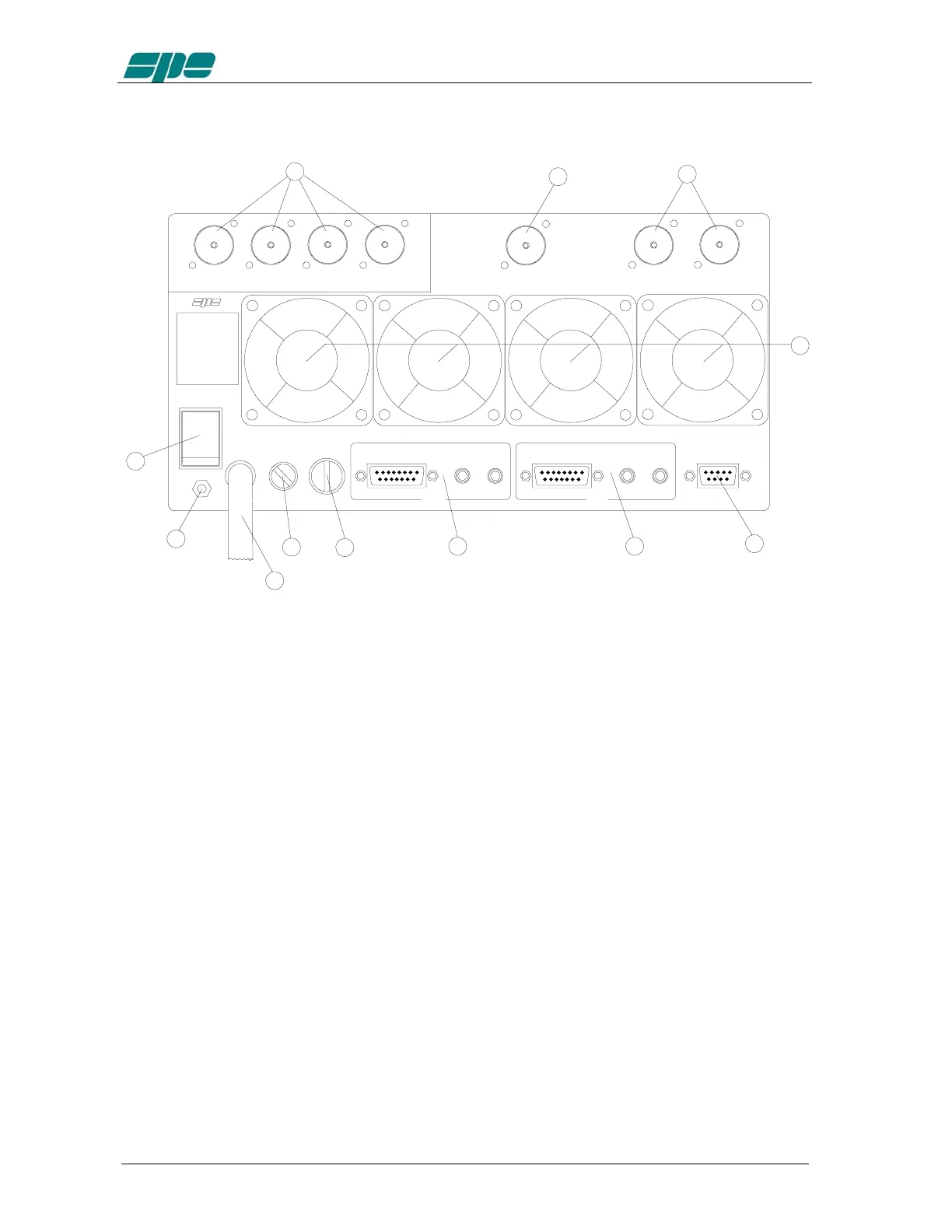

1.2 Rear Panel
ANT 1
FUSE 2FUSE 1AC
IN 1
RELAYCAT ALC CAT ALCRELAY RS232
ON
ANT 2
ANT 4ANT 3
INPUT 1 INPUT 2
IN 2
1
I
SO2R
2
O
11
12
10
9
8
67
5
4
3
1) ANT connectors for four possible antennas.
2) SO2R connector for SO2R operations
3) INPUT connectors to connect two exciters.
4) FANS
5) RS 232 CONNECTOR
6) IN 1 ALC, RELAY, CAT connectors for exciter 1.
7) IN 2 ALC, RELAY, CAT connectors for exciter 2.
8) FUSE 2 fuse for the power supply; PA unit 12.5A (230, 215, 200 Vac),
20A (115, 100 Vac).
9) FUSE 1 fuse for the power supply; electronic unit 0.5A (230, 215, 200 Vac),
1A (115, 100 Vac ).
10) AC mains power cable.
11) GND ground connector.
12) ON main switch.
