User’s manual EXPERT 1K-FA
Pag. 37 of 76

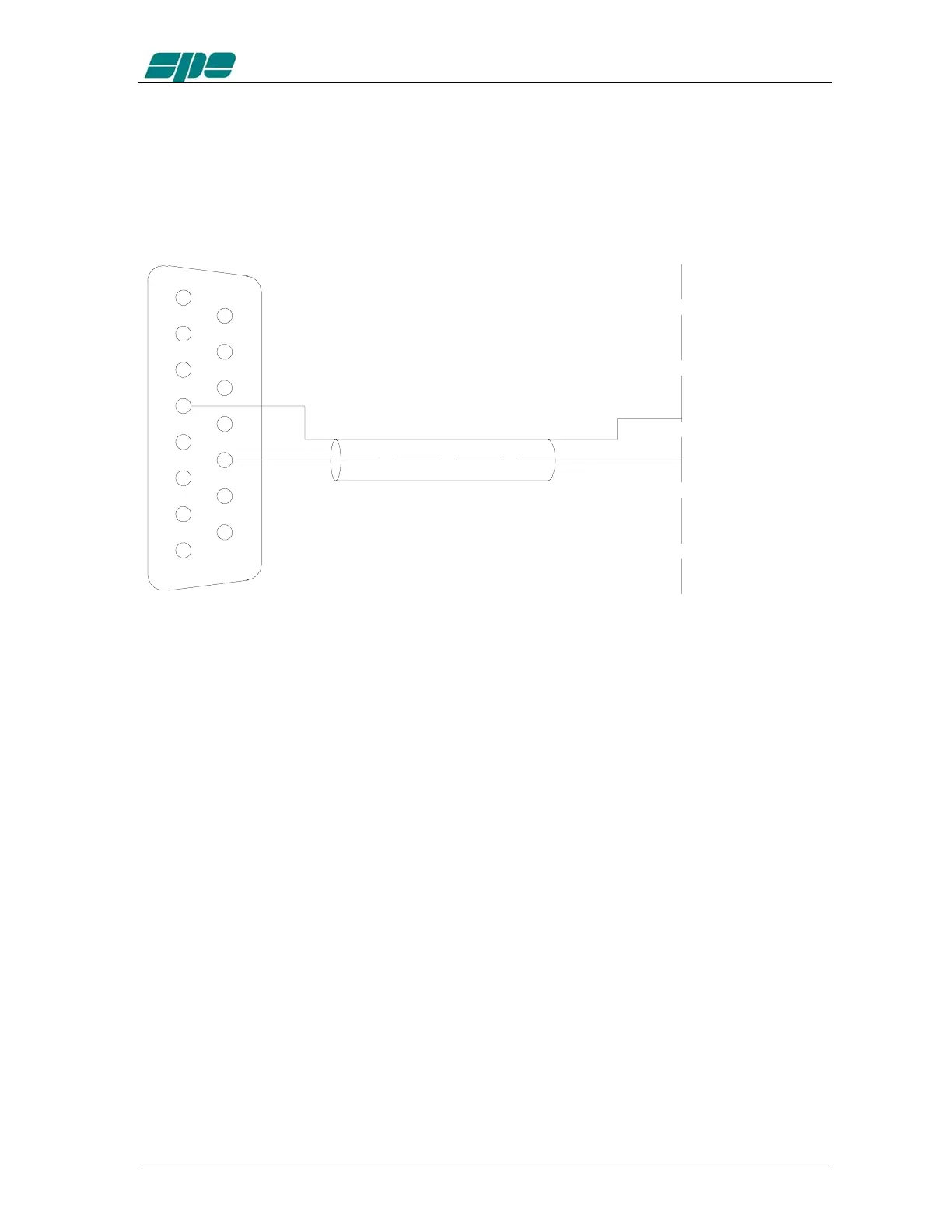

13.3 TX INH LINK
Some tranceivers have a suitable input (called TX – INHIBIT, LINEAR, MUTE, etc.) that
disables transmission. To improve the receive / transmit switching efficiency it is highly
recommended, but not mandatory, to connect this input with the pin 13 of the linear
connector (TX – INH).
4
3
2
1
5
6
7
8
9
12
13
14
11
10
15
DB15 M
GND
TX-INH
GND
TX-INH
RADIO CONNECTOR
