User’s manual EXPERT 1K-FA
Pag. 31 of 76

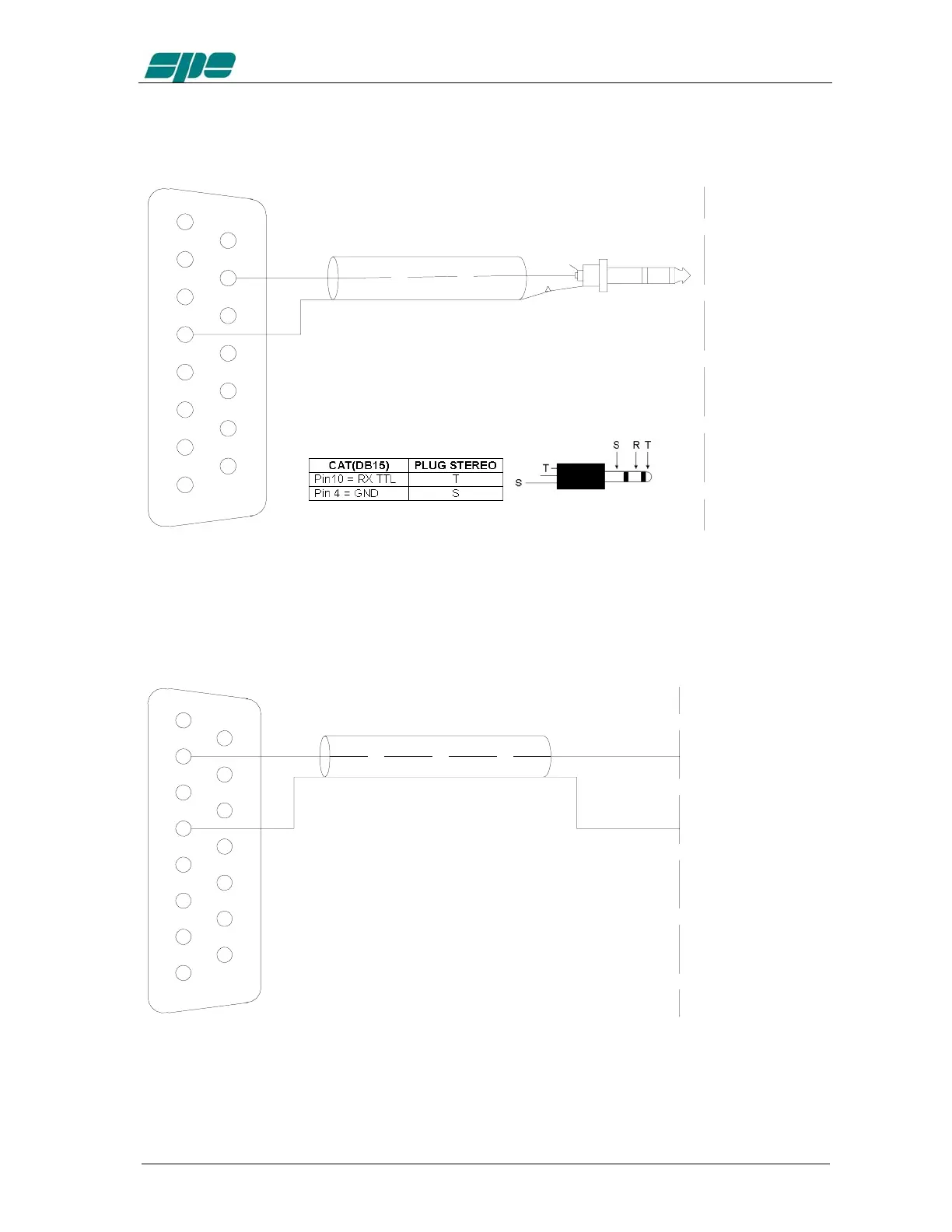

12.3 ICOM
CAT CI–V Interface
4
3
2
1
5
6
7
8
9
12
13
14
11
10
15
GND
DB15 M
RX TTL
RADIO CONNECTOR
This interface is standard for all the Icom models equipped with CAT, the cable always
terminates to a 3,5 mm. plug
BAND CONTROL VOLTAGE Interface
4
3
2
1
5
6
7
8
9
12
13
14
11
10
15
GND
GND
RADIO CONNECTOR
DB15 M
BAND CONTROL VOLTAGE
BAND CONTROL VOLTAGE
This interface is standard for all the Icom models not equipped with CAT. The change of
a voltage determines the change of band.
