3. INTERCONNECTION WITH THE TRANSCEIVER
ANT 1
FUSE 2FUSE 1AC
RELAYCAT ALC CAT ALCRELAY RS232
ANT 2 ANT 4ANT 3
INPUT 1 INPUT 2
ALC
RELAY
GND
TRANSCIEVER
GND
IN 2 1
CAT
SO2R
ON
I
O
ANTENNAS
SEE MANUAL
MULTIBAND

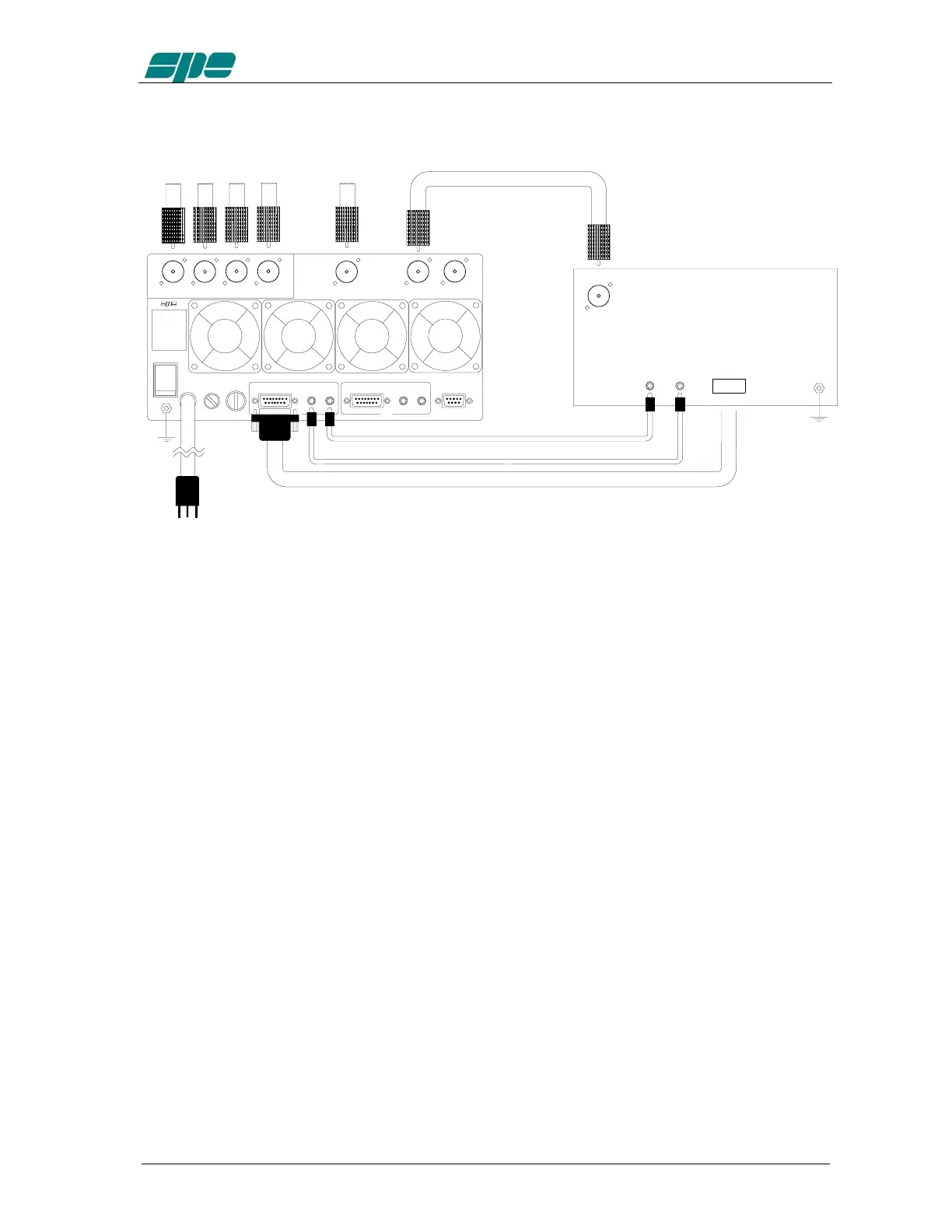

The diagram shows the connections with one transceiver only.To connect the second
transceiver repeat the same connections using the port “IN 2“.
For the ALC, RELAY connections, use the shielded cable (furnished) with phono RCA
connectors.
For the CAT connection, the cable must be made for the transceiver to be connected.
This cable may also be made to include ALC, RELAY ON / OFF (read the “CAT
CONNECTIONS“ chapter of this manual).
For all other information about connecting a transceiver, please refer to its manual.
