Spearhead Multicut 300 - Blade & Carrier Reassembly and Timing

8999151EN: v1 11/03/2021
79
Original instructions (ENGLISH)
Website: www.spearheadmachinery.com
Anti-scalp Dish, Blade & Blade Carrier Installation
Equipment Required
• 36mm hex sockets/spanner
• 36mm hex spanner
• 55mm hex spanner
• Needle nose pliers
• NLGI #2 Molybdenum Disulphide grease with paint brush/distributor

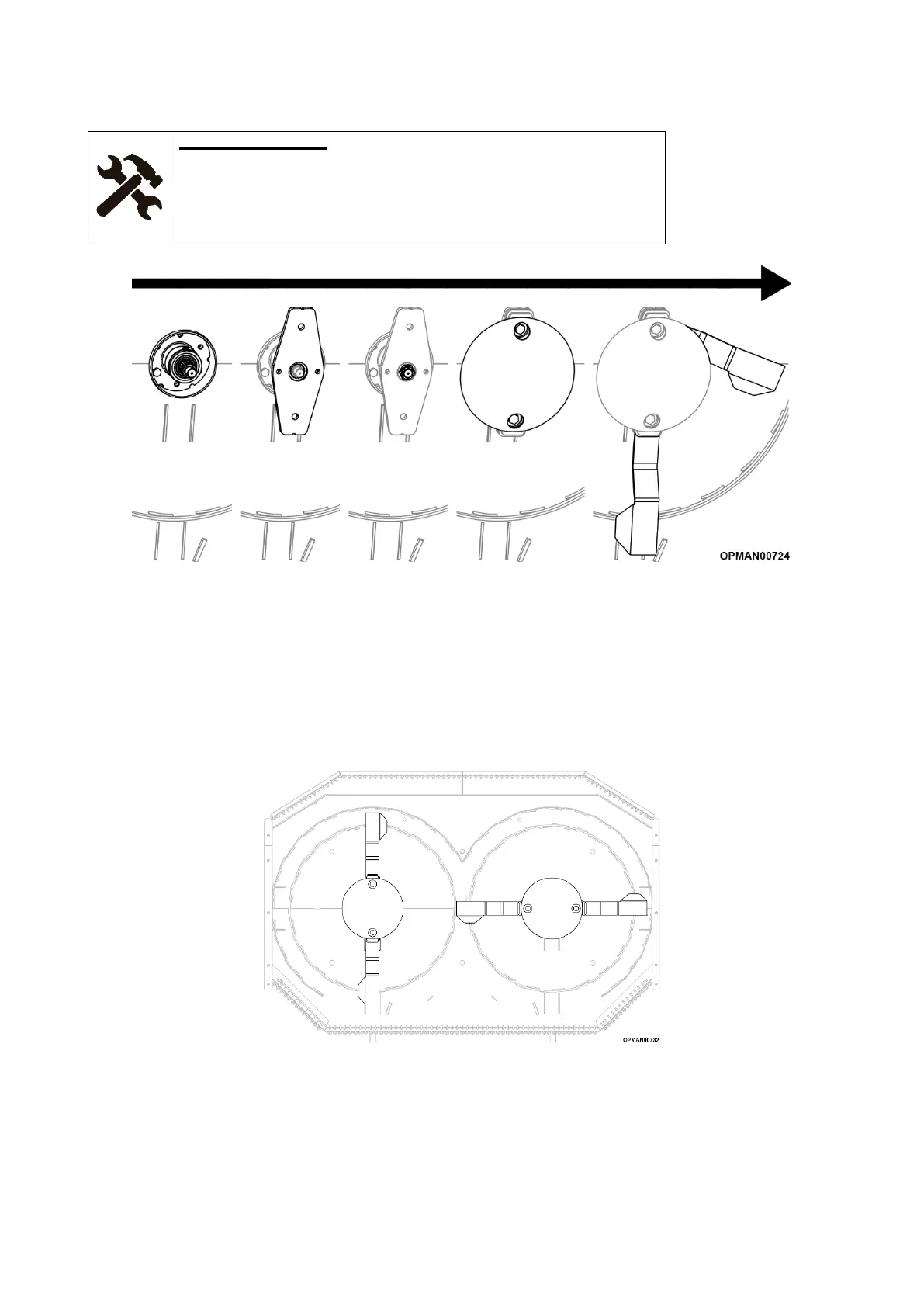

Figure 5.31
Anti-scalp Dish, Blade & Blade Carrier Installation
The complete blade carrier and blade assembly can be reassembled in a reverse fashion shown in the removal
procedure.
Always assess the condition of all the components to see they’re fit for purpose before reassembling.
• See Section 5.4.2 for assessing the condition of machine cutting blades.
• See Section 5.4.6 for assessing the condition of machine anti-scalp lower blade carriers (if fitted).
Figure 5.32
Important Multicut 300 Blade Timing
Before reassembling the blade and blade carrier assembly assess the gearbox seal ensuring it is in good
condition and undamaged. Ensure there is no ingressed wire or other material in this area. Before reassembly in
general ensure that all components are checked for their condition and cleanliness. Failure to do this may result
in personal injury and permanent damage to the machine and/or tractor.
