| Functionality | 24

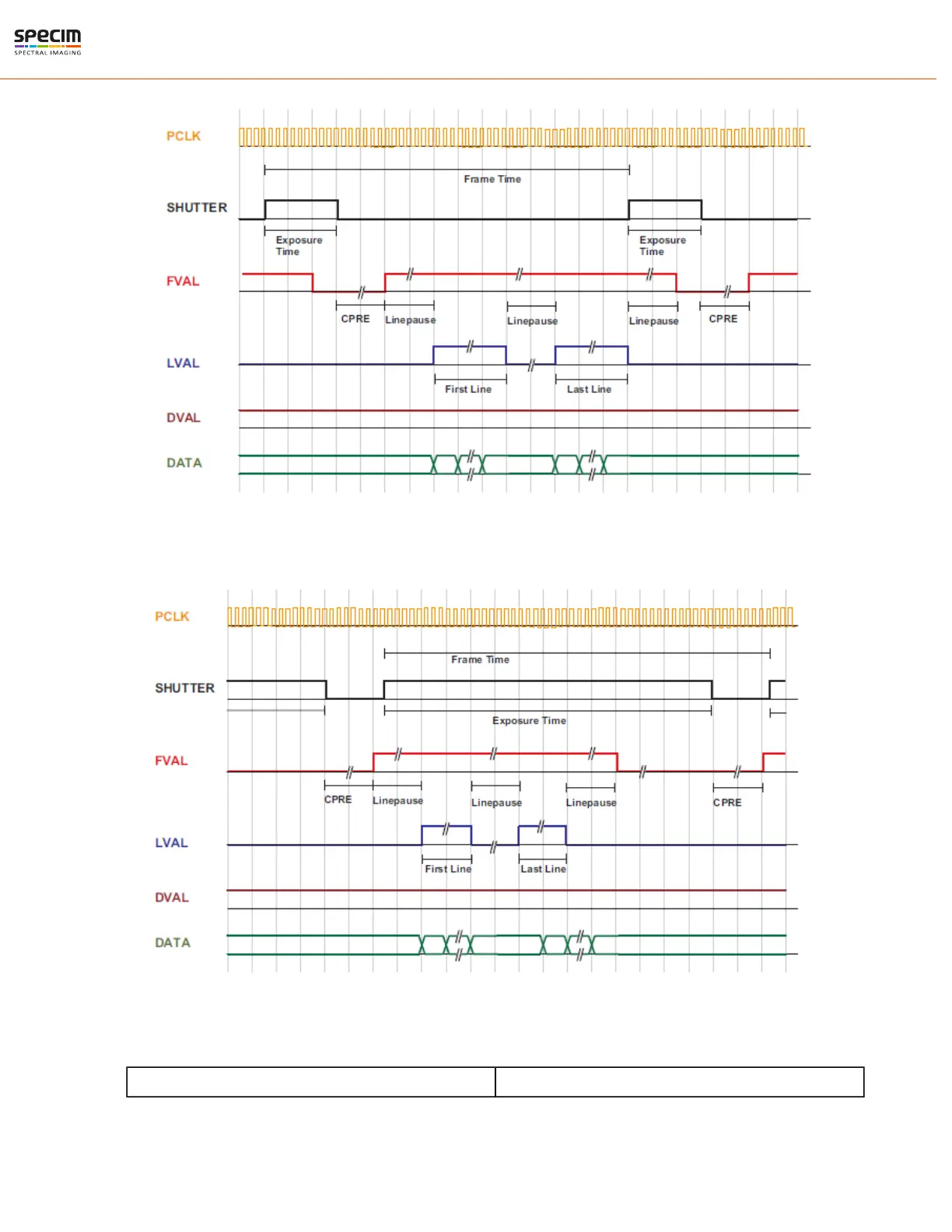

Figure 23: Timing diagram of simultaneous readout mode (readout time is greater than exposure
time)
Figure 24: Timing diagram simultaneous readout mode (readout time is less than exposure time)
Table 4: Explanation of control and data signals used in the timing diagram
Frame time Frame time is the inverse of the frame rate.
All rights reserved - Specim, Spectral Imaging Oy Ltd.
