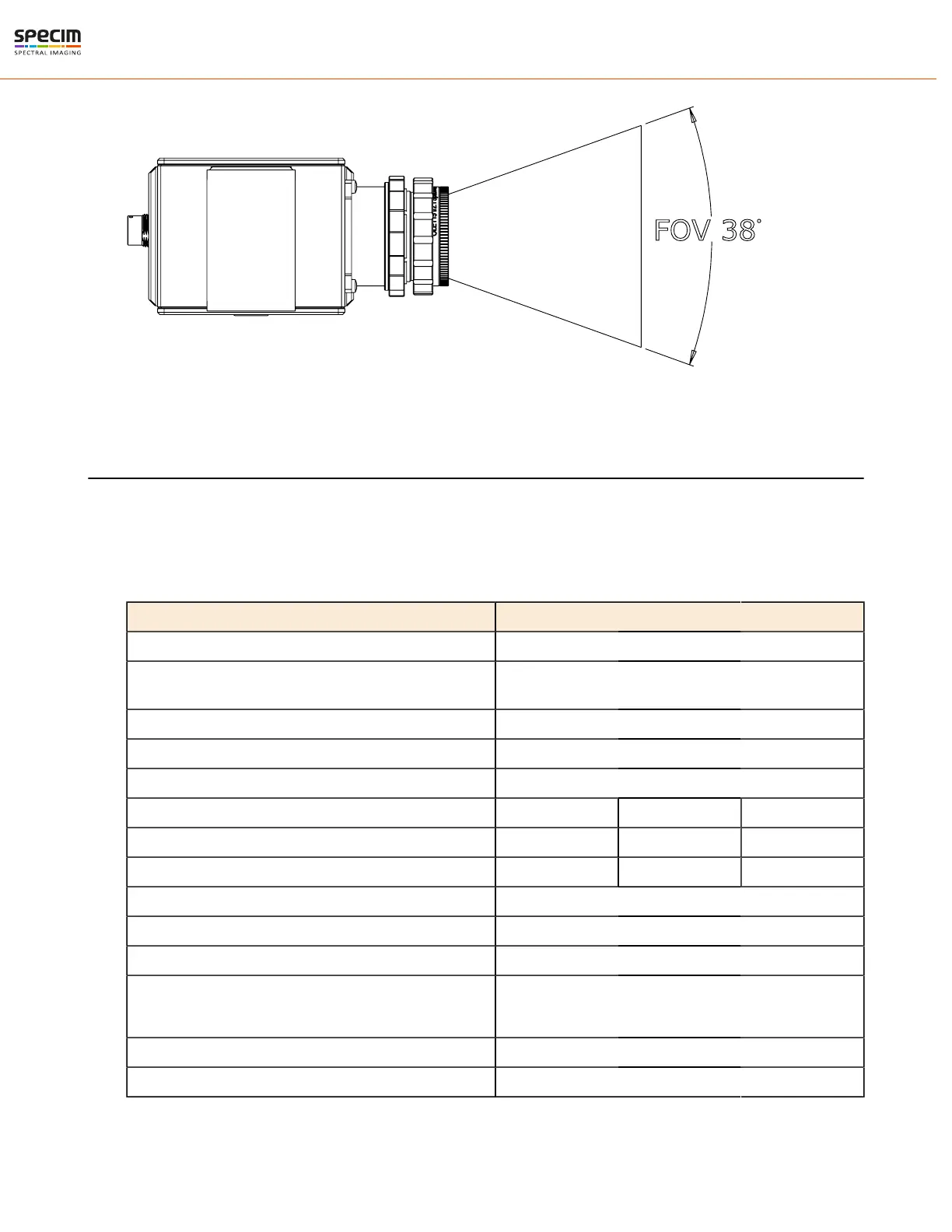

Figure 36: Field of View
Performance Characteristics
This section describes the performance characteristics of the camera.
The camera is operated in a default binning mode of 2(spectral) x 1(spatial) pixels, which gives the effective pixel
size on array of 16x8 um given in the table.
Table 10: Camera Performance Characteristics FX10/FX10e
Characteristics Value
Detector type CMOS
Slit width Physical width 42 µm. Projection
on sensor 32 µm (M~1/1.3)
Pixel size 16x8 µm
# Spatial pixels 1024
Binning (spectral x spatial) 2 x 1
Spectral binning options 2x 4x 8x
# Spectral bands covering the specified range 224 112 56
Spectral sampling/pixel 2.7 nm 5.4 nm 10.8 nm
Spectral resolution FWHM 5.5 nm (mean)
SNR @ max. signal 420:1
Frame rate (fps), full range (224 bands) max. 327 FPS
Frame rate (fps), MROI examples 20 bands = 2800 FPS
5 bands = 6500 FPS
Integration time Adjustable, within frame time
Sensor cooling Passive
