SpectraPure LiterMeter 4 - Page 11

SpectraPure
®
SpectraPure
®
Inc. 480.894.5437 Call us toll-free 1.800.685.2783
2167 East Fifth St, Tempe, Arizona 85281
11
PUMP
A B C D
1 2 3 4
INPUT
LEVEL SENSOR
LEVEL SENSOR
RESERVOIR “B”
RESERVOIR “A”
EXT CABLES
EXT CABLES
LITERMETER 4
TO PUMP
“A”
TO PUMP
“B”
TO INPUT
“1”
TO INPUT
“2”
BOTH PUMPS STOP WHEN EITHER RESERVOIR RUNS DRY
IF INPUT “1” SHOWS “DRY”— PUMPS A & B ARE OFF
IF INPUT “2” SHOWS “DRY”— PUMPS A & B ARE OFF

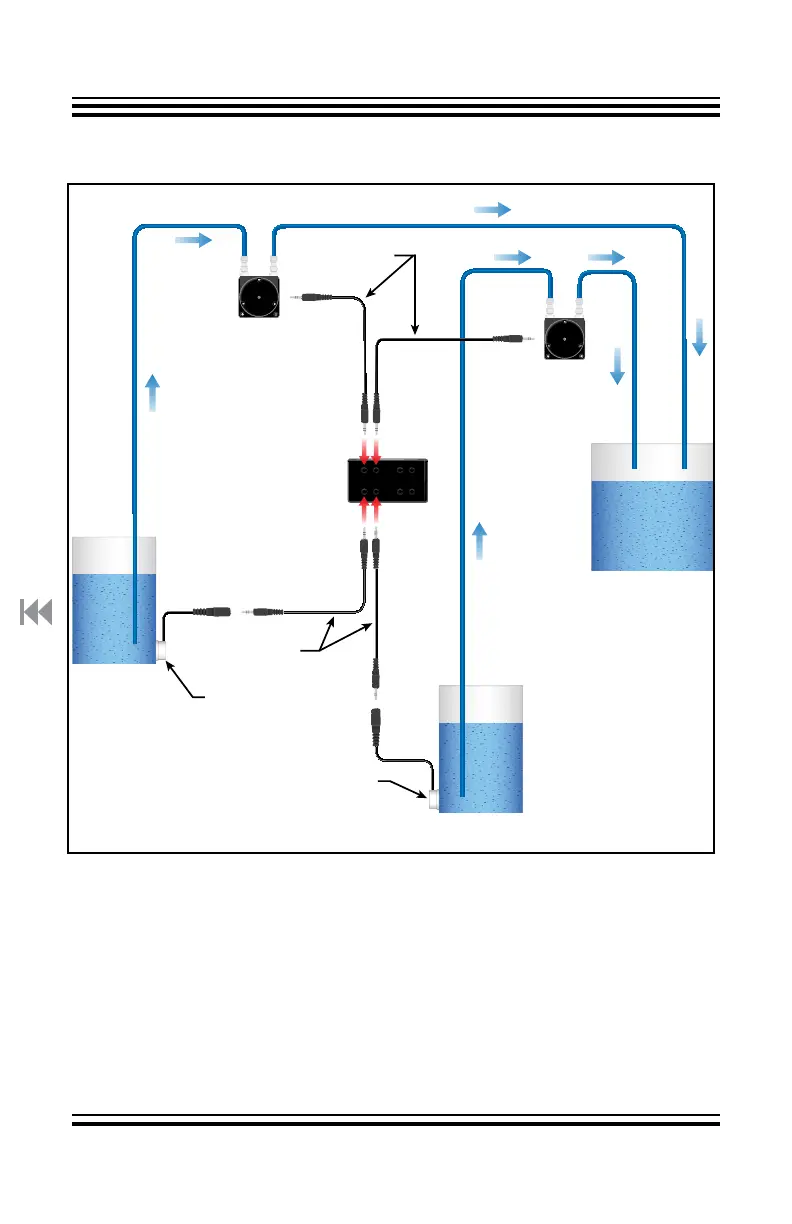

A-B DOSING USING LITERMETER 4
SUMP
A--B Dosing System
