SpectraPure LiterMeter 4 - Page 13

SpectraPure
®
SpectraPure
®
Inc. 480.894.5437 Call us toll-free 1.800.685.2783
2167 East Fifth St, Tempe, Arizona 85281
13
PUMP
A B C D
1 2 3 4
INPUT
FRESH SALT WATER
LEVEL SENSOR
LEVEL
SENSOR
OUT TO
DRAIN
EXT CABLES
LITERMETER 4
TO PUMP
“D”
TO PUMP
“B”
PUMP
PUMP
TO INPUT
“1”
TO INPUT
“3”
SUMP
EXT CABLES
IF INPUT 3 SHOWS “WET”, THEN THE PUMPS CONNECTED TO “B” AND “D” ARE OFF.
IF INPUT 1 SHOWS “DRY”, THEN THE PUMPS CONNECTED TO “B” AND “D” ARE OFF.
PUMPS “B” AND “D” ARE BOTH SET TO “DAILY” WITH EQUAL TOTALS.
IT IS ALSO POSSIBLE TO RUN THE PUMPS FOR PART OF A DAY VIA “TIMER” SETTING.
EXTENSION CABLES ARE AVAILABLE IN 3 FT, 6 FT, 12 FT, AND 25 FT LENGTHS.

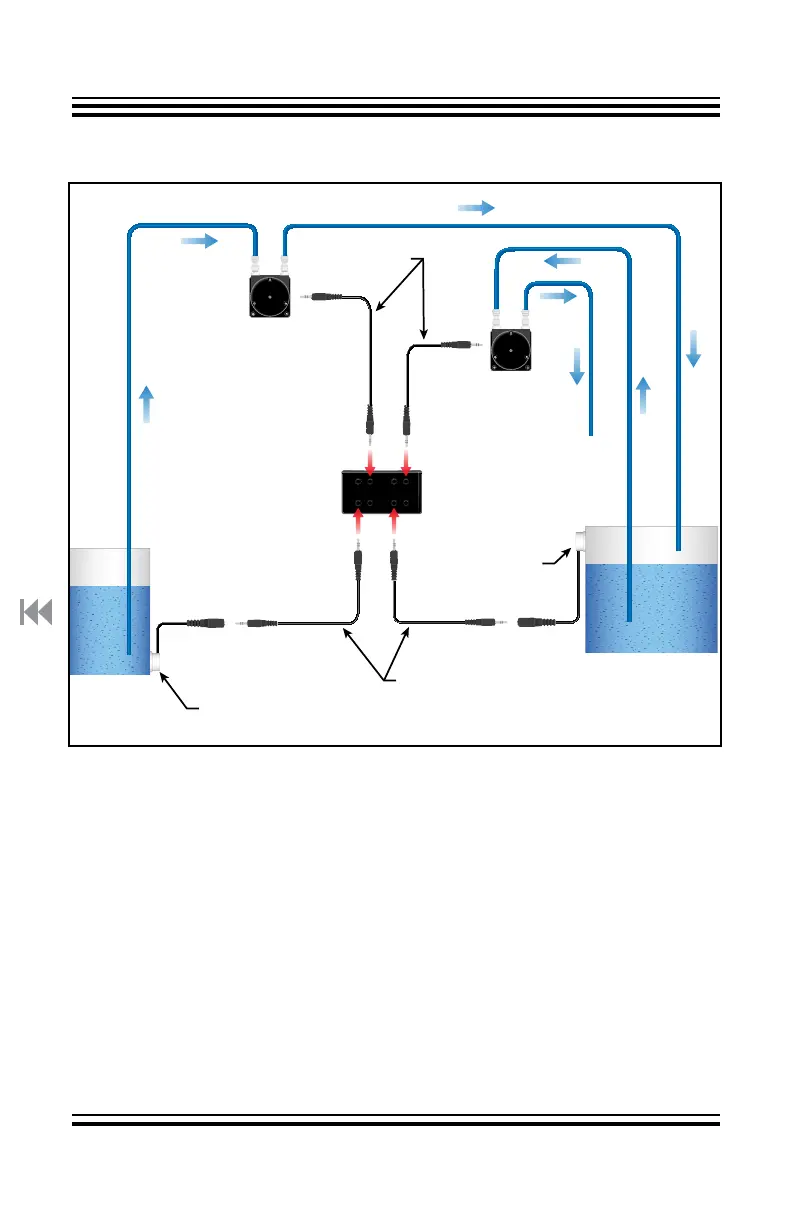

WATER EXCHANGE USING LITERMETER 4
Water Exchange System
