SpectraPure LiterMeter 4 - Page 15

SpectraPure
®
SpectraPure
®
Inc. 480.894.5437 Call us toll-free 1.800.685.2783
2167 East Fifth St, Tempe, Arizona 85281
15
PUMP
A B C D
1 2 3 4
INPUT
DI WATER FRESH SALT WATER KALKWASSER
LOW WATER LEVEL
NORMAL HIGH WATER LEVEL
CRITICAL HIGH WATER LEVEL
TANK
PUMP “A”
PUMP “C”
PUMP “D”
PUMP “B”

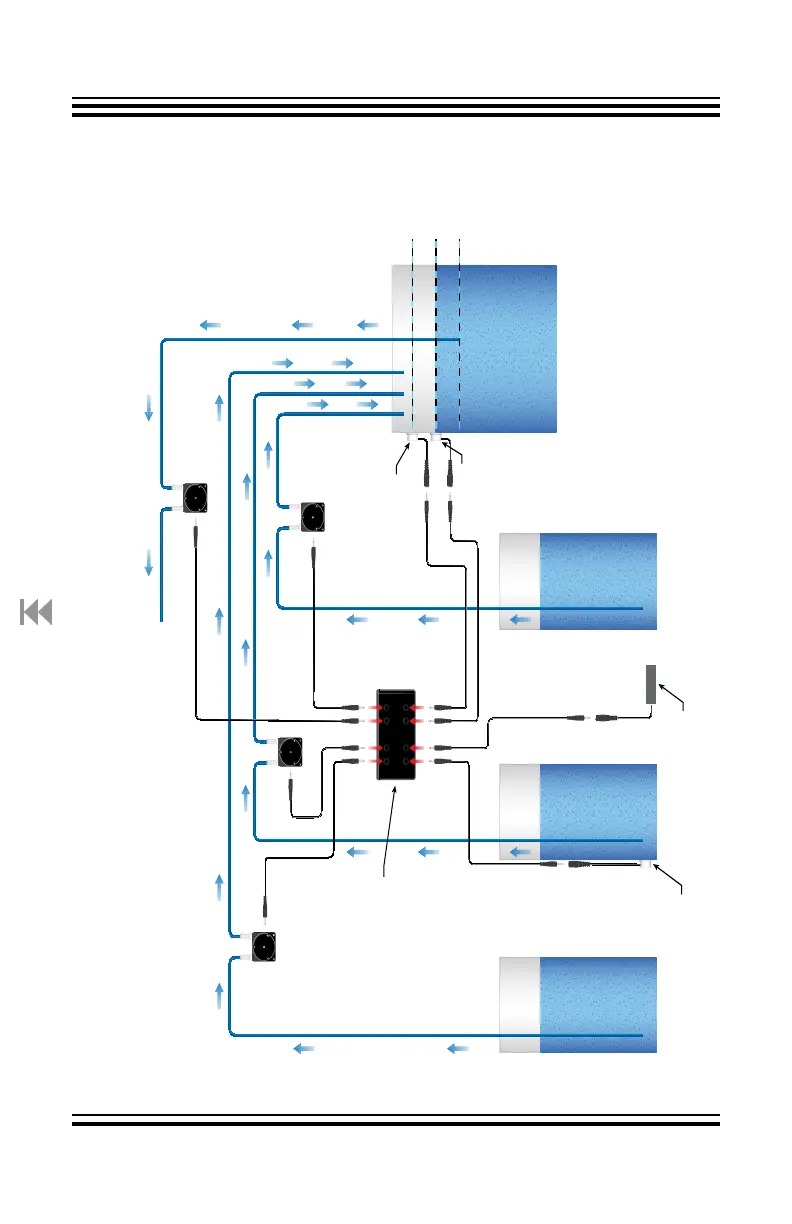

LITERMETER 4 CONNECTIONS EXAMPLE IF INPUT “1” (FRESH SALT WATER) SHOWS “DRY”— PUMPS B & C ARE OFF IF INPUT “2” (WET FLOOR SENSOR) SHOWS “WET”— ALL PUMPS ARE OFF IF INPUT “3” SHOWS “WET”— PUMP A IS OFF IF INPUT “4” SHOWS “WET”— ALL PUMPS ARE OFF
LITERMETER 4
OUT TO DRAIN
LEVEL SENSOR
(INPUT “1”)
LEVEL SENSOR
(INPUT “3”)
LEVEL SENSOR
(INPUT “4”)
WET FLOOR SENSOR
(INPUT “2”)
ATO + Water Exchange + Kalk System
