9
PUMP
A B C D
1 2 3 4
INPUT
LEVEL SENSOR
(INPUT “3”)
LEVEL
SENSOR
(INPUT “4”)
LEVEL
SENSOR
(INPUT “1”)
PURE WATER
TANK “A”
PUMP “A”
PUMP “D”
TANK “B”
EXT CABLES
EXT CABLES
EXT CABLE
LITERMETER 4
TO PUMP
“A”
TO PUMP “D”
TO INPUT “1”
TO INPUT “4”
TO INPUT
“3”
IF INPUT “3” SHOWS “DRY”— PUMPS A & D ARE OFF
IF INPUT “1” SHOWS “WET”— PUMP A IS OFF
IF INPUT “4” SHOWS “WET”— PUMP D IS OFF

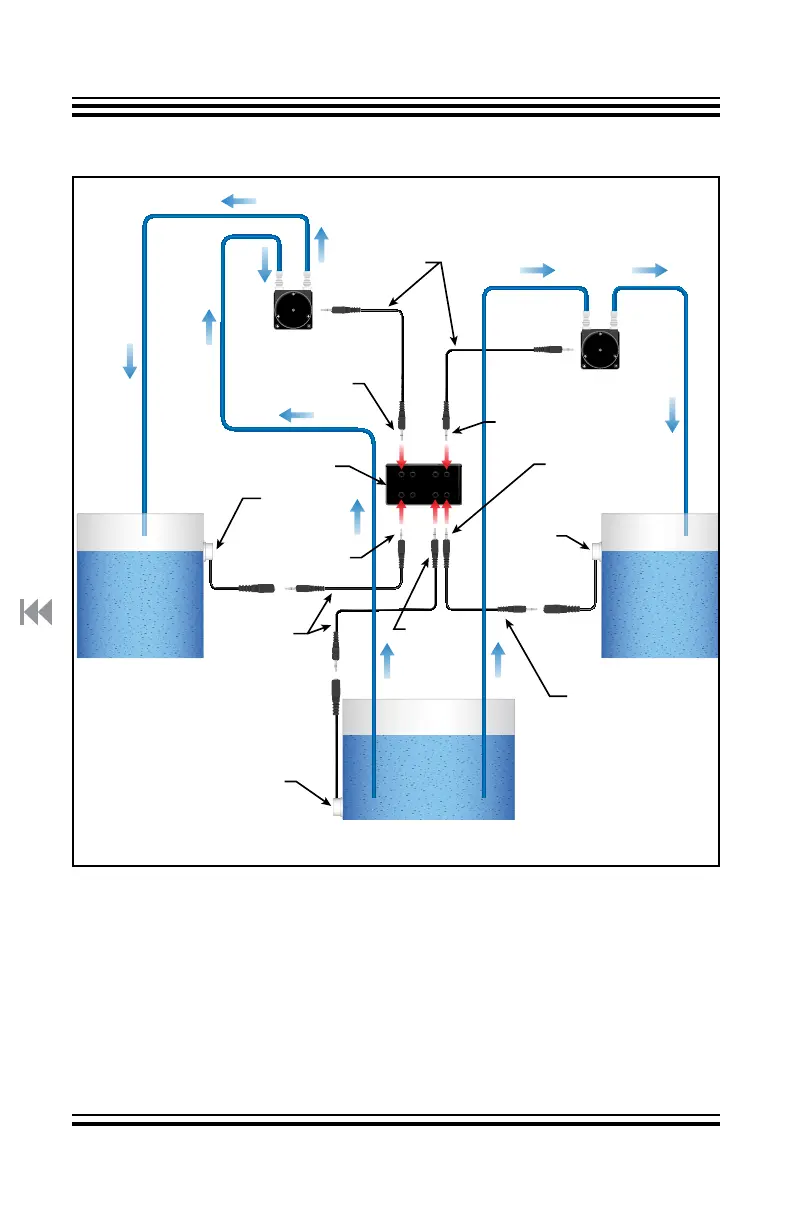

2-TANK INDEPENDENT TOPOFFS USING LITERMETER 4
Top-Off System for Multiple Tanks
