1. Connect a 2-3A USB power supply (not included) to an AC outlet.

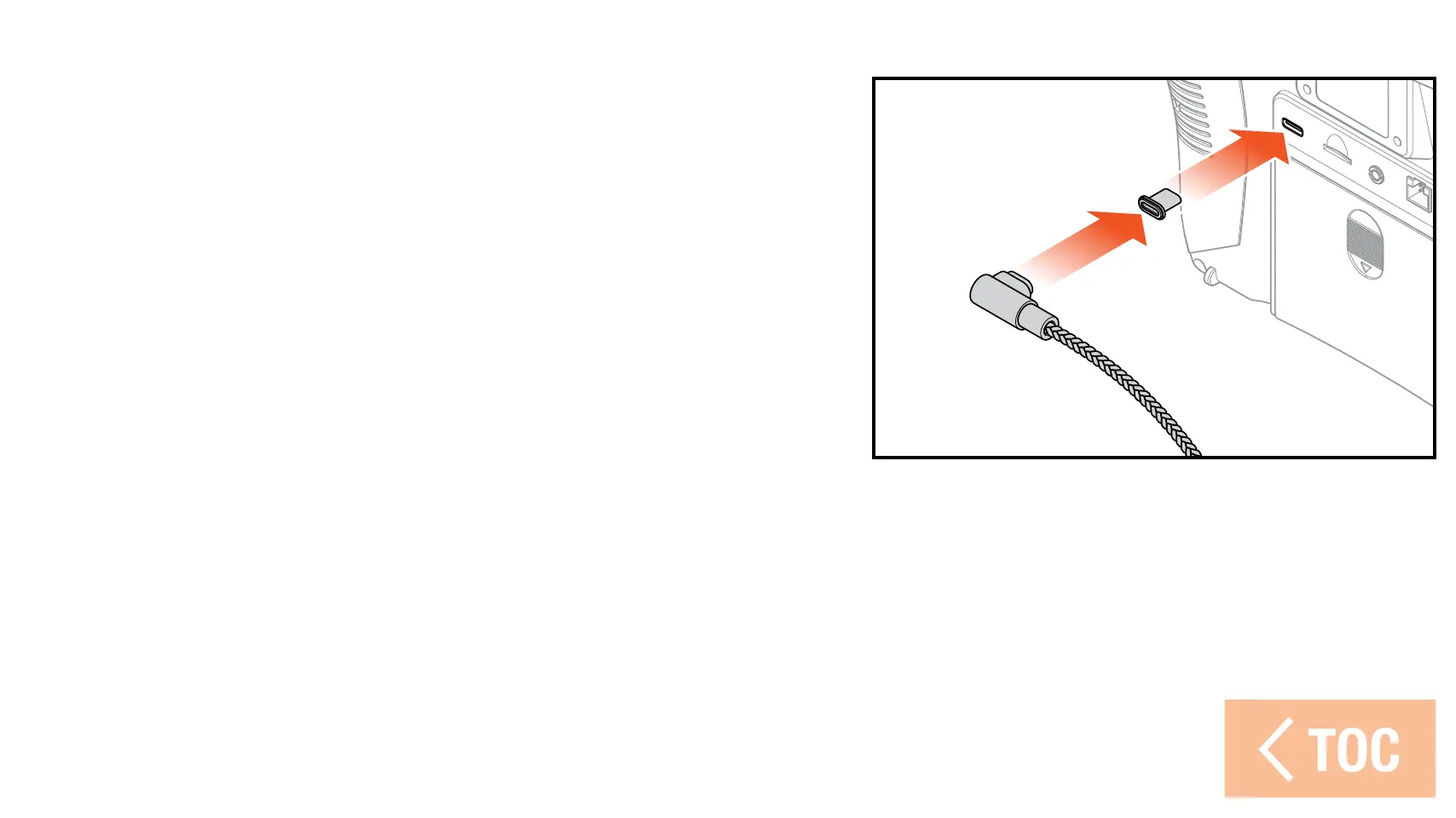

2. Connect the included magnetic USB charging
cable to the power supply.
3. Insert the included magnetic USB-C adapter in
the USB port on the back of the transmitter.
4. Connect the USB charging cable to the
magnetic adapter.
5. The LED will glow solid blue while charging
and stays on while connected to power. A fast
press of the power switch will bring the Charge Battery icon to the color touch
screen display.
6. Charging is complete when the button is pressed and the battery capacity icon
on the screen shows full. Disconnect the USB cable once charging is complete.
Disconnect the power supply from the power outlet. The magnetic
USB-C adapter can be left in the transmitter USB port for future use.
