Chapter 3 VisionMaster Ship’s Manual
Support Casting Installation
3–62 65900011
6.4.2 Support Casting
The Support Casting is fitted to the Turning Unit torque tube using Fixing Kit
65612611, which is part of the Antenna Despatch Kit 65612610.
Figure 3.43 shows how these are fitted. Ensure that all threads and bushes
are coated with Denso paste.

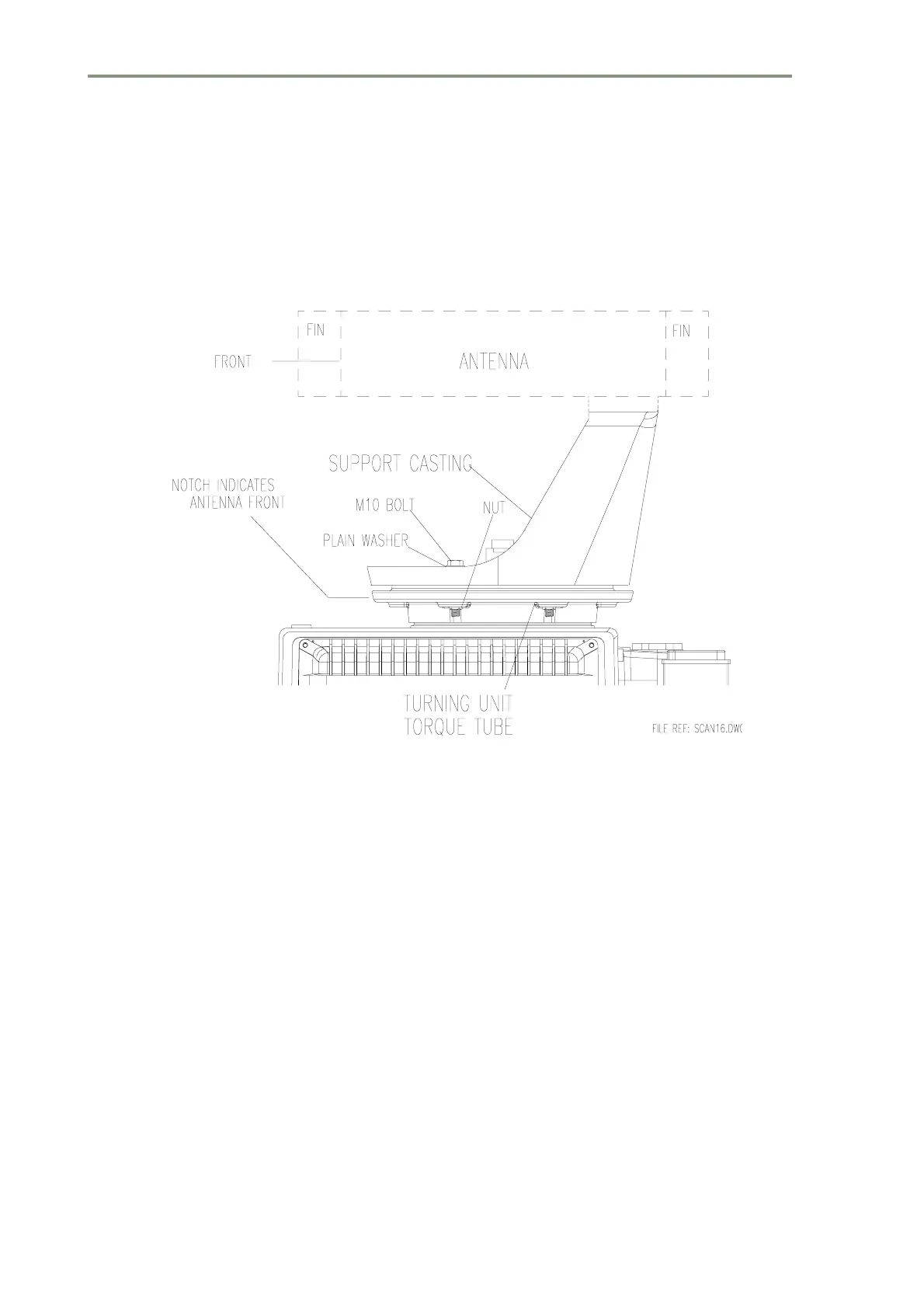

Figure 3.43 Fixing the Support Casting to the Torque Tube
6.4.3 Performance Monitor
The Performance Monitor consists of the Antenna, the Performance Monitor
module and an associated cable. The equipment is normally factory fitted.
6.4.4 Antenna
The Antenna is fitted to the Support Casting using the parts listed below
which are supplied with the antenna:
Figure 3.44 shows where these are fitted. Make sure all threads and bushes
are coated with Denso Paste. For full fitting instructions see drawing
65830052 supplied with the equipment.
4 x M12 Plain Nuts
6 x Spacers
2 x Lock Tabs
