Parts Lists Waukesha Cherry-Burrell
®
Brand W70 Series Mix Proof Valves
Page 62 95-03087 10/2023

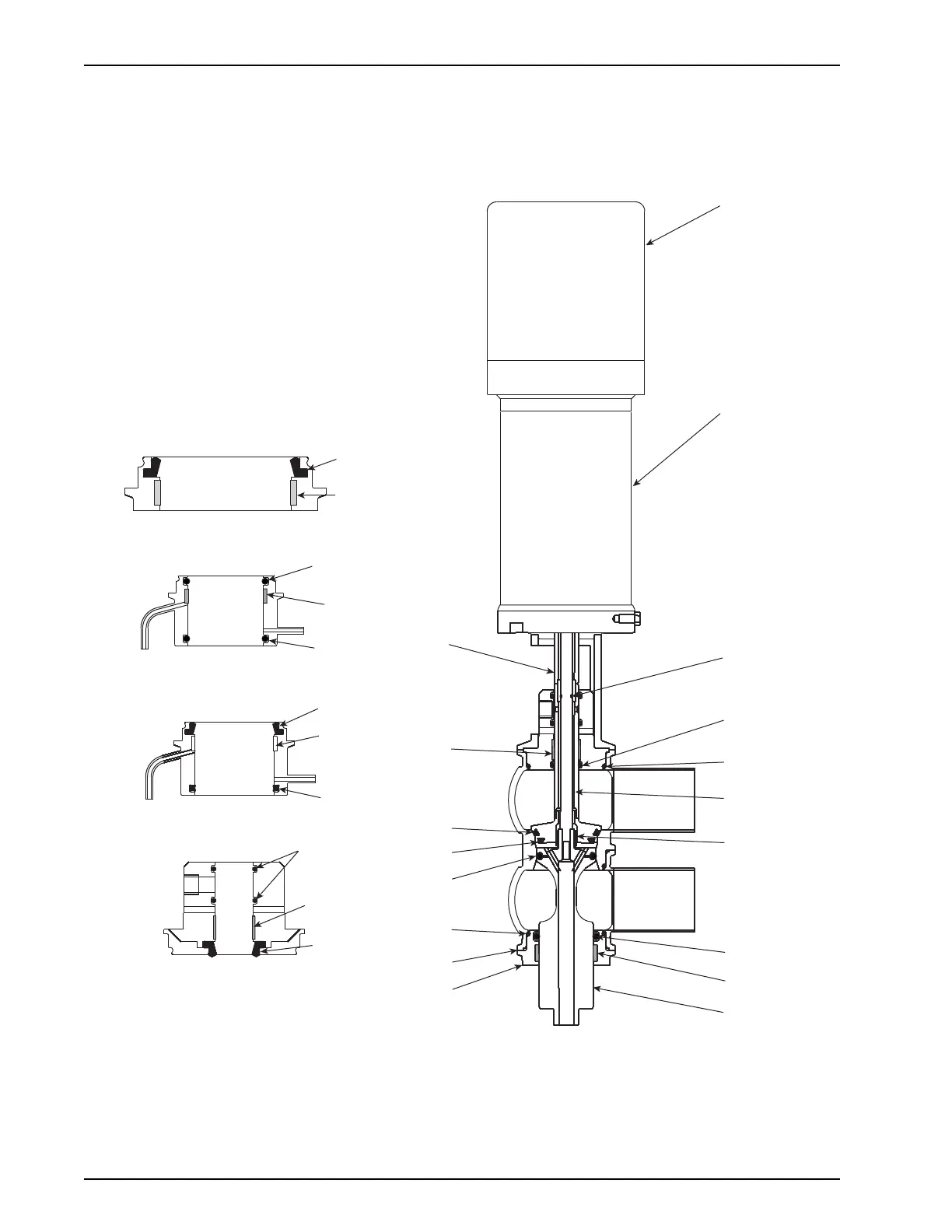

W72RS Mix Proof Non-Seat Lift Valve with External Flush
1
3
23
5
21a,
21c
20a/c
8
10
11
12
6
18
17a
14
15
16,
16a
VA100-512
(17d)
VA100-643
14b
15
14a
(20b)
VA100-645
21a
5
21b
(17c)
14b
15
14a
(17b)
VA100-644
15
14b
19
24
