SPX FLOW W70 Series - W72 RS MIX Proof Non-Seat Lift Valve with Steam Adapter

96 pages

Save Page as PDF

To Next Page

To Previous Page

Parts Lists Waukesha Cherry-Burrell

Brand W70 Series Mix Proof Valves

Page 64 95-03087 10/2023

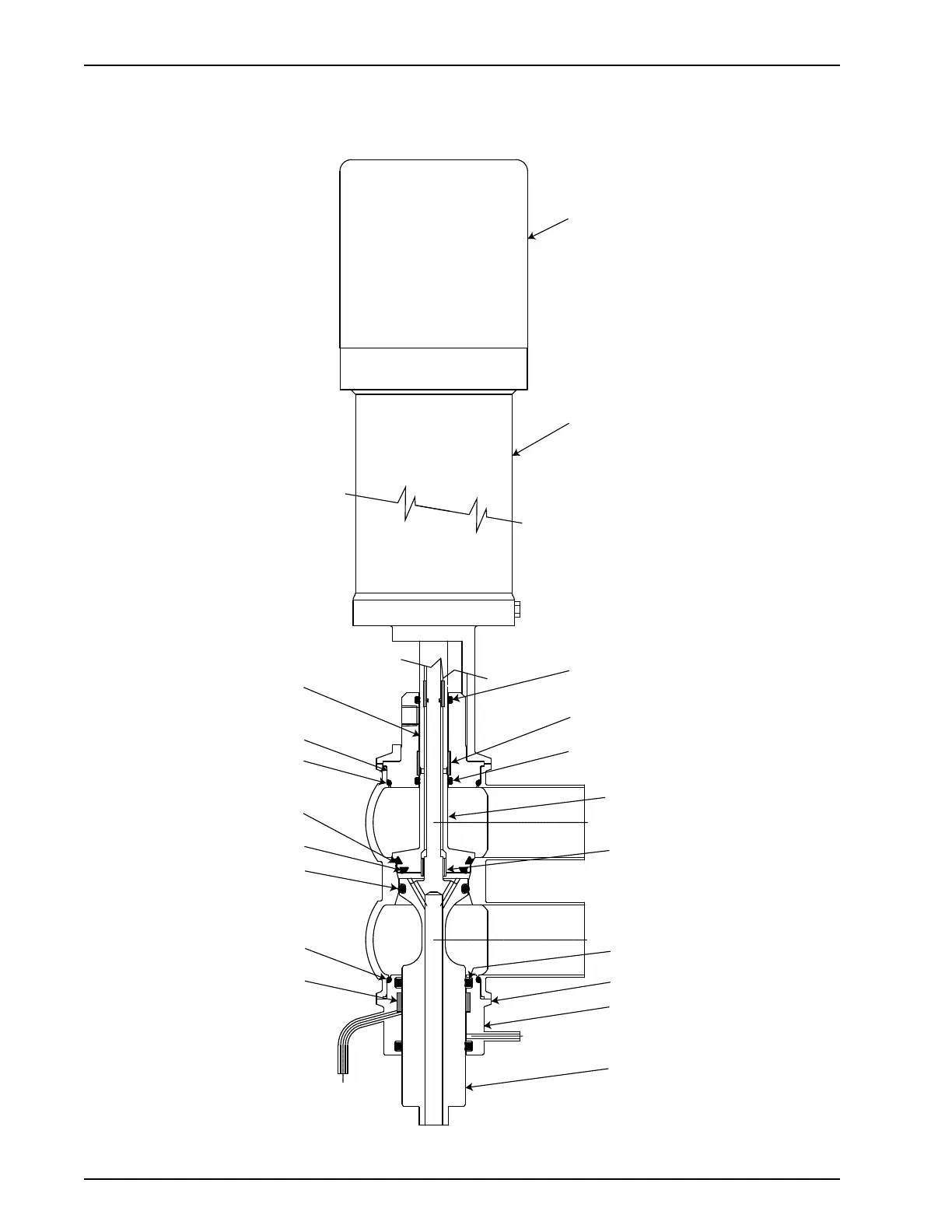

W72RS Mix Proof Non-Seat Lift Valve with Steam Adapter

21a,21c

17c

16a

VA100-726

20a/c

14a
