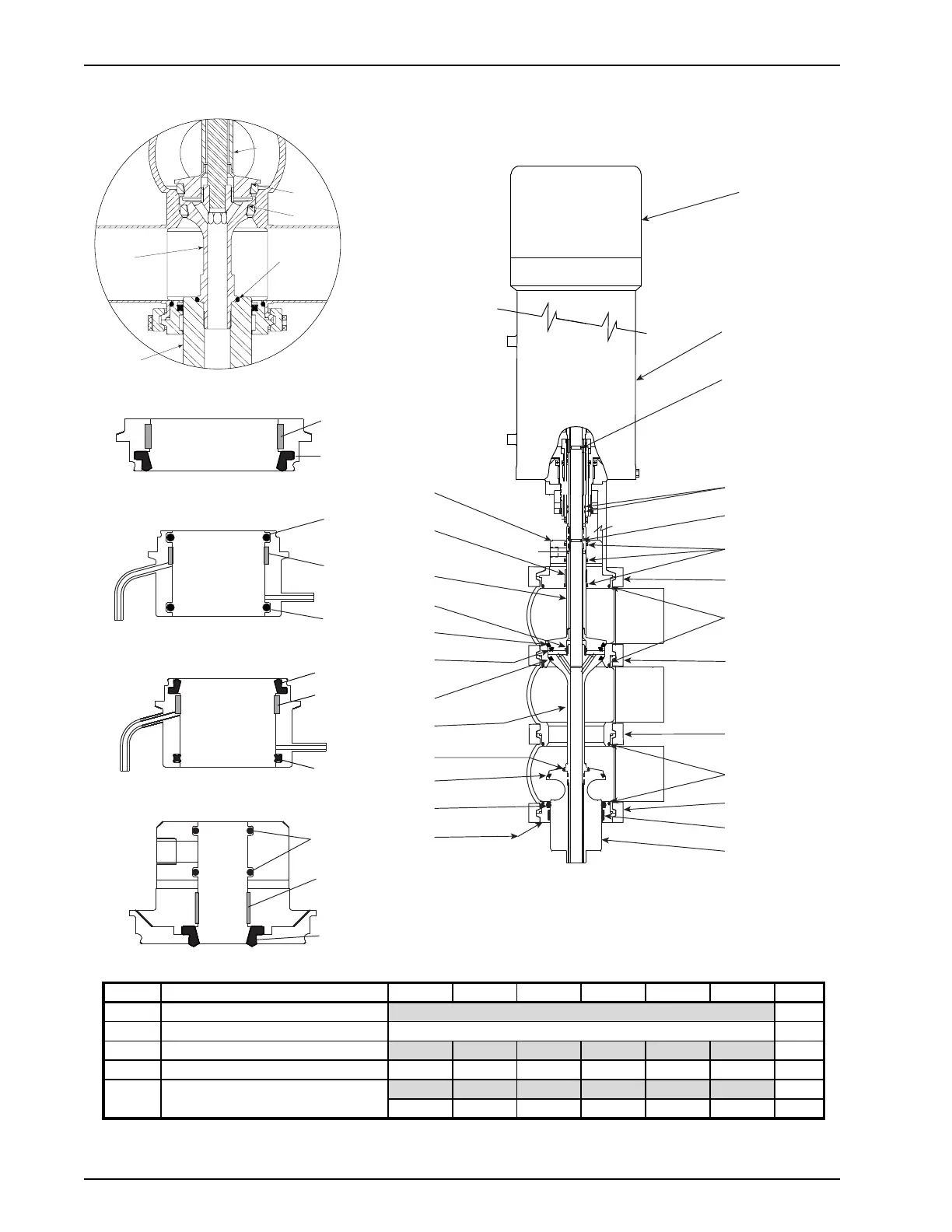

W73 Divert Mix Proof Seat Lift Valve with External Flush
* Recommended Spare Parts
VA100-420
(17c)
14a
15
14a
(17b)
VA100-644
15
14b
(20b)
VA100-645
21a
5
21b
(17d)
VA100-643
14b
15
14a
8a
10a
11
12a
39
14a
17a
38, 38b
37a
19
5
20a
1
4
3
23
26
21a
6
15
16,
16a
18
18
18
18
6
VA100-717
16b
10b
12b
16b.2
16b.1
8b
Tef Flow
®
P Design
Item # 1-1/2" 2" 2-1/2" 3" 4" 6"
Notes
1 Control Top
3 Actuator
*
4 O-ring (not shown) Nitrile
N70010 N70010 N70111 N70111 N70111 N70111
*
5 Bearing
102757+ 102757+ 106047+ 106047+ 106047+ 101995+
6 O-ring, Body (qty 4 req) EPDM
E70223 E70228 E70232 E70236 E70244 E70258
FKM
V70223 V70228 V70232 V70236 V70244 V70258
PL5027-CH56a
*
Part Description
Contact Factory
See actuator parts list
