SPX FLOW W70 Series User Manual

Parts Lists Waukesha Cherry-Burrell
®
Brand W70 Series Mix Proof Valves
Page 86 95-03087 10/2023

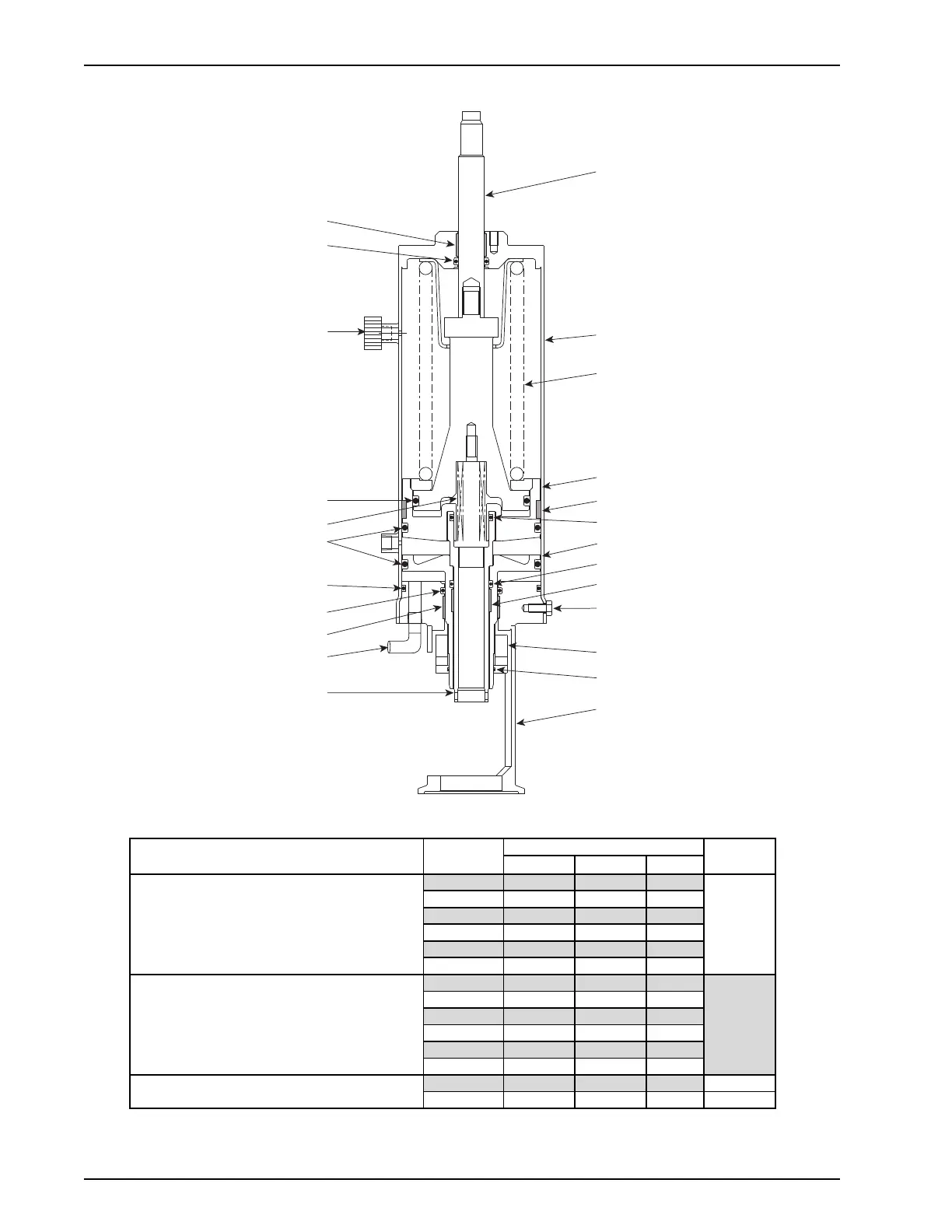

W72RS/W72RSP Seat Lift Actuator
3. For yokes with 3rd prox. switch, please contact factory.
4
5
6
7
8
9
10
11
11
12
14
33
17
18
20
22
23
24
26
29
VA100-487
30
1,
1a,
1b
16
15
4" Dia.
1
6" Dia.
1
8" Dia.
1
Air-to-Raise Visual Indicator Stem
1-1/2" ACT00337 -- --
2" ACT00338 -- --
2-1/2" -- ACT00339 --
3" -- ACT00340 --
4" -- ACT00341 --
6" -- -- POA
Control Top Indicator Stem
1-1/2" ACT00347 -- --
2" ACT00348 -- --
2-1/2" -- ACT00349 --
3" -- ACT00350 --
4" -- ACT00351 --
6" -- -- POA
2-1/2 & 3" -- 126096+ -- --
4" -- 126097+ -- --
PL5027-64a
W72RS/W72RSP Complete Actuator Assemblies (see note 3)
Control Top Indicator Stem - Tank Outlet Valve
For Valve
Size
POA
POA
Part Description W72RSP
W72RS
