Installation Tools Waukesha Cherry-Burrell
®
Brand W70 Series Mix Proof Valves
Page 90 95-03087 10/2023

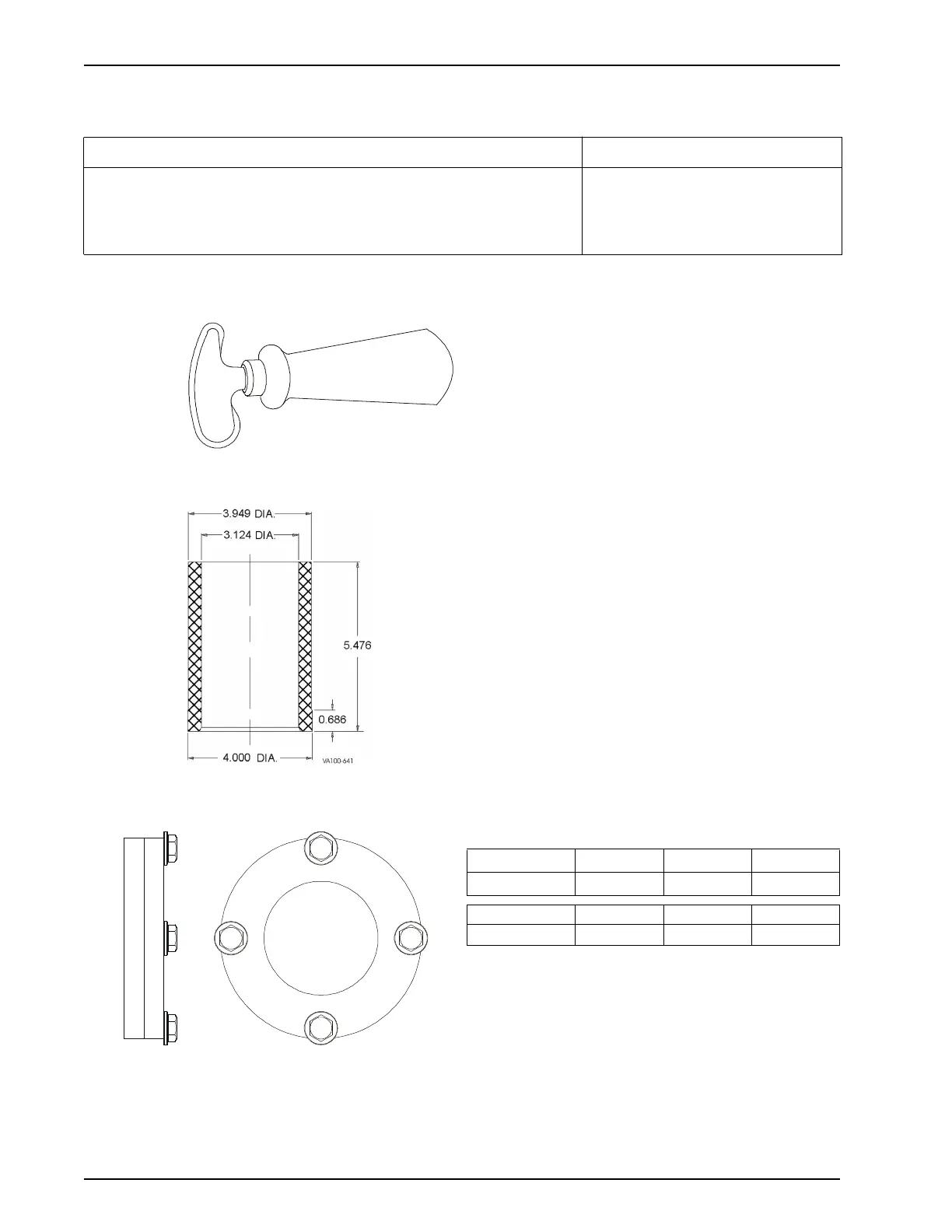

Installation Tools
Item Used with Valve Model
Tri Ring Tool (page 90)
4" Diameter Actuator Rebuild Insertion Sleeve (page 90)
Radial Seal Insertion Collar Tool (page 90)
Tef Flow® P Seat Installation/Removal Kits (starting on page 91)
W71 / W72RS / W73
W71 / W73
W72RS / W72RSP
W71, Tef Flow® P Design
Tri Ring Tool (for W71 / W73 and W72RS Valves)
Tri Ring Tool
Part number 102797+
4" Diameter Actuator Rebuild Insertion Sleeve (for W71 / W73 Valves)
NOTE: The insertion sleeve is available using the
part number below, or it can be created by most
machine shops using #6 nylon round stock. See
insertion sleeve dimensions shown at left.
• Material is #6 nylon round stock.
• Bevel the inside and outside end corners.
4" Actuator Rebuild Insertion Sleeve
Part number 111840+
Radial Seal Insertion Collar Tool (for W72RS and W72RSP Valves)
Valve Size 1-1/2" 2" 2-1/2"
Part No. 120048+ 120049+ 120051+
Valve Size 3" 4" 6"
Part No. 120053+ 120055+ 120057+
* W72RSP Valves only require the 4" tool.
