SPX FLOW W70 Series User Manual

Waukesha Cherry-Burrell
®
Brand W70 Series Mix Proof Valves Installation Tools
10/2023 95-03087 Page 91
NOTE: For W73 Lower Stem, seat installation tools are available individually; see page 93.
W71/W73 Tef Flow® P Seat Installation/Removal Kits
Tef Flow® P Tool Kits
Part No. (applies to all valve sizes)
W71 (Upper Stem)
W73 (Upper Stem)
W71 (Lower Stem)
W73 (Middle Stem)
W73 (Lower Stem)
Installation Tool Kit 132356+ 132357+ See Note
Removal Tool Kit 132990+ 132947+ 133470+
W71/W73 Upper Stem Tef Flow® P Seat Installation Kit 132356+
Item Description Qty Part No.
1 Install Base Tool, Upper Stem Insert 1 131301+
2 Upper Stem Seat Install Tool (Aluminum) 1 131884+
3 Locator Pin (Aluminum) 1 131885+
4* Stem Sleeve Plug Tool, 2" ODT Valve 1 131305+
5 Puck 1 132899+
* applies to 2" ODT valve size only.
W71 Lower Stem/W73 Middle Stem Tef Flow® P Seat Removal Kit 132990+
Item Description Qty
Part No.
1 Install Base Tool, Upper Stem Insert 3
131301+
2
Upper Stem Seat Removal Tool, 2" ODT Valve 1
132983+
Upper Stem Seat Removal Tool, 2.5" ODT /
2" Sch.5 Valve
1 132982+
Upper Stem Seat Removal Tool, 3" Valve 1
132981+
Upper Stem Seat Removal Tool, 4" Valve 1
132980+
3* Stem Sleeve Plug Tool, 2" ODT Valve 1
131305+
* applies to 2" ODT valve size only.

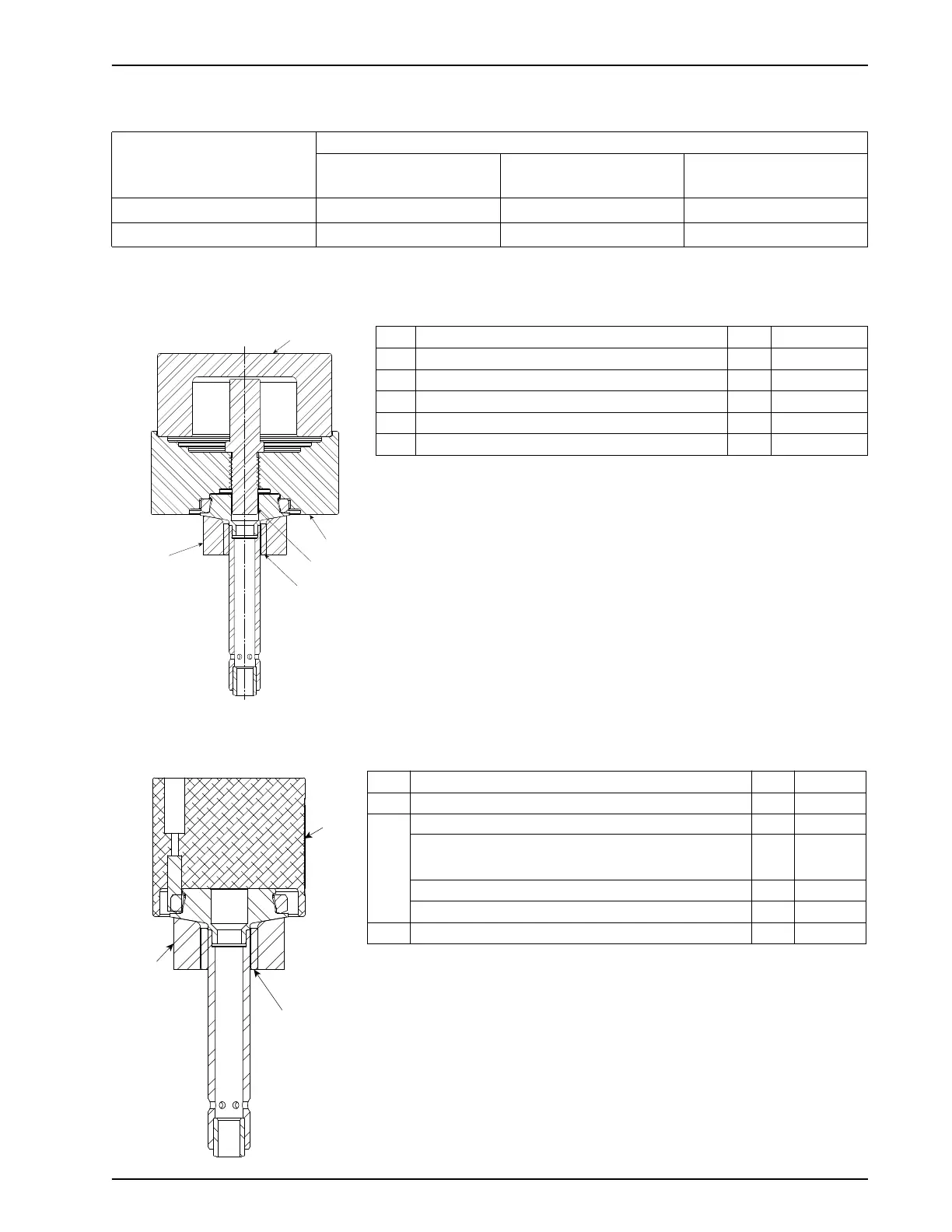

VA100-810
4*
5
3
1
a
2
VA100-809
2
1
3*
a
