SPX FLOW W70 Series User Manual

Installation Tools Waukesha Cherry-Burrell
®
Brand W70 Series Mix Proof Valves
Page 92 95-03087 10/2023

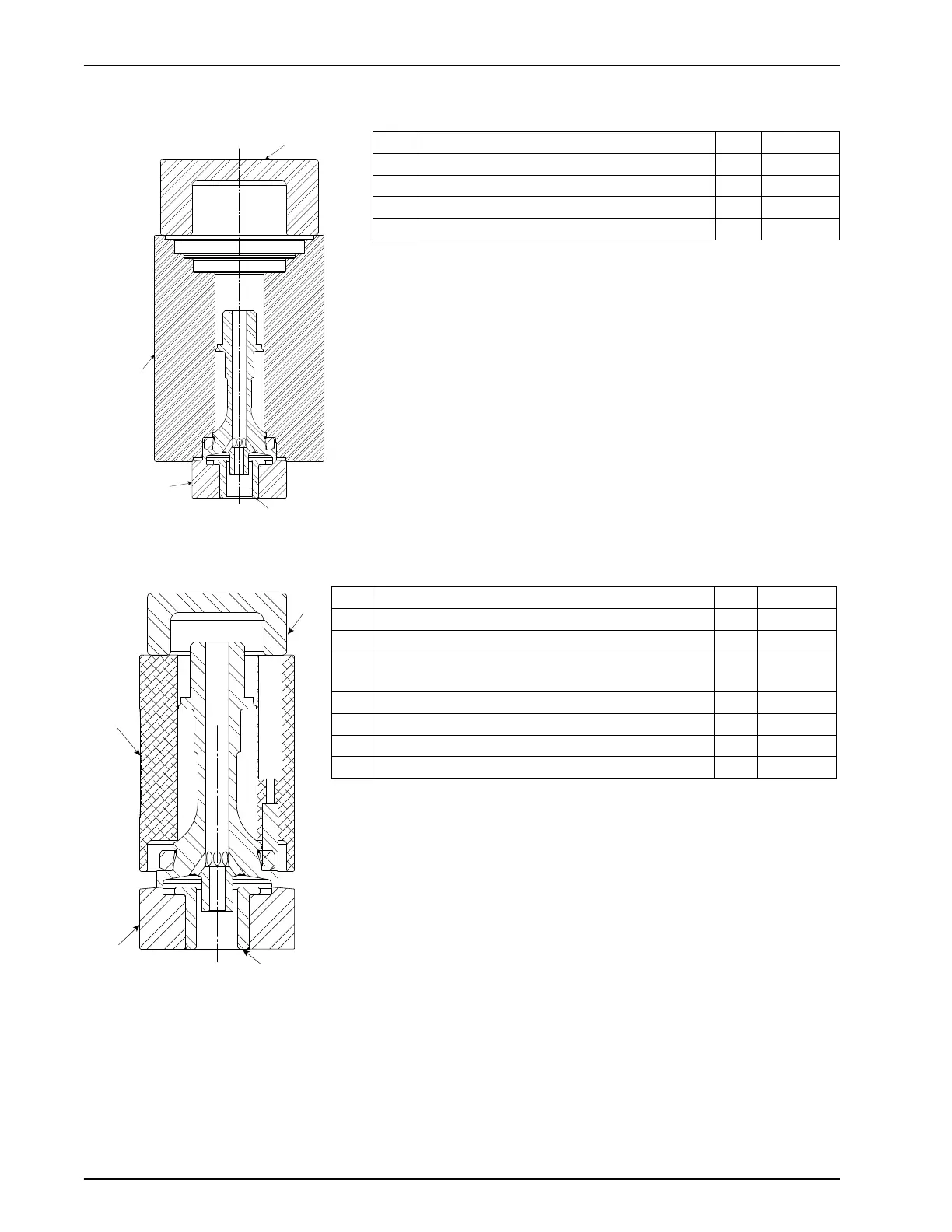

W71/W73 Upper Stem Tef Flow® P Seat Installation Kit 132357+
Item Description Qty Part No.
1 Install Base Tool, Lower Stem Insert 1 131302+
2 Upper Stem Seat Tool 1 131886+
3* Install Base Plug Tool, 2" ODT Valve 1 131303+
4 Puck 1 132899+
* applies to 2" ODT valve size only.
W71 Lower Stem/W73 Middle Stem Tef Flow® P Seat Removal Kit 132947+
Item Description Qty
Part No.
1* Base Plug Tool, 2" ODT Valve 1
131303+
2 Lower Stem Seat Removal Tool, 2" ODT Valve 1
132910+
Lower Stem Seat Removal Tool, 2.5" ODT /
2" Sch. 5 Valve
1
132909+
Lower Stem Seat Removal Tool, 3" Valve 1
132908+
Lower Stem Seat Removal Tool, 4" Valve 1
132907+
3 Puck 4
132900+
4 Install Base Tool, Lower Stem Insert 4
131302+
* applies to 2" ODT valve size only.
VA100-812
3*
4
2
1
a
VA100-811 a
1*
3
4
2
