Chapter 4. Installing the CS4000 Mini Controller with Ethernet
May 2002 T-38324-A Page 4-3
Power and Connection-Requirements
WARNING! 230 VAC SINGLE PHASE INPUT ONLY. Internal capacitors
store a high voltage charge and discharge slowly after
external power is removed.
Figure 4-2 shows the power supply and connection requirements of the CS4000 Mini Controller with
Ethernet.

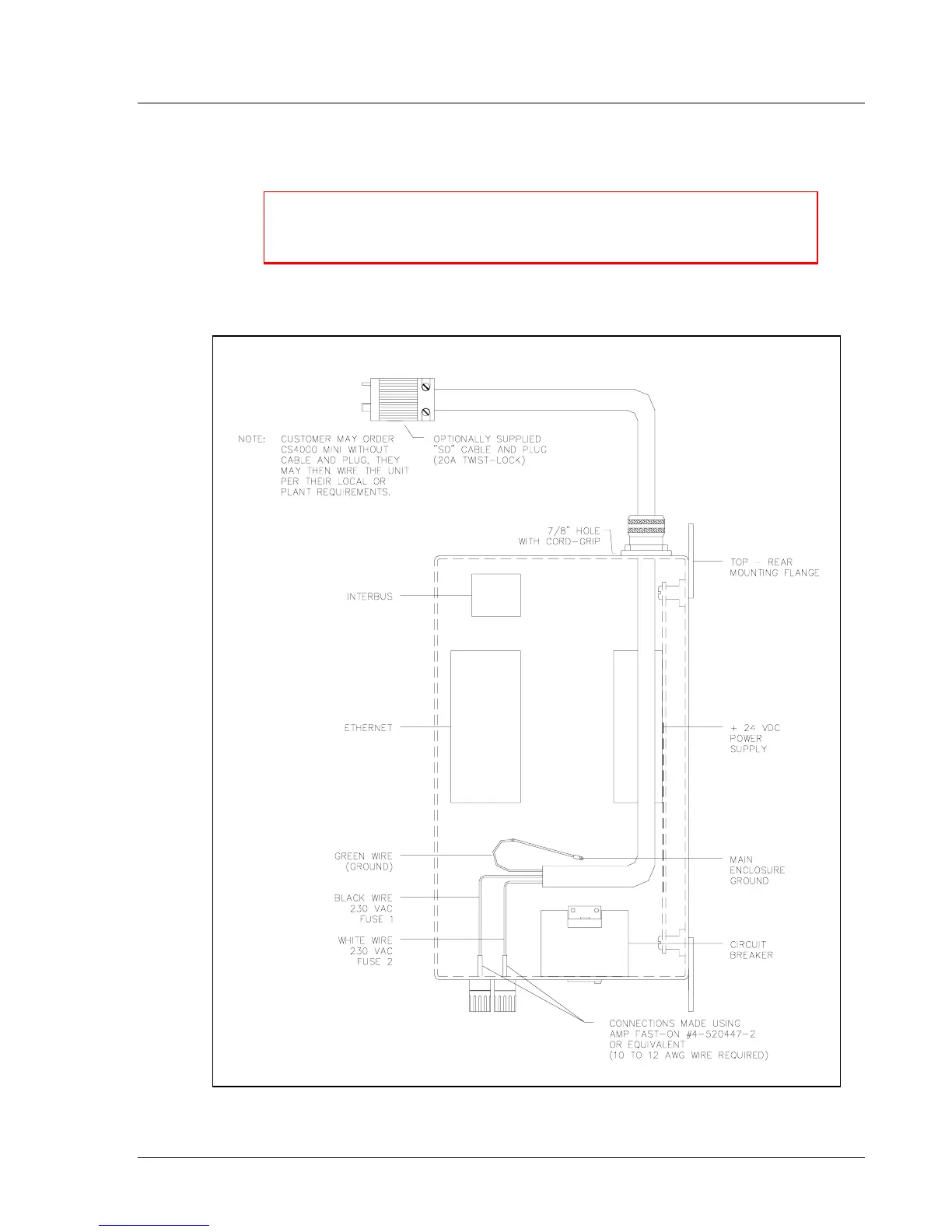

Figure 4-2. Power/Connection Requirements
