SPX CS4000 Mini - RS-422 Connector; Tool Control Module (TCM) Network Connector; RS-232 Connector; Printer;Barcode Connector

CS4000 Mini Controller with Ethernet
Page
4-12
T-38324-A 39-30-38324

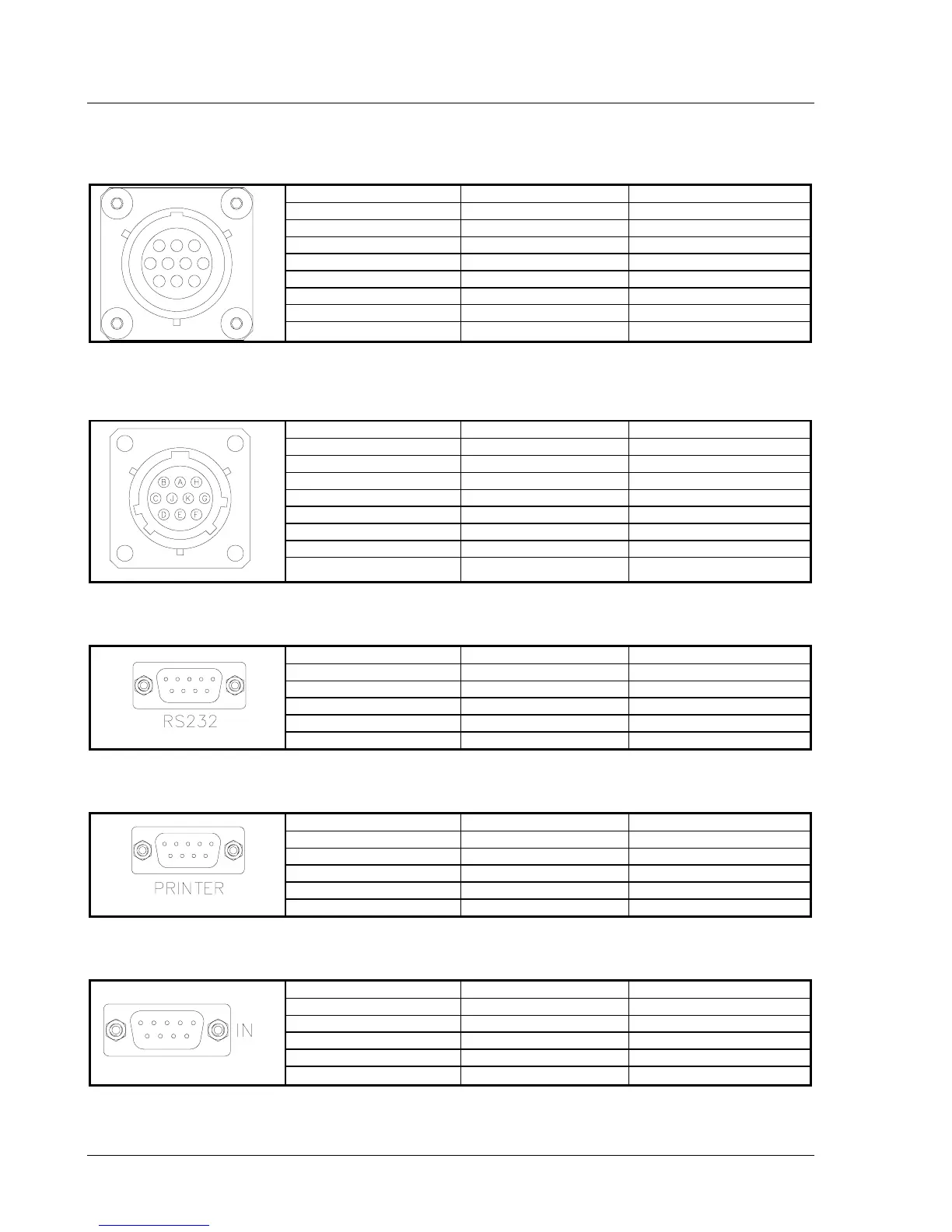

RS-422 Connector
Pin Designation Wire Color (Ref) Function
A BRN/WHT TXD+ OUT
B WHT/BRN TXD- OUT
C ORN/WHT RXD+ IN
D WHT/ORN RXD- OUT
E GRN/WHT Not used
F WHT/GRN Not used
G BLU/WHT SHIELD COMMON
DEF
G
K
J
C
HAB
HGRNSHIELD
Tool Control Module (TCM) Network Connector
Pin Designation Wire Color (Ref) Function
A BRN/WHT TXD+ OUT
B WHT/BRN TXD- OUT
C ORN/WHT RXD+ IN
D WHT/ORN RXD- OUT
E GRN/WHT CLK+ OUT
F WHT/GRN CLK- OUT
G BLU/WHT SHIELD COMMON
HGRNSHIELD
RS-232 Connector
Pin Designation Wire Color (Ref) Function
2BLURXD
3GRNTXD
5BLKGND
7REDRTS
8YELCTS
Printer/Barcode Connector
Pin Designation Wire Color (Ref) Function
2BLURXD
3GRNTXD
5BLKGND
7REDRTS
8YELCTS
Interbus-S “IN” Connector
Pin Designation Wire Color (Ref) Function
1YLDO1
2GYDI1
3 BRN GND1
6 GRN Not DO1
7PKNot DI1
