Cartridge Seal Dimensions

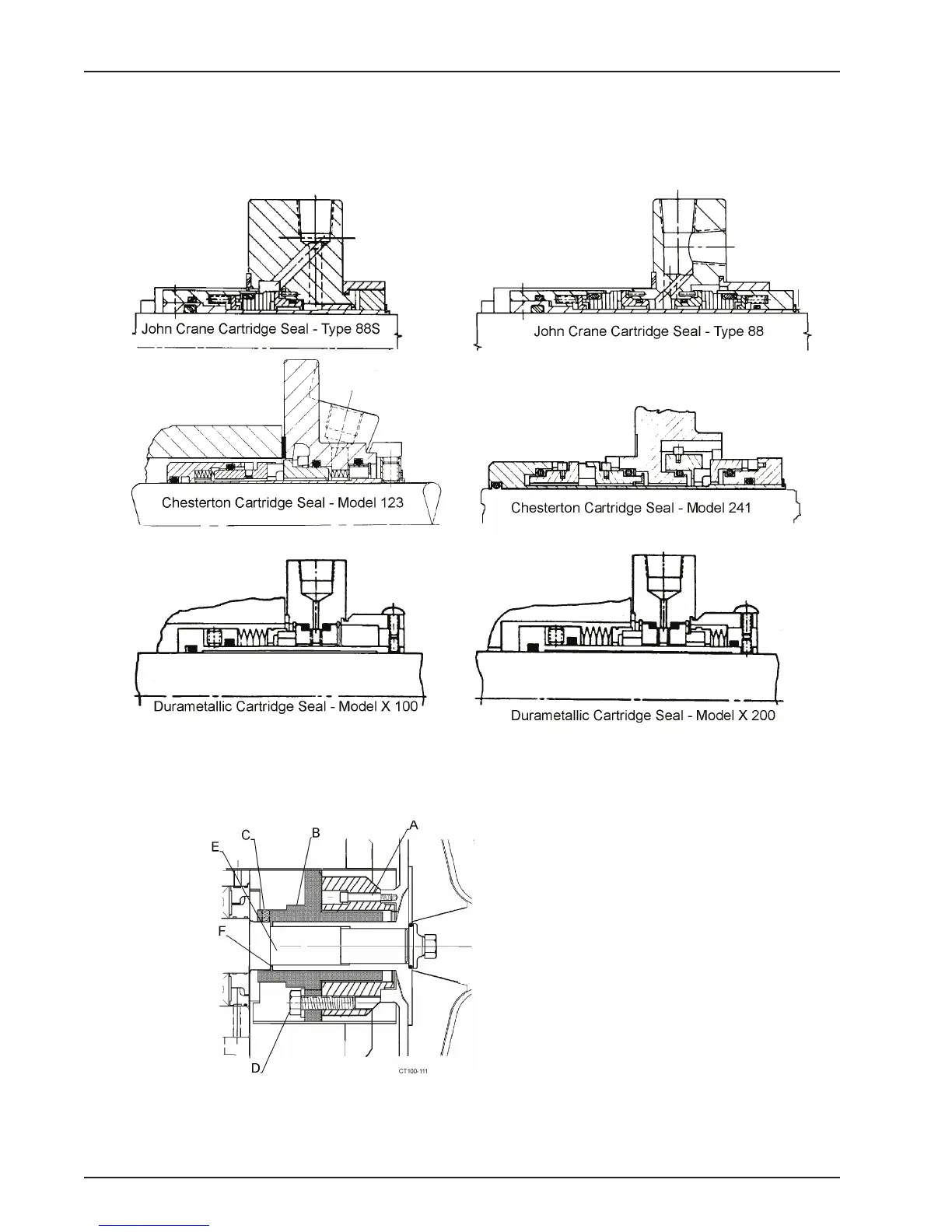

The following pictorial list of cartridge seals is provided to assist in identifying some of the seals provided with
the Model S200 centrifugal pumps. Use of these cartridges requires a cartridge seal adapter.
Figure 65 - Installed Cartridge Seal
Figure 66 - Typical Cartridge Seal Installation
A. Socket Head Cap Screw
B. Cartridge Seal Assembly
C. Set Screw (2)
D. Cap Screw
E. Bearing Shaft
F. Clearance Shims
