SPX S2045 - S2085;2085 LV Components (Close Coupled)

Parts Lists Waukesha Cherry-Burrell
Page 60 95-03080 12/2010

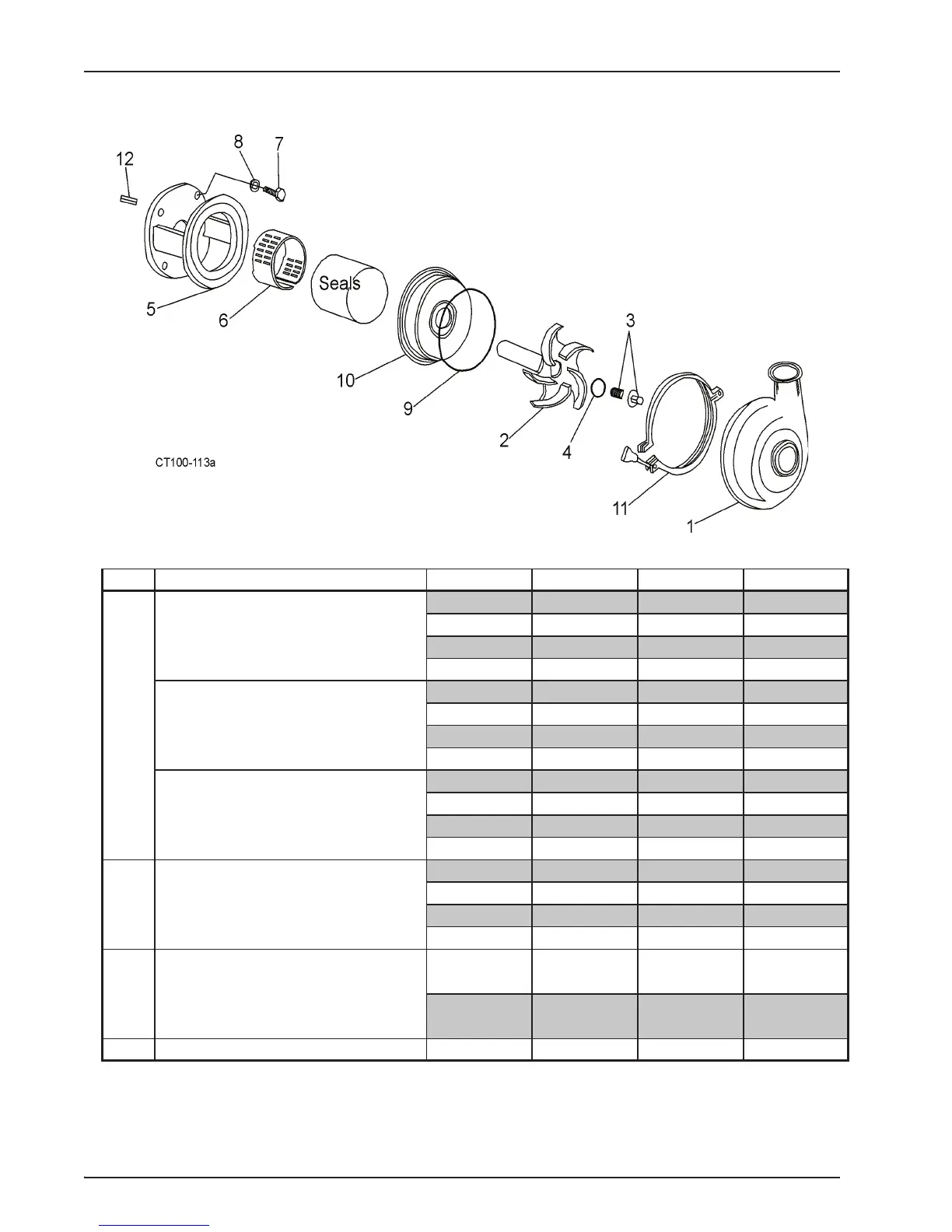

S2085/2085LV Components (Close Coupled)
ITEM # 20RA 15RA 15RA EP 20RA EP
S2085LV 2015 Solid Bar Casing S-Line CENTPT00300 CENTPT00087 CENTPT00086 CENTPT00088
Buttweld CENTPT00523 CENTPT00090 CENTPT00089 CENTPT00091
150# Flange CENTPT00524 CENTPT00093 CENTPT00092 CENTPT00094
DIN CENTPT00525 CENTPT00096 CENTPT00095 CENTPT00097
S2085 3025 Solid Bar Casing S-Line CENTPT00526 CENTPT00099 CENTPT00098 CENTPT00100
Buttweld CENTPT00527 CENTPT00102 CENTPT00101 CENTPT00103
150# Flange CENTPT00528 CENTPT00105 CENTPT00104 CENTPT00106
DIN CENTPT00529 CENTPT00108 CENTPT00107 CENTPT00109
S2085 4025 Solid Bar Casing S-Line CENTPT00530 CENTPT00111 CENTPT00110 CENTPT00112
Buttweld CENTPT00531 CENTPT00114 CENTPT00113 CENTPT00115
150# Flange CENTPT00532 CENTPT00117 CENTPT00116 CENTPT00118
DIN CENTPT00533 CENTPT00120 CENTPT00119 CENTPT00121
S2085LV Impellers Small Bore CENTPT00728 CENTPT00306 CENTPT00302 CENTPT00729
Large Bore CENTPT00730 CENTPT00731 CENTPT00732 CENTPT00733
S2085 Impellers Small Bore CENTPT00721 CENTPT00722 CENTPT00723 CENTPT00724
Large Bore CENTPT00725 CENTPT00726 CENTPT00727 CENTPT00448
Standard (129-771X) Retainer Nut
Small Bore (143/215) CENTPT00538 CENTPT00539 CENTPT00540 CENTPT00541
Standard (129-772X) Retainer Nut
Large Bore (324/365TC, 254/326JM) CENTPT00543 CENTPT00544 CENTPT00542 CENTPT00451
10
S2085LV/S2085 Backplate CENTPT00739 CENTPT00740 CENTPT00741 CENTPT00430
CT100-188a
