Motor Adapter
• Made of epoxy-coated cast iron
• Used to mount a standard NEMA C-face motor onto bearing
housing
• Used to provide an accurate, rigid shaft alignment
• Used in style "B" arrangements
Stand
• The stand (pedestal) is made of epoxy-coated cast iron.
• The stand attaches under the motor adapter or bearing
housing.
Base (Optional)
• The epoxy-coated channel base is used in style "B" & "C"
arrangements. See “Table of Base Size Used on Pedestal-
Mounted Centrifugal Pumps” on page 19.

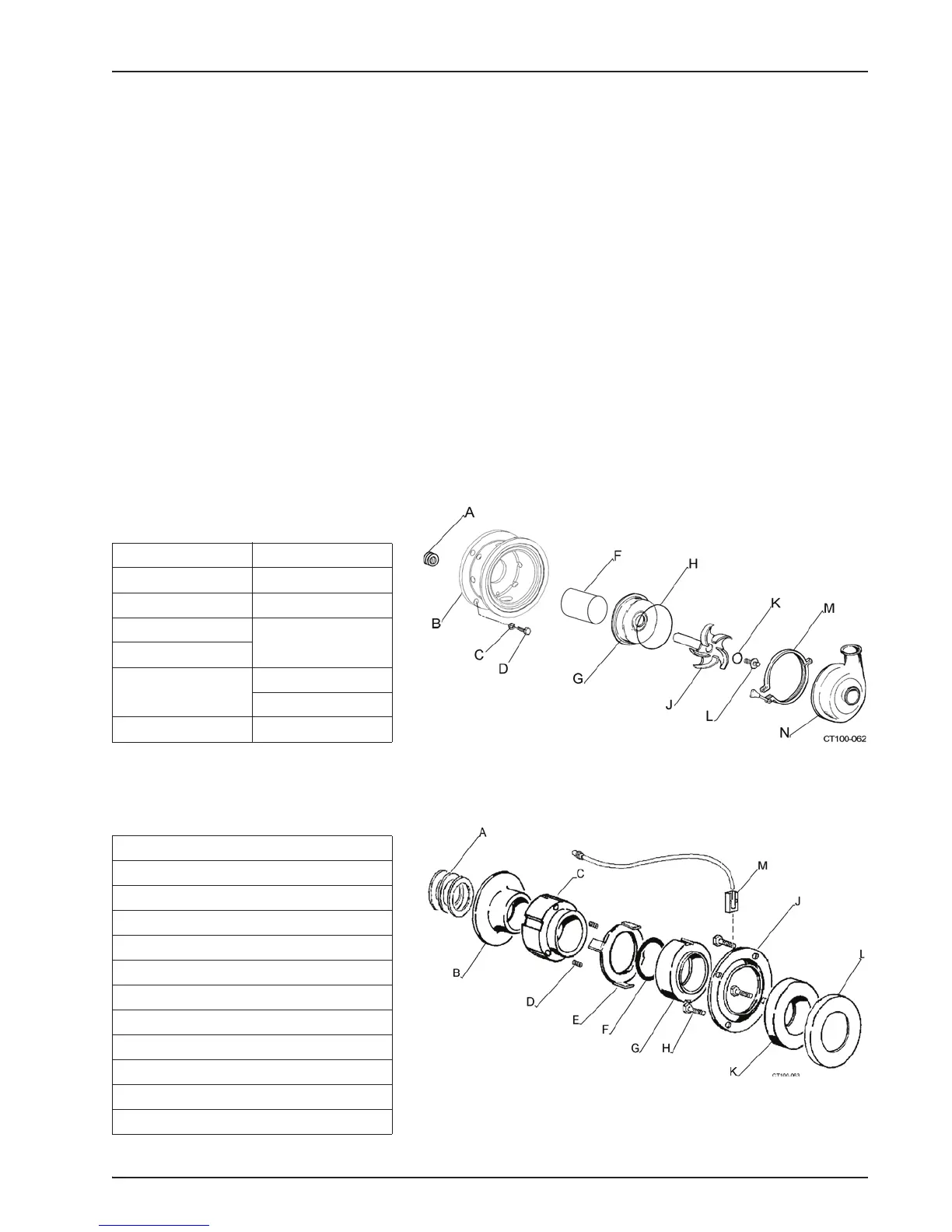

Figure 3 - Common Part Identification
Figure 4 - Common Part Identification
Table 1: Callout Table for Figure 3
A. Motor Shims H. O-ring
B. Motor Adapter J. Impeller
C. Lock Washer K. O-ring
D. Cap Screws
L. Impeller
Retainer
E. Seal Guard
F. Seals (detail
not shown)
M. Clamp
N. Casing
G. Backplate
Table 2: Callout Table for Figure 4
A. Motor Shims
B. Deflector
C. Spring Retainer
D. Springs
E. Tabbed Washer
F. O-ring
G. Rotary Seal
H. Cap Screws
J. Seat Retainer
K. Stationary Seal
L. L-gasket
M. Water Cascade Block
