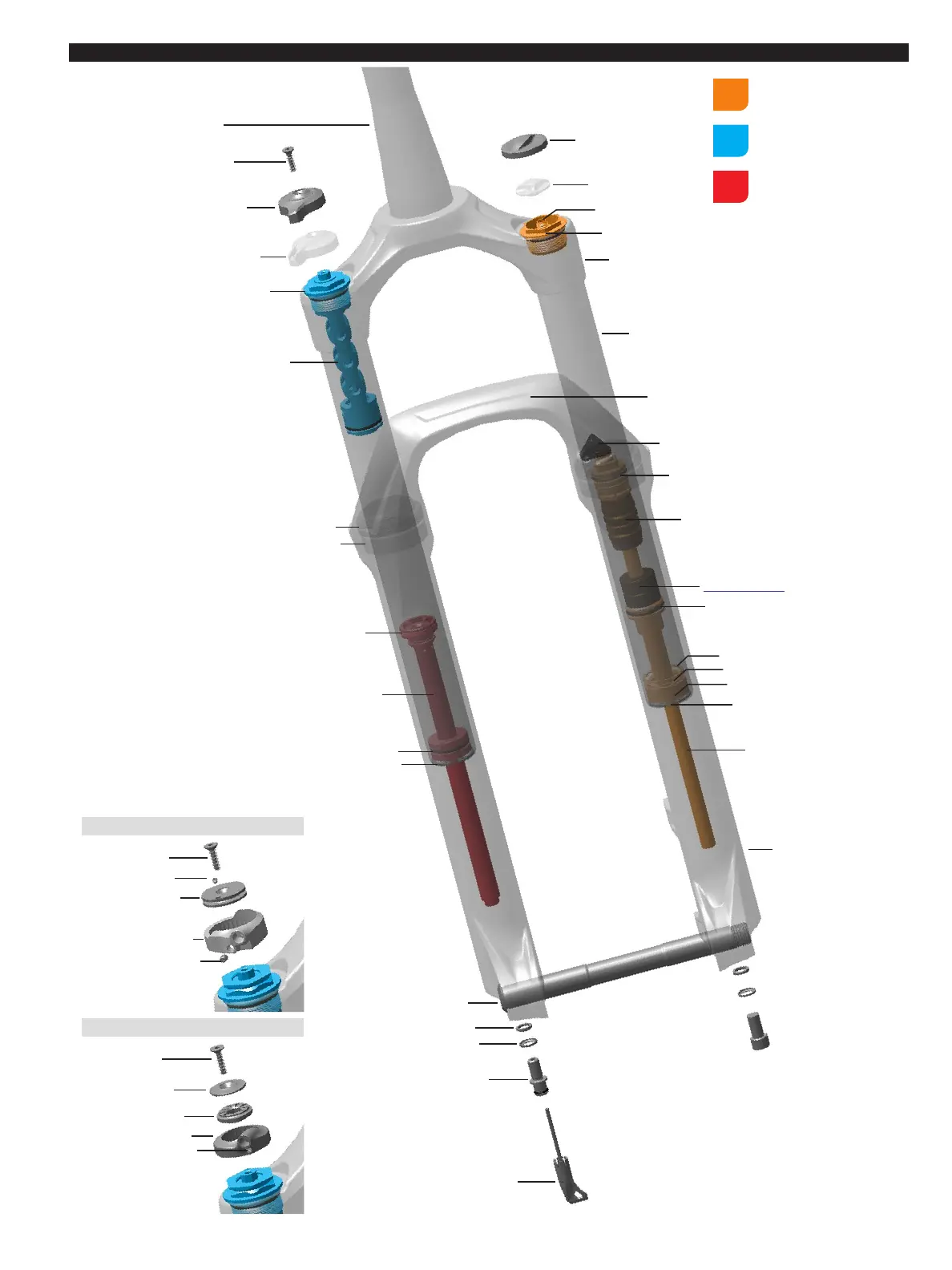

Exploded View - 2018-2021 Judy Gold RL - Solo Air
Exploded View - 2018-2021 Judy Gold RL - Solo Air
Retaining screw
Compression damper top cap
Compression damper
Dust wiper seal
Foam ring
Rebound damper piston
Rebound damper shaft
Rebound damper seal head
Retaining ring
Crush washer retainer
Bottom bolt
Rebound adjuster knob
Air valve
Air spring top cap
Arch
Air spring piston
Top out bumper
Lower leg
Retaining washer
Base plate
Negative air seal head
Retaining ring
Air spring shaft
Air Spring Assembly
Compression Damper
Assembly
Rebound Damper
Assembly
Brake hose guide
Crush washer
All-Travel spacer (optional)
Crown
Wave spring
Maxle Stealth
Compression adjuster knob
(2018)
Compression adjuster knob
(2019-2021)
Steerer tube
Air cap (2019-2021)
Air cap (2018)
2018-2019 Judy Gold RL R
Retaining screw
Upper remote spool
Cable stop collar
Set screw
Lower remote spool
2020-2021 Judy Gold RL R
Retaining screw
Remote spool
Cable stop collar
Set screw
Set screw
Upper tube
