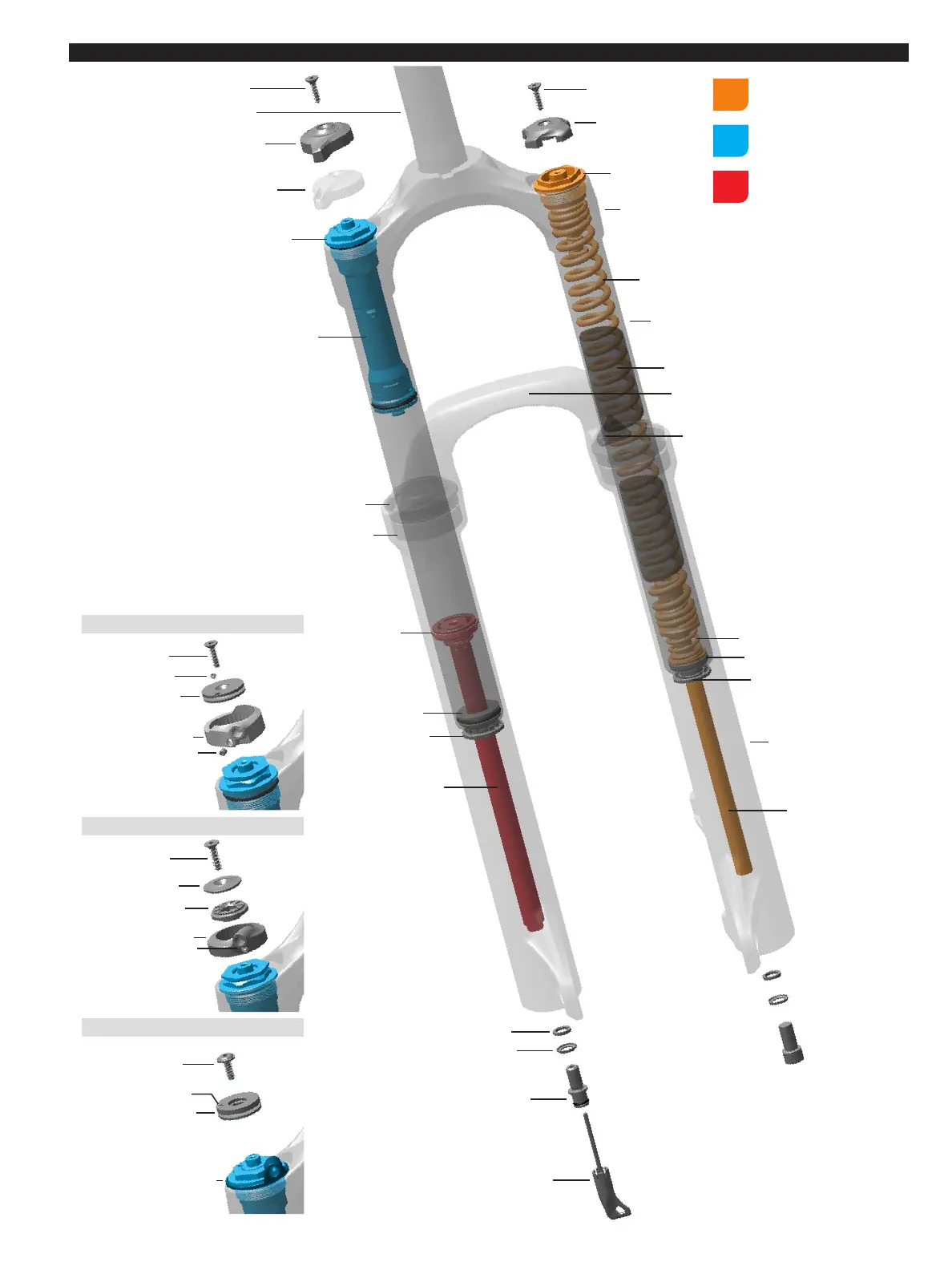

Exploded View - 2018-2020 30 Silver TK / 2021 Judy Silver TK - Coil
Exploded View - 2018-2020 30 Silver TK / 2021 Judy Silver TK - Coil
Retaining screw
Compression adjuster knob
(2018)
Compression adjuster knob
(2019-2021)
Compression damper top cap
Compression damper
Dust wiper seal
Foam ring
Rebound
damper piston
Rebound damper shaft
Rebound damper
seal head
Crush washer
Crush washer retainer
Bottom bolt
Rebound adjuster knob
Steerer tube
Retaining screw
Spring top cap
Lower leg
Coil spring shaft
Crown
Preload adjuster knob
Coil spring
Brake hose guide
Shaft guide
Negative spring
Retainer
Upper tube
Coil spring isolator
Retainer
Coil Spring Assembly
Compression Damper
Assembly
Rebound Damper
Assembly
2018 TK R
Retaining screw
Remote spool
Cable stop
Set screw
2019 TK R
Retaining screw
Upper remote spool
Cable stop collar
Set screw
Lower remote spool
2020-2021 TK R
Retaining screw
Remote spool
Cable stop collar
Set screw
Set screw
Arch
