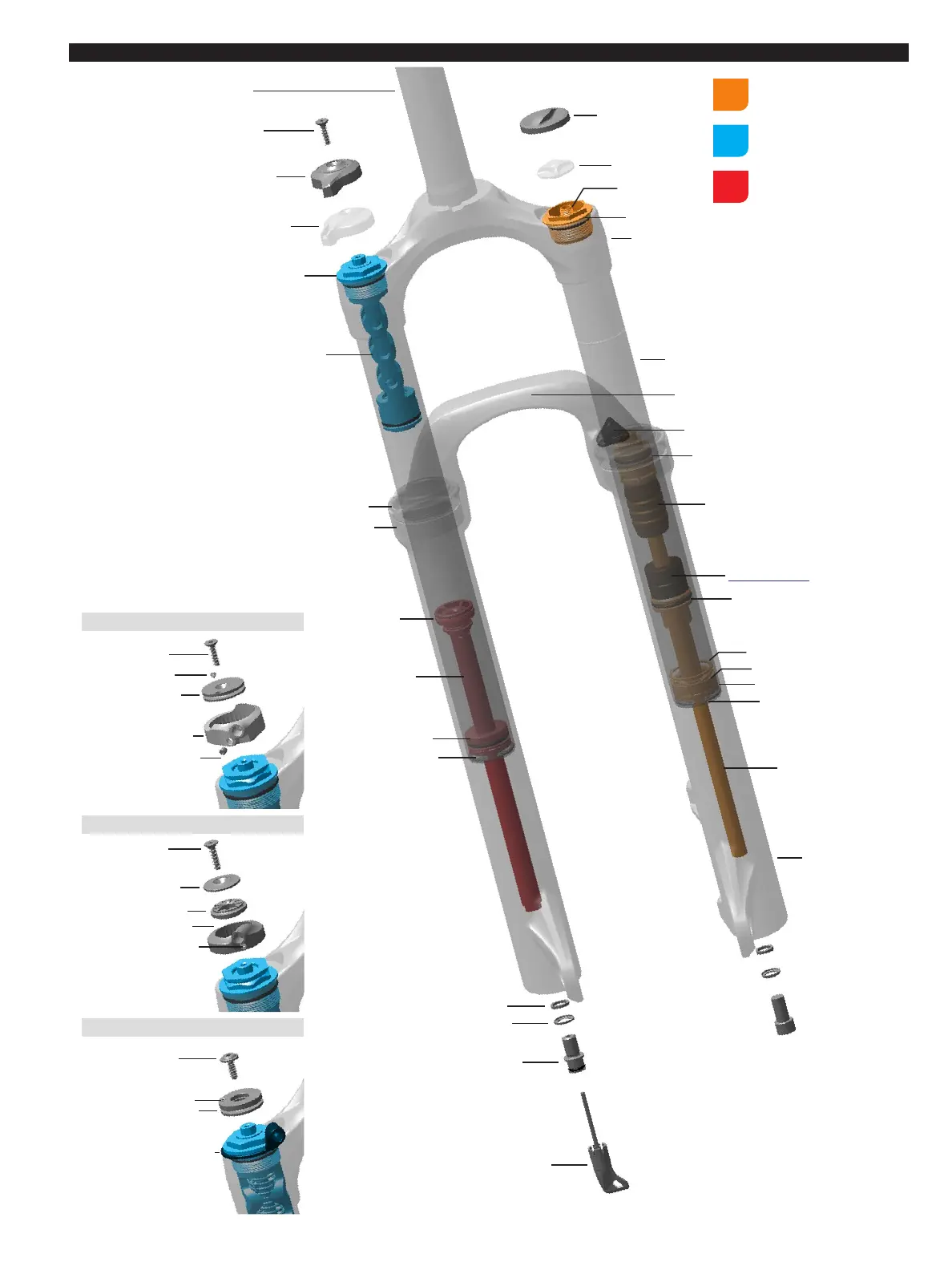

Exploded View - 2018-2020 30 Gold RL / 2021 Judy Gold RL - Solo Air
Exploded View - 2018-2020 30 Gold RL / 2021 Judy Gold RL - Solo Air
Retaining screw
Compression damper top cap
Compression damper
Dust wiper seal
Foam ring
Rebound damper
piston
Rebound
damper shaft
Rebound damper
seal head
Crush washer
Crush washer retainer
Rebound adjuster knob
Steerer tube
Air valve
Air spring top cap
Upper tube
Air spring piston
Top out bumper
Lower leg
Retaining ring
Base plate
Air spring shaft
Negative air seal head
Crown
Air Spring Assembly
Compression Damper
Assembly
Rebound Damper
Assembly
Brake hose guide
Bottom bolt
Retaining washer
Wave washer
All-Travel spacer (optional)
Retaining ring
Compression adjuster knob
(2018)
Compression adjuster knob
(2019-2021)
Air cap (2019-2021)
Air cap (2018)
2018 RL R
Retaining screw
Remote spool
Cable stop
Set screw
2019 RL R
2020-2021 RL R
Retaining screw
Retaining screw
Upper remote spool
Remote spool
Cable stop collar
Cable stop collar
Set screw
Set screw
Set screw
Lower remote spool
Arch
