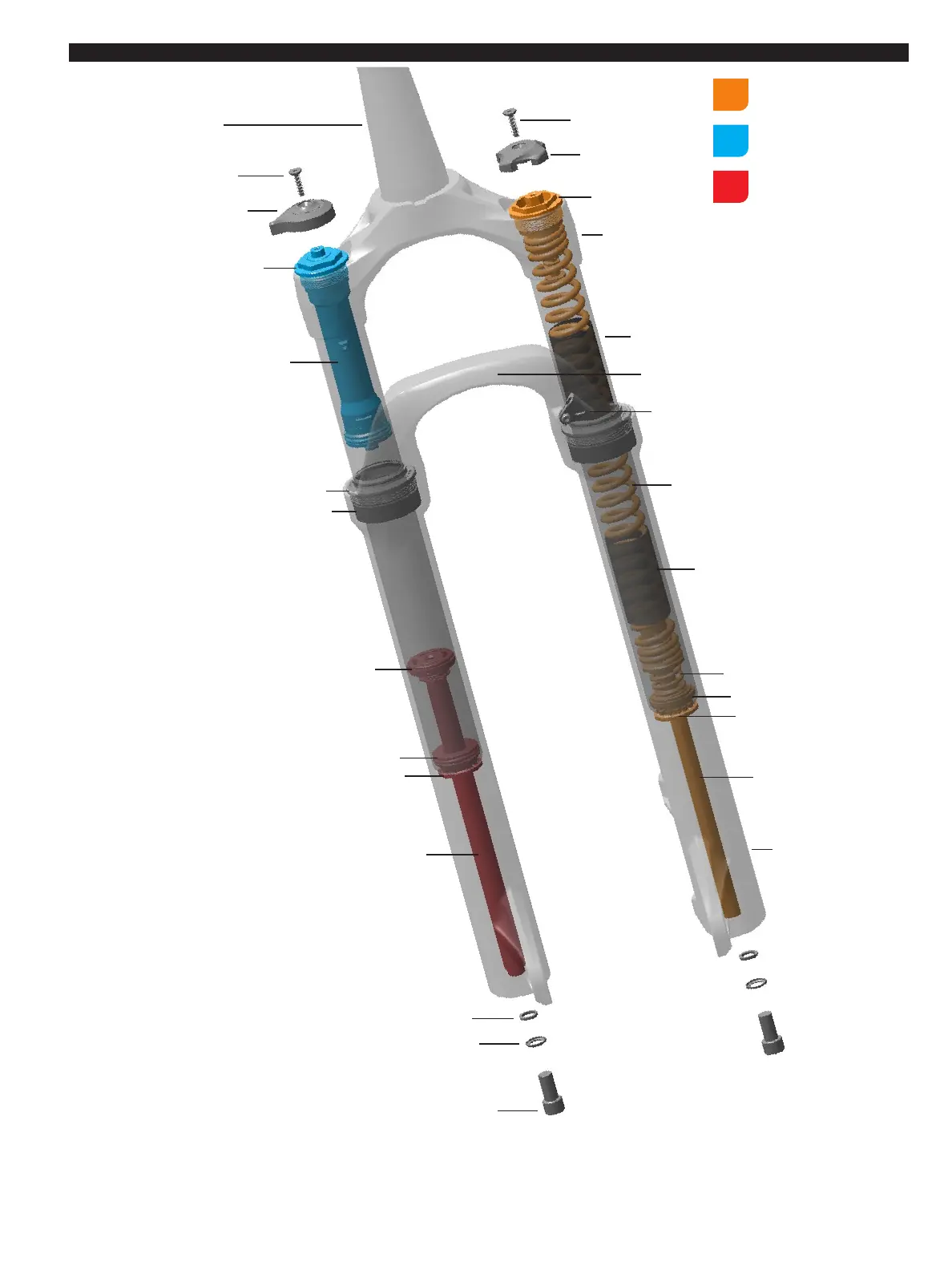

Exploded View - 2021 Judy TK - Coil
Exploded View - 2021 Judy TK - Coil
Retaining screw
Compression damper top cap
Compression damper
Dust wiper seal
Foam ring
Rebound damper piston
Rebound damper shaft
Rebound damper seal head
Retainer
Crush washer retainer
Bottom bolt
Upper tube
Coil spring
Coil spring isolator
Lower leg
Retainer
Coil spring shaft
Air Spring Assembly
Compression Damper
Assembly
Rebound Damper
Assembly
Brake hose guide
Crush washer
Crown
Negative spring
Compression adjuster knob
Steerer tube
Preload adjuster knob
Retaining screw
Spring top cap
Arch
Shaft guide
