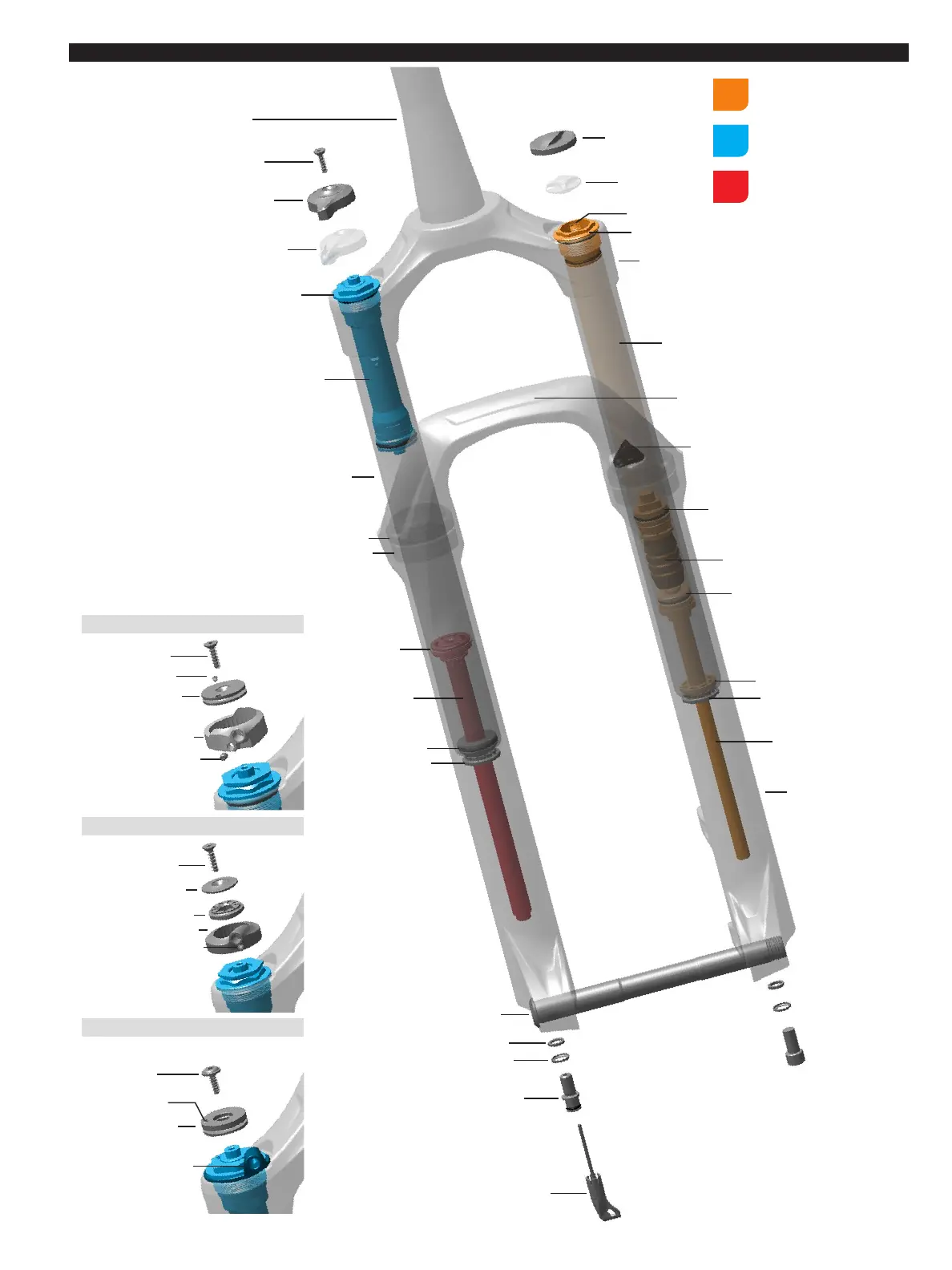

Exploded View - 2018-2021 Judy Silver TK - Solo Air
Exploded View - 2018-2021 Judy Silver TK - Solo Air
Retaining screw
Compression damper top cap
Compression damper
Dust wiper seal
Foam ring
Rebound
damper piston
Rebound
damper shaft
Rebound damper
seal head
Maxle Stealth
Crush washer
Crush washer retainer
Rebound adjuster knob
Steerer tube
Air valve
Air spring top cap
Air tube
Air spring piston
Top out bumper
Lower leg
Retainer
Shaft guide
Air spring shaft
Negative air seal head
Crown
Air Spring Assembly
Compression Damper
Assembly
Rebound Damper
Assembly
Brake hose guide
Bottom bolt
Retainer
Upper tube
Compression adjuster knob
(2018)
Compression adjuster knob
(2019-2021)
Air cap
(2019-2021)
Air cap (2018)
2020-2021 Judy Silver RL R
Retaining screw
Remote spool
Cable stop collar
Set screw
Set screw
2018 Judy Silver TK R
Retaining screw
Remote spool
Cable stop
Set screw
2019 Judy Silver TK R
Retaining screw
Upper remote spool
Cable stop collar
Set screw
Lower remote spool
Arch
