Air Spring Service - Judy Silver, 30 Silver, Recon Silver RL
Air Spring Service - Judy Silver, 30 Silver, Recon Silver RL

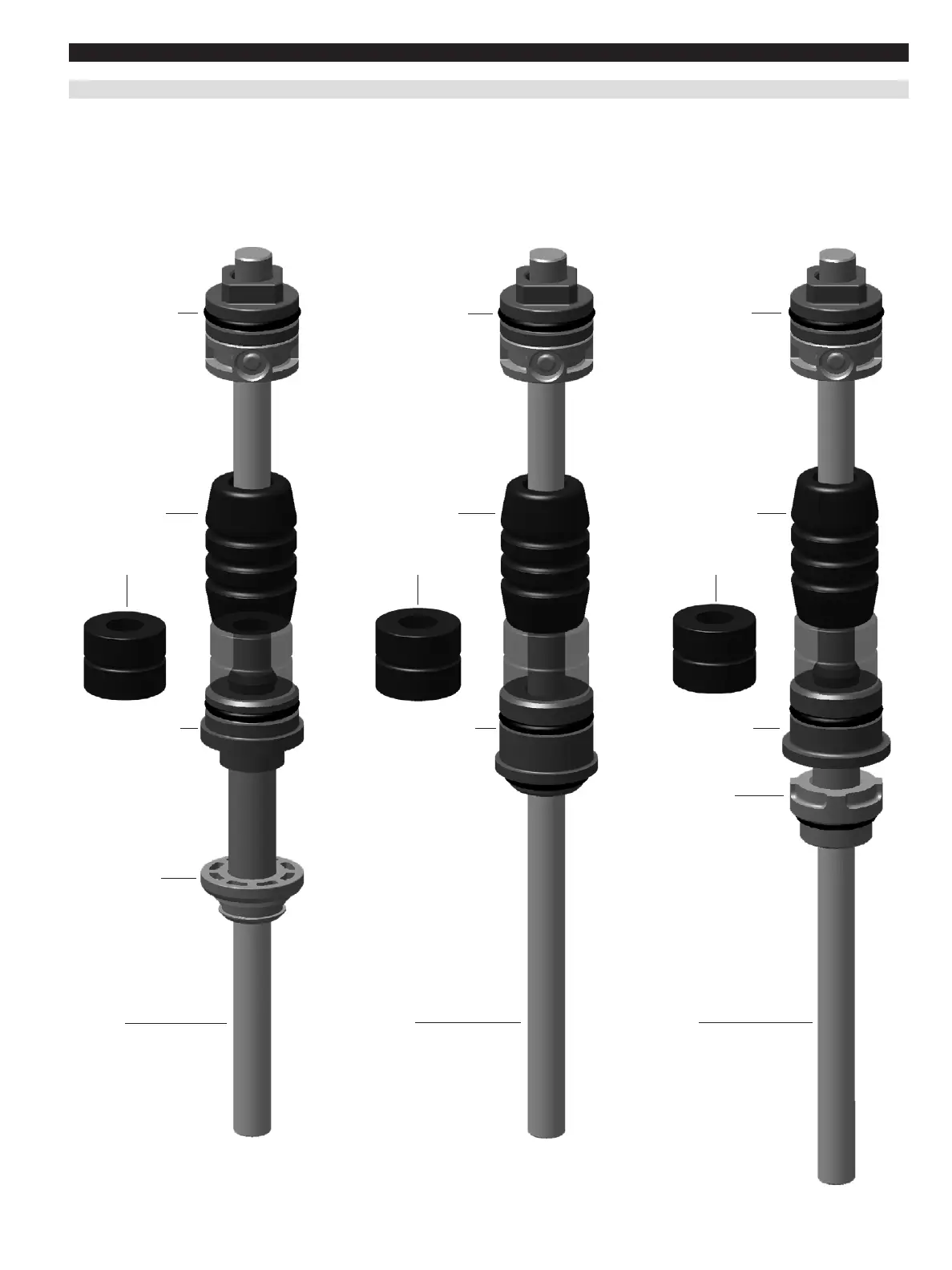

Exploded View
Recon Silver RL
2018-2021 - 27.5", 29" (140 mm - 80 mm)
2018-2019 - 27.5" Boost, 29" Boost (150 mm - 130 mm)
2020-2021 - 27.5" Boost, 29" Boost (150 mm - 80 mm)
Positive air piston
Top out bumper
Negative air
seal head
Air shaft guide
Air shaft
2018-2019 Recon RL
27.5" Boost, 29" Boost
(120 mm - 80 mm)
Positive air piston
All-Travel spacer
(optional)
Top out bumper
Negative air
seal head
Air shaft guide
Air shaft
2018-2021 Judy Silver
2018-2020 30 Silver
(120 mm - 80 mm)
Positive air piston
All-Travel spacer
(optional)
All-Travel spacer
(optional)
Air shaft
Negative air
seal head
Top out bumper
