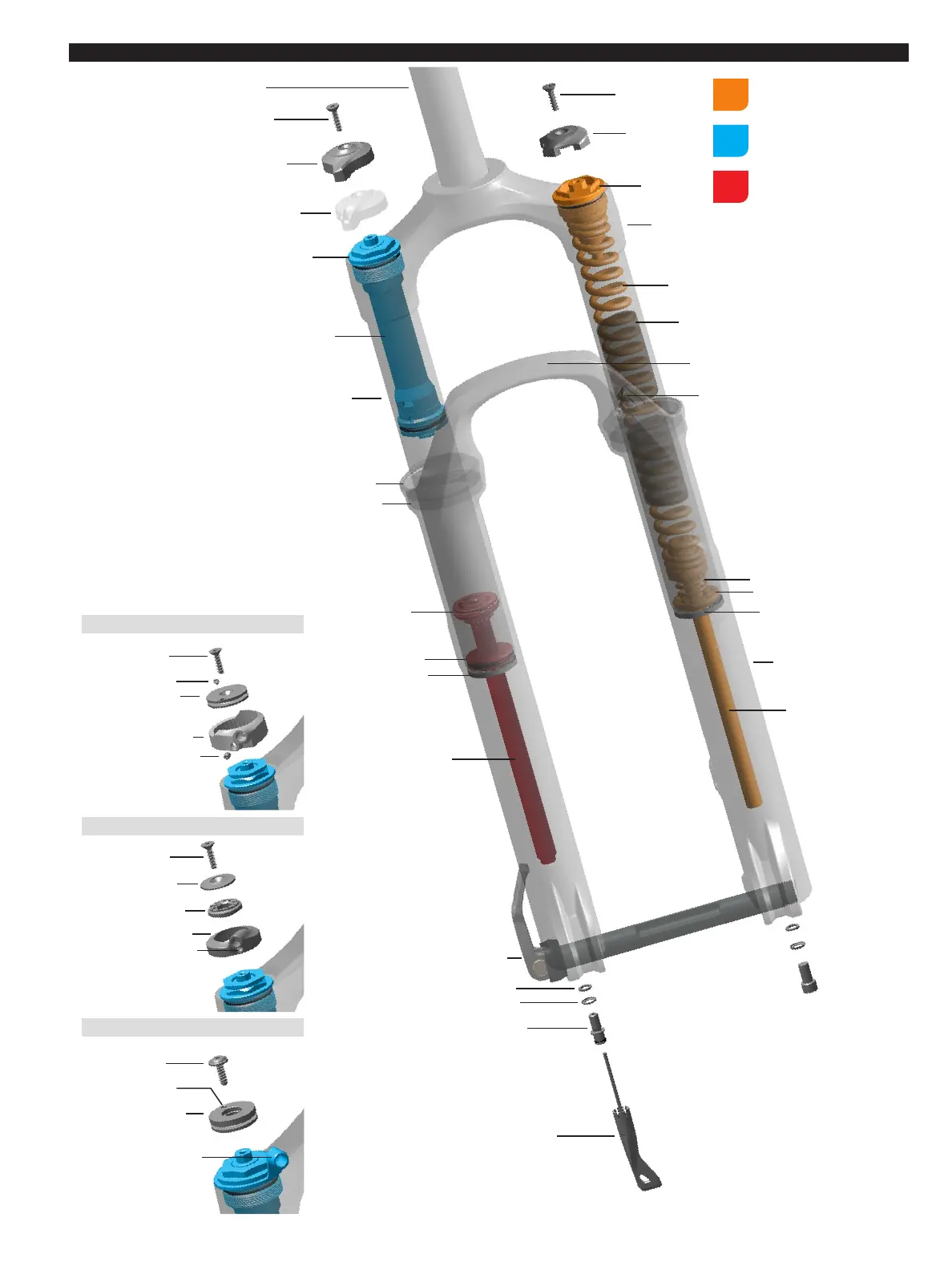

Exploded View - 2018-2020 Recon TK / 2021 Recon Silver TK - Coil
Exploded View - 2018-2020 Recon TK / 2021 Recon Silver TK - Coil
Retaining screw
Compression damper top cap
Compression damper
Dust wiper seal
Foam ring
Rebound damper
piston
Rebound damper shaft
Rebound damper
seal head
Maxle Lite
Crush washer
Bottom bolt
Rebound adjuster knob
Steerer tube
Retaining
screw
Top cap
Coil spring
Shaft guide
Negative spring
Retainer
Lower leg
Spring shaft
Crown
Preload
adjuster knob
Coil spring isolator
Air Spring Assembly
Compression Damper
Assembly
Rebound Damper
Assembly
Brake hose guide
Retainer
Crush washer retainer
Upper tube
Compression adjuster knob
(2018)
Compression adjuster knob
(2019-2021)
2018 Recon TK R
Retaining screw
Cable stop
Set screw
Remote spool
2019 Recon TK R
Retaining screw
Upper remote spool
Set screw
Lower remote spool
Cable stop collar
Set screw
2020-2021 Recon TK R
Retaining screw
Remote spool
Cable stop collar
Set screw
Arch
