Air Spring Installation - Gold
All-Travel: Refer to Air Spring Travel Change and Bottomless Tokens for
spacer configurations.

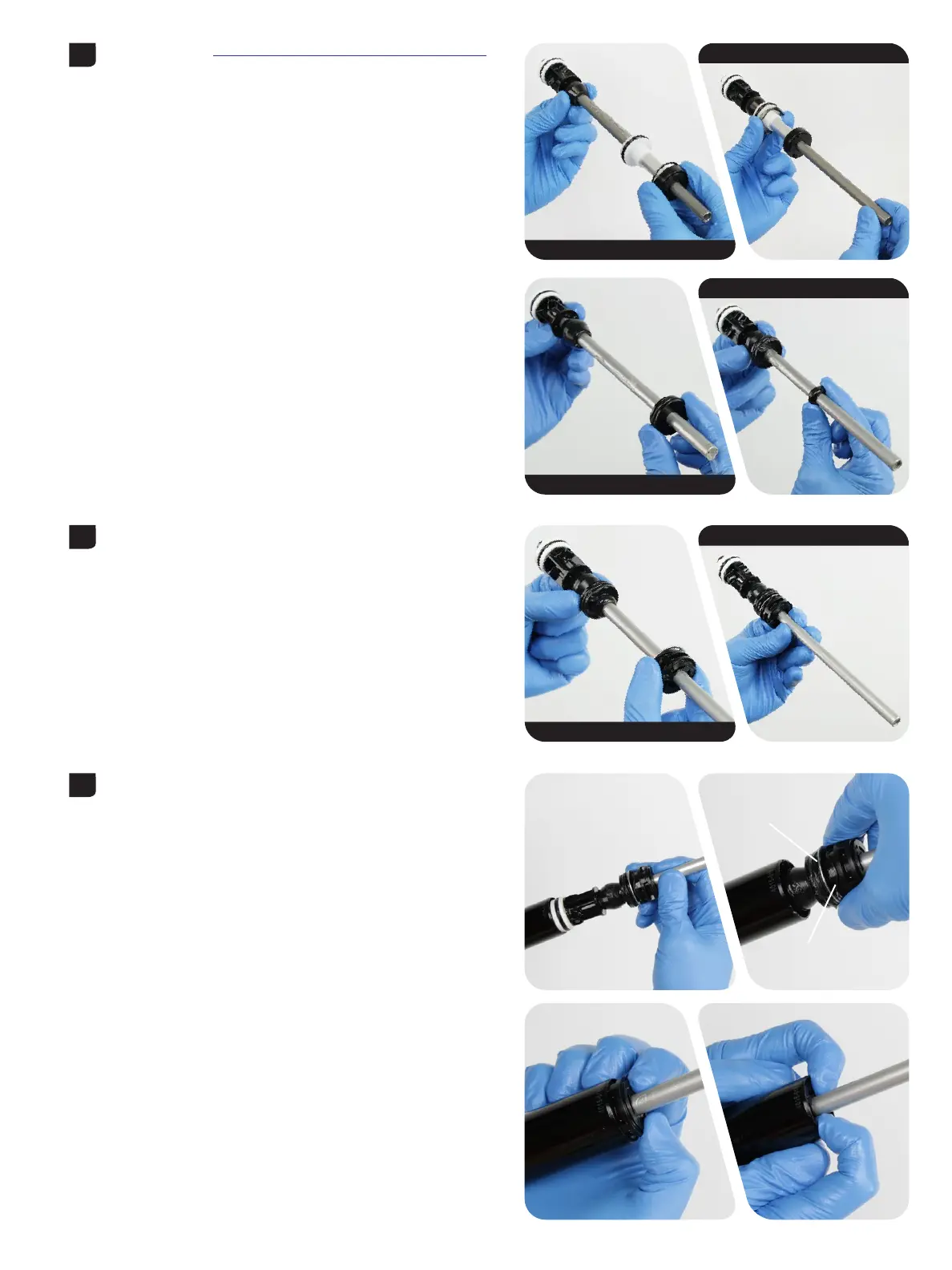

80 mm - 120 mm: Install the All-Travel spacer (optional) and seal head
base plate assembly onto the air shaft.
130 mm - 150 mm: Install the seal head, All-Travel spacer (optional),
and the seal head bumper.
130 mm - 150 mm: Install the retaining washer, a new wave spring, and
the base plate, in that order, onto the air shaft.
Slide all the parts to the air piston until they stop.
Insert the air spring assembly into the upper tube. Firmly push the air
piston into the upper tube.
Position the flat retaining washer (A) into the upper tube, followed by
the wavy washer (B).
Use your fingers to firmly press the seal head into the upper tube until
it stops.
This procedure is the same for all fork travel configurations.
