RangerSInstallationandtroubleshooting
49
Runningthe"ElectricalTest"
TheRanger4000Shasabuilt‐intestthatwillactivateeachstationinturn
forjustonesecondinordertocheckiftheyarerespondingcorrectly.The
stationsmustbeconnectedtothesolenoidsthatactivatevalvesinthe
landscape,andthetestcantellwhetherthestationsandsolenoidsare
workingcorrectlyinconjunction.

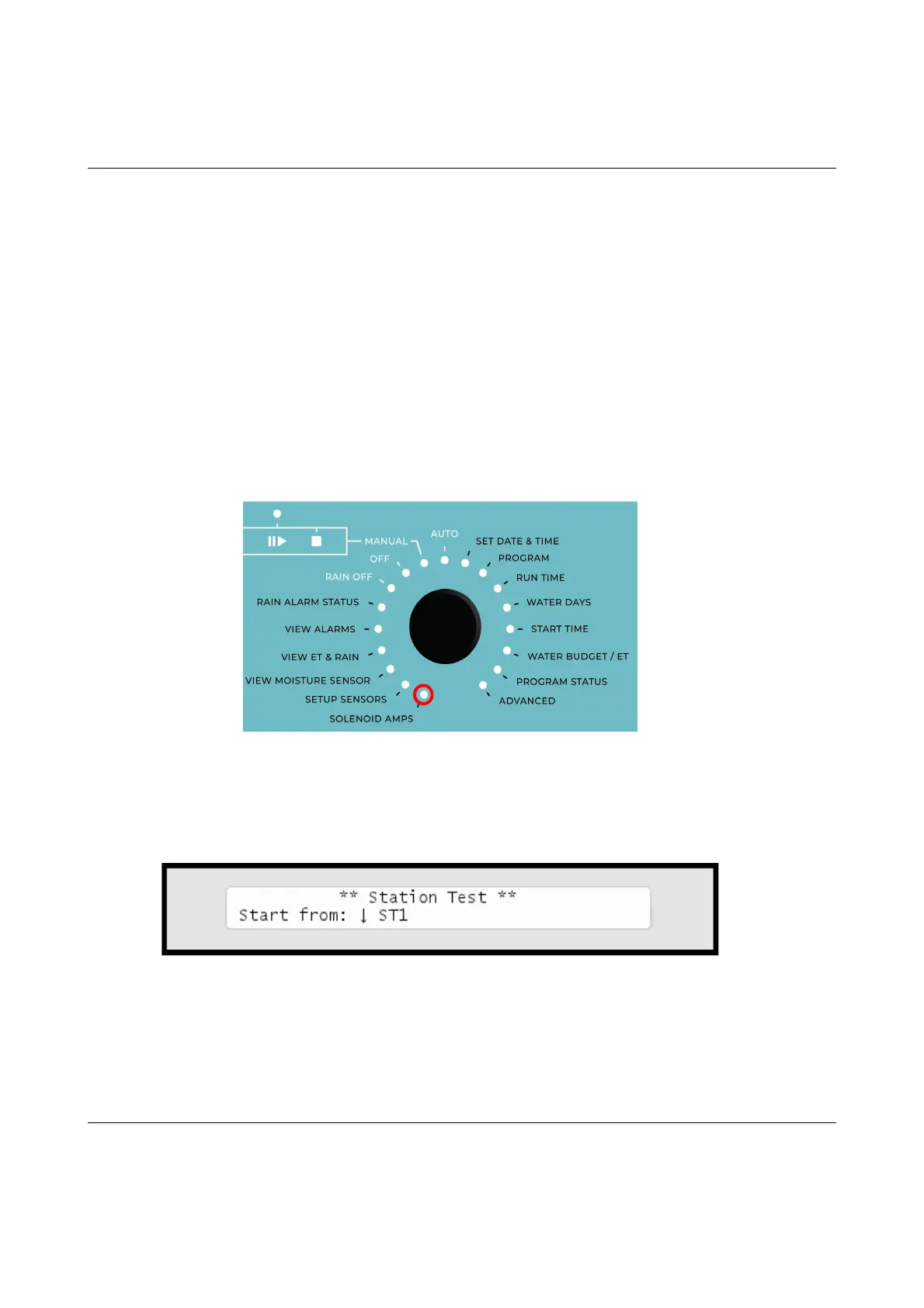

1 Turnthedialto SOLENOID AMPS :
Nowthedisplaywilllooklikethis:
2Usetheitemselectorstoselectastationandpushthe ENTER button
tostartthetest.
