VENTILATION, HEATING, AND AIR CONDITIONING SYSTEM
9-3
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

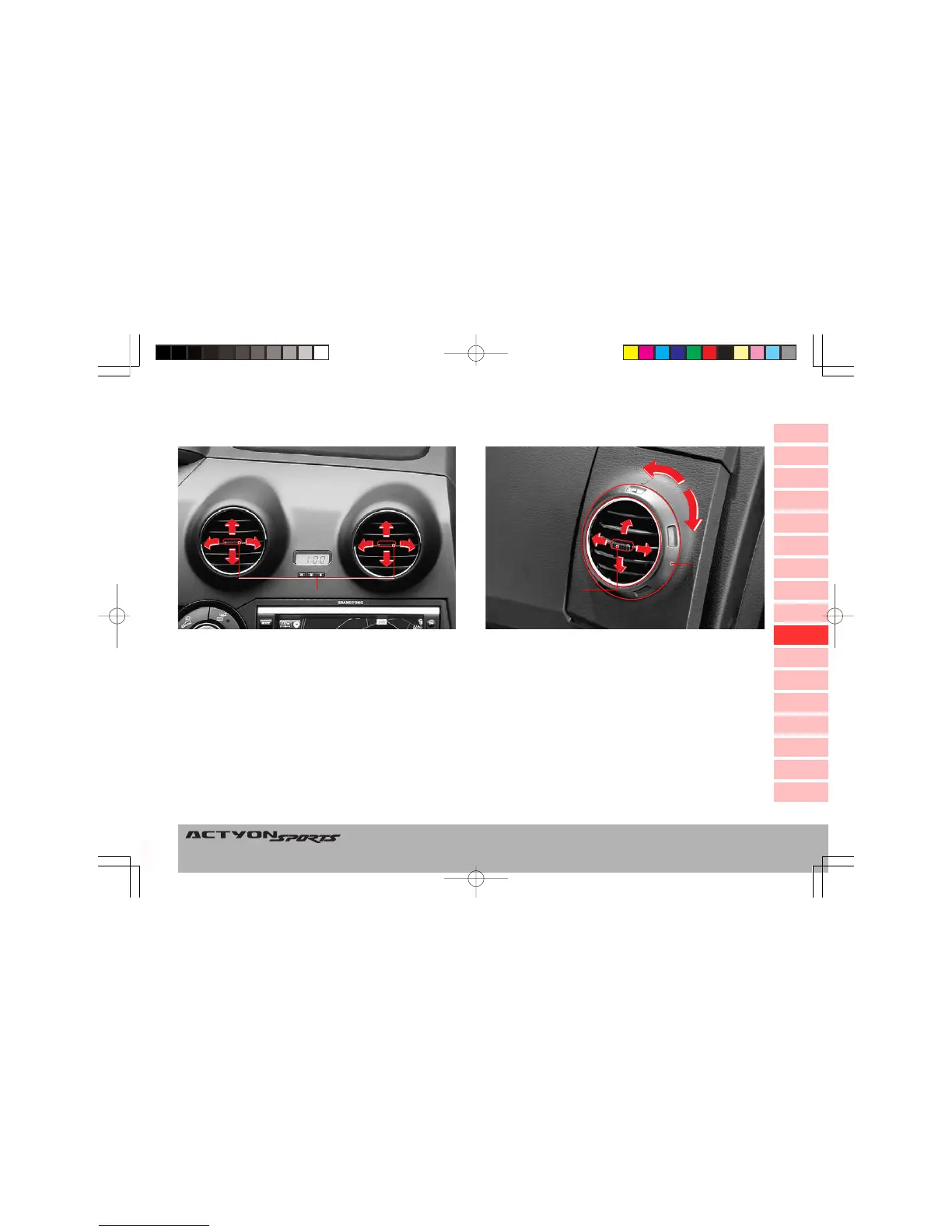

Front Center Vent Front Side Vent
You can adjust the direction of the airflow by moving the
knob horizontally or vertically.
You can adjust the direction of the airflow by moving the air-
flow direction control lever on the air outlet.
You can adjust the volume of the airflow by rotating the air-
flow volume control dial clockwise or counterclockwise.
Airflow Direction
Control Lever
Airflow Direction Control Lever
Open
Airflow
Volume
Control Dial
Closed
