FUEL FILTER AND PRIMING PUMP (Without Additional Water Separator)
Priming Pump Operating Conditions
1. when completely consumed the fuel
2. after draining the water from the fuel filter
3. after replacing the fuel filter
Before starting the engine, perform the pump-
ing operation of the priming pump until it be-
comes rigid to fill up the fuel pump with fuel.
Water Separating Function
If water in fuel gets into the engine and fuel system, it may cause seri-
ous damage to the fuel system. The fuel filter provides the water sepa-
rating function to block the inflow of water. When the water level inside
the water separator in the fuel filter exceeds a certain level, the warning
light comes on and the buzzer sounds. If it occurs, immediately drain
water from the fuel filter. For draining procedures, refer to “How to drain
the water from fuel filter” section in this manual.
• Change the fuel filter at every 30,000 km (EU)
or 25,000 km (General) of driving.
• Drain water from the fuel filter whenever replac-
ing the engine oil.
• After changing the fuel filter, perform the pump-
ing operation of the priming pump until it be-
comes rigid.

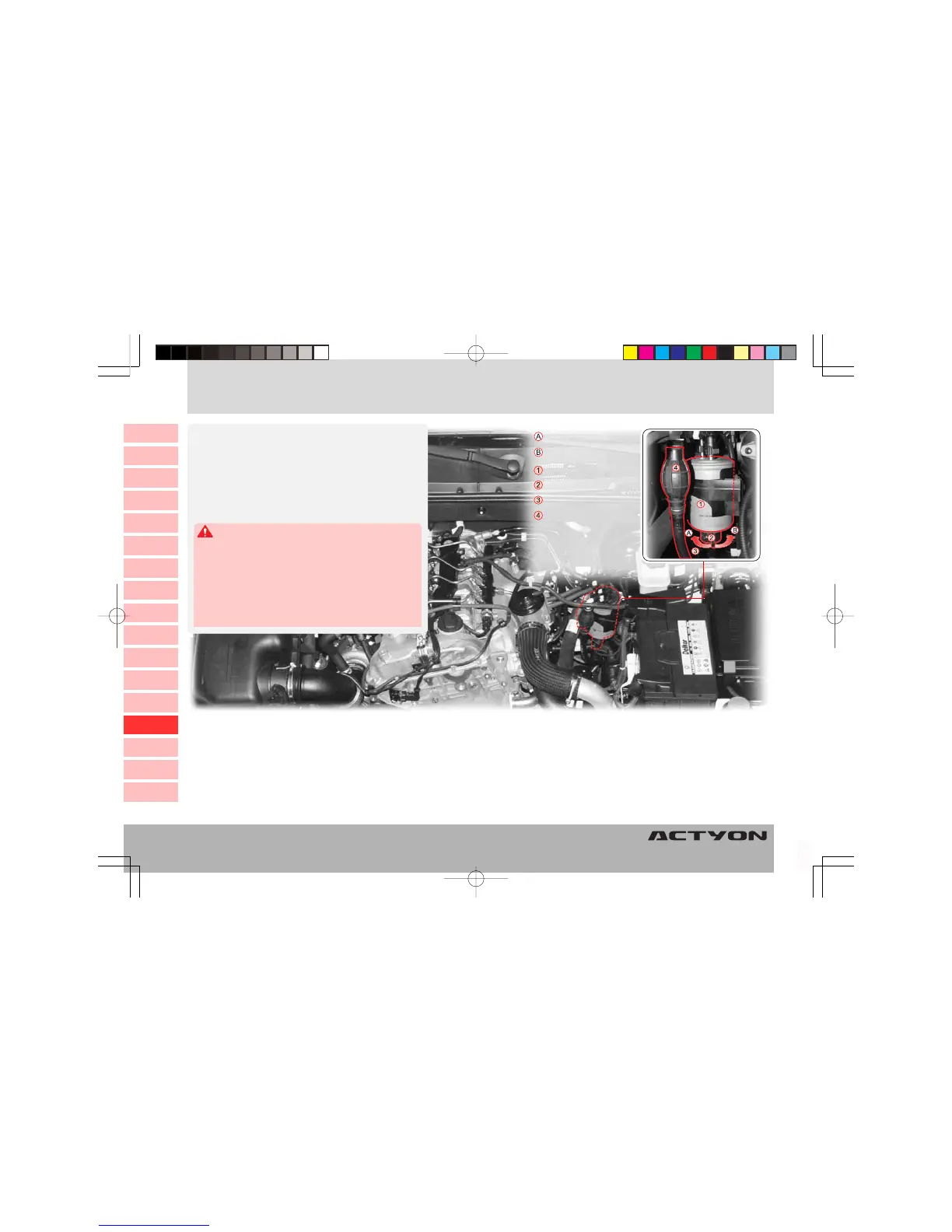

Fuel filter
Fuel filter
Water drain plug
Connector
Priming pump
Plug opening direction
Plug closing direction
• Change the fuel filter according to the specified ser-
vice interval.
• Drain water from the fuel filter whenever changing
the engine oil.
• After changing the fuel filter or draining the water,
perform the pumping operation of priming the pump
until it becomes rigid.
