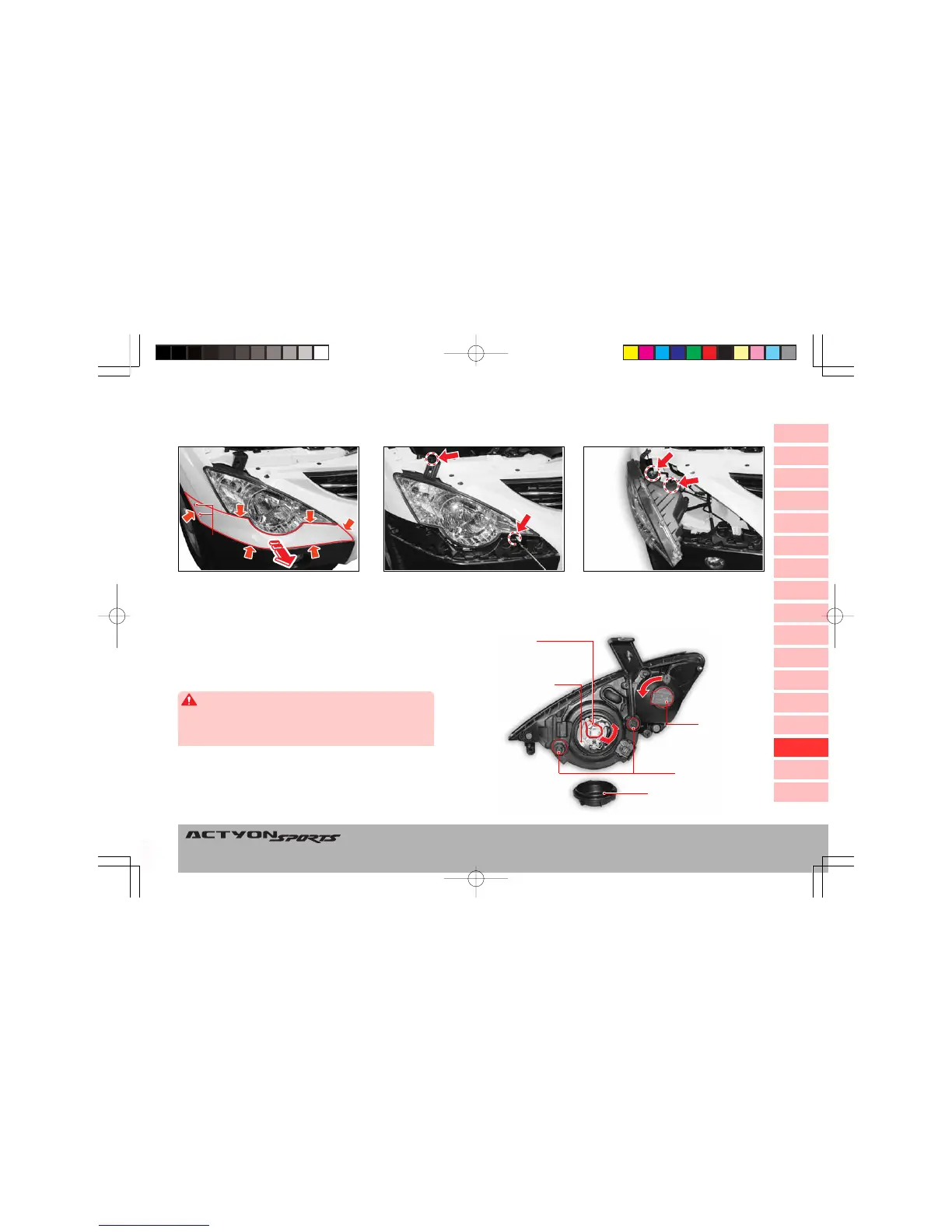

REMOVING HEADLAMP HOUSING
1. Disconnect the negative cable on the
battery.
2. Remove two mounting screws on
the headlamp lower cover at wheel
house side and carefully sepatate
lower cover.
4. Disconnect the two headlamp con-
nectors and remove the headlamp
housing.
3. Unscrew the bolt at the bottom of the
headlamp.
For safe driving, do not adjust the headlamp aiming by yourself.
It should be done by a qualified technician in a Ssangyong
Dealer or Ssangyong Authorized Service Center.
WARNING
Cap
Turn signal
lamp
Aiming adjusting
screw
Mounting
screw
Headlamp
(High beam/
Low beam)
Front position
lamp
