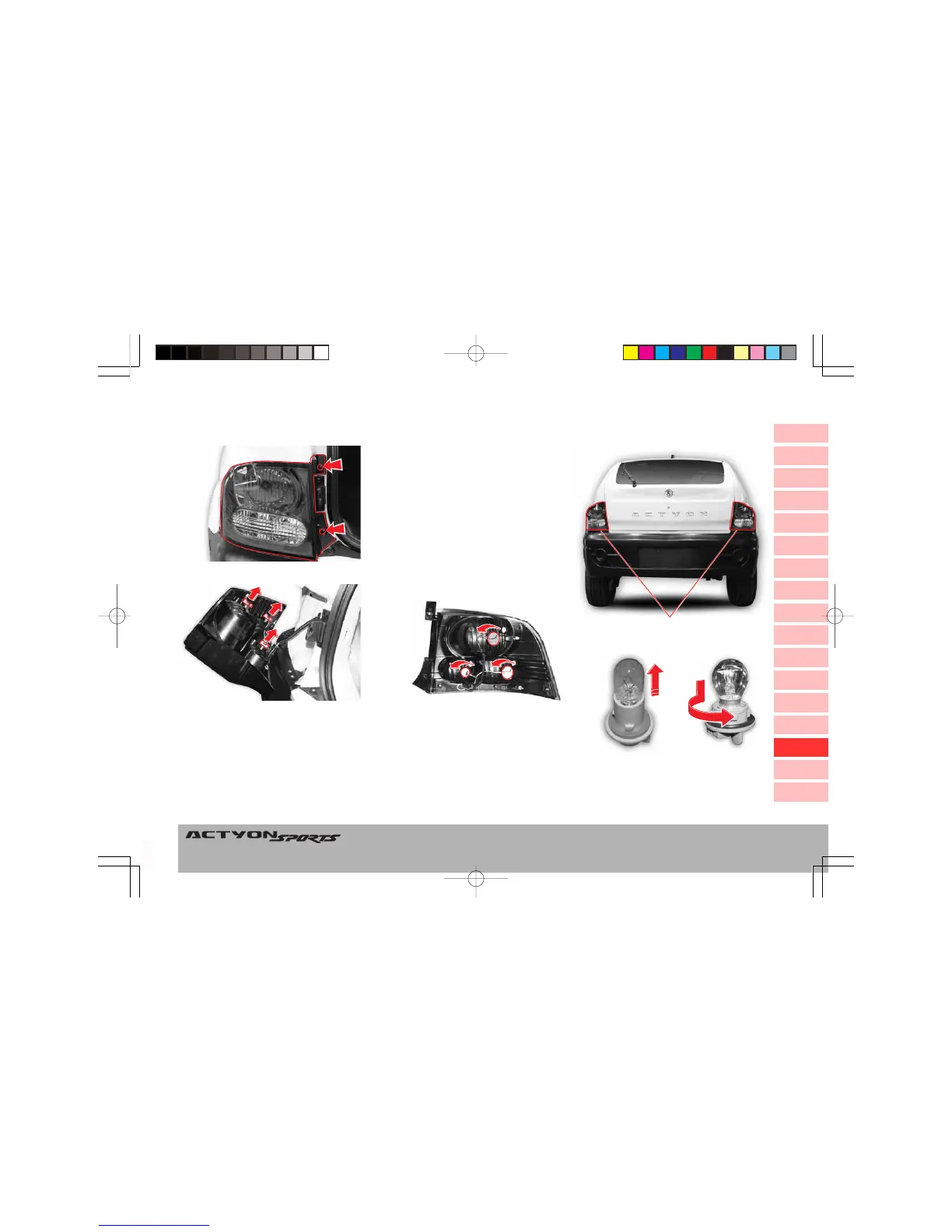

REAR COMBINATION LAMP
1. Remove the ignition key from the
key cylinder.
2. Disconnect the two mounting bolts
from the rear combination lamp.
Rear combination lamp
Back-up lamp Stop (tail) lamp /
Turn signal lamp
6. Remove the back-up lamp bulb while
pulling it/remove the turn signal lamp
bulb while pushing and turning it.
7. Replace it with a new one.
8. Install in the reverse order of removal.
3. Remove the rear combination lamp
from the body.
4. Disconnect the connector of the rear
combination lamp.
5. Turn the bulb housing to remove in the
state that rear comb-lamp is disas-
sembled from body.
