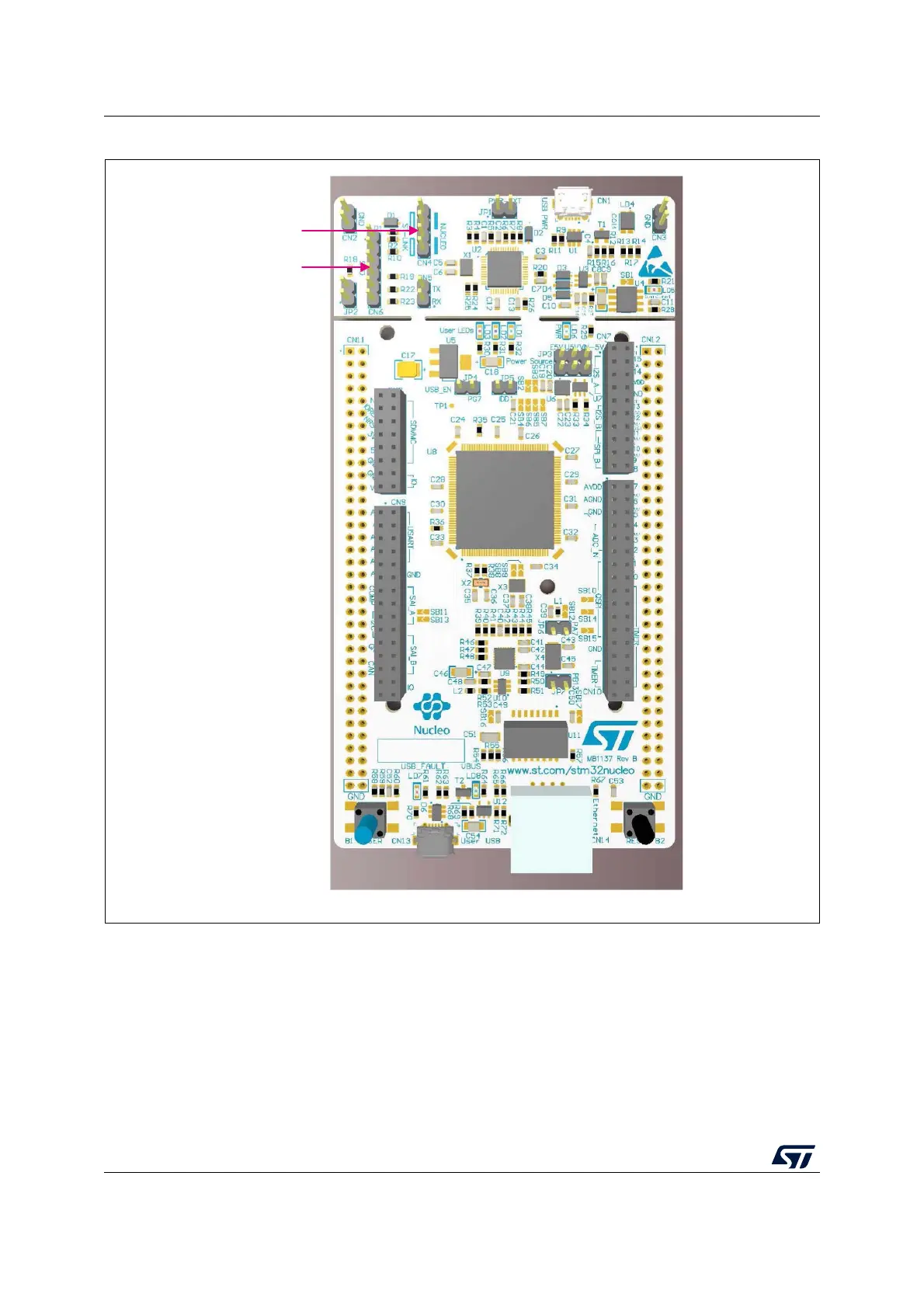

Figure 10. Using ST-LINK/V2-1 to program the STM32 on an external application
6.4 Power supply and power selection
The power supply is provided either by the host PC through the USB cable or by an external
source: V
IN
(7 V-12 V), E5V (5 V) or +3.3 V power supply pins on CN8 or CN11. In case V
IN
,
E5V or +3.3
V is used to power the Nucleo-144 board, this power source must comply with
the standard EN-60950-1: 2006+A11/2009 and must be Safety Extra Low Voltage (SELV)
with limited power capability.
In case the power supply is +3.3 V, the ST-LINK is not powered and cannot be used.
MSv40066V3
CN4 jumpers OFF
SWD connector
(CN6)

ST STM32 Specifications

General

Series	STM32
Category	Microcontrollers
Core	ARM Cortex-M0, Cortex-M0+, Cortex-M3, Cortex-M4, Cortex-M7, Cortex-M33
Clock Speed	Up to 480 MHz
GPIO Pins	Up to 144
Communication Interfaces	I2C, SPI, USART, USB, CAN, Ethernet
Package Types	LQFP, BGA, WLCSP
ADC Resolution	12-bit, 16-bit (varies by series)
DAC Resolution	12-bit (varies by series)
Operating Temperature	-40°C to +85°C or +105°C
