AN2752
Setting up the STM8 development envi
ronment
Doc ID 14651 Rev
3
35/42
10.3.2
Selecting the correct debug instrument
In the e
x
ample below
, the
Rlink tool is used
for communicating via th
e SWIM interf
ace with
the on-boa
rd deb
ug module of the STM8.
The Rlink tool can be selected from the ‘Debu
g Instru
ment Selection’ list in the ‘Debug
Instrument Settings’ dialog (see
Figure
24
).

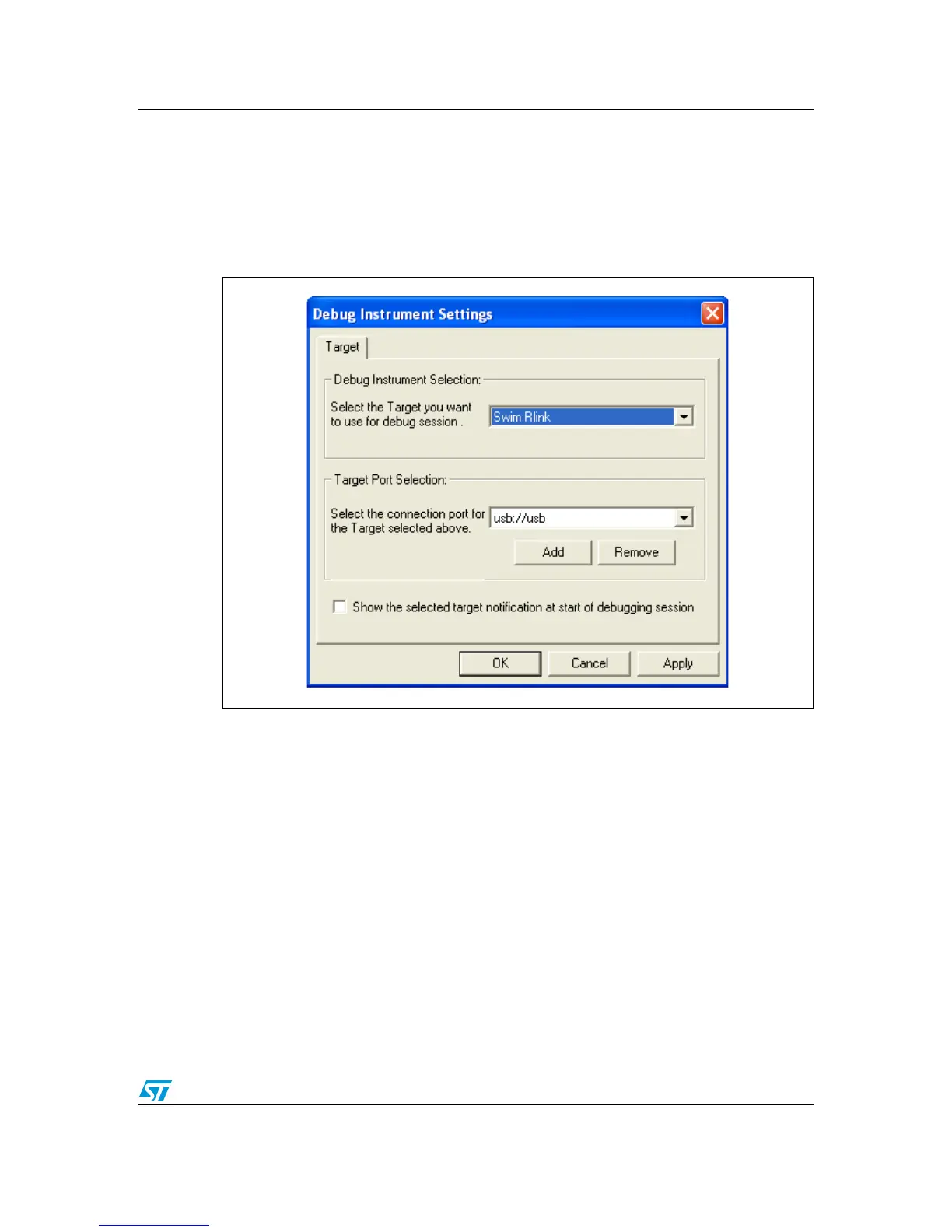

Figure 24.
STVD: Select
ing the deb
ug instrument
34
36
